Fuse and relay box, as-built configuration - GF54.15-P-0800CA
MODEL 207.3/4

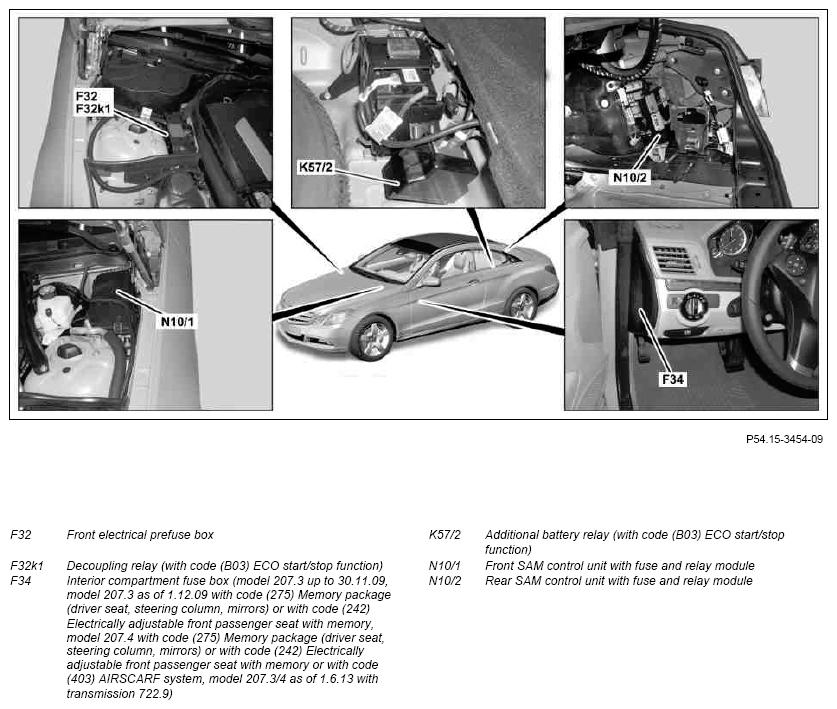

Fig 1: Identifying Front Electrical Pre-Fuse Box, Additional Battery Relay, Decoupling Relay, Interior Compartment Fuse Box, Front And Rear SAM Control Unit
Illustrated on model 207.3
| Fuse assignment of front prefuse box | F32 | GF54.15-P-1256-07CA | |
| Fuse assignment of fuse box in left of cockpit | MODEL 207.3 as of 12/1/09 with CODE 242 (Electrically adjustable front passenger seat with memory) MODEL 207.3 as of 12/1/09 with CODE 275 (Memory package (driver seat, steering column, mirrors)) MODEL 207.3 up to 11/30/09MODEL 207.3/4 with TRANSMISSION 722.9 as of model year 2014MODEL 207.4 with CODE 242 (Electrically adjustable front passenger seat with memory) MODEL 207.4 with CODE 275 (Memory package (driver seat, steering column, mirrors)) MODEL 207.4 with CODE 403 (Airscarf system) F34 |
GF54.15-P-1256-13CA | |
| Fuse assignment of fuse and relay box in left engine compartment | N10/1 | GF54.15-P-1256-03CA | |
| Relay assignment of fuse and relay box in left side of engine compartment | N10/1 | GF54.15-P-1257-03CA | |
| Fuse assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1256-06CA | |
| Relay assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1257-04CA |
