Fuse assignment of front prefuse box - GF54.15-P-1256-07CA

MODEL 207.3/4

Without code (B03) ECO start/stop function

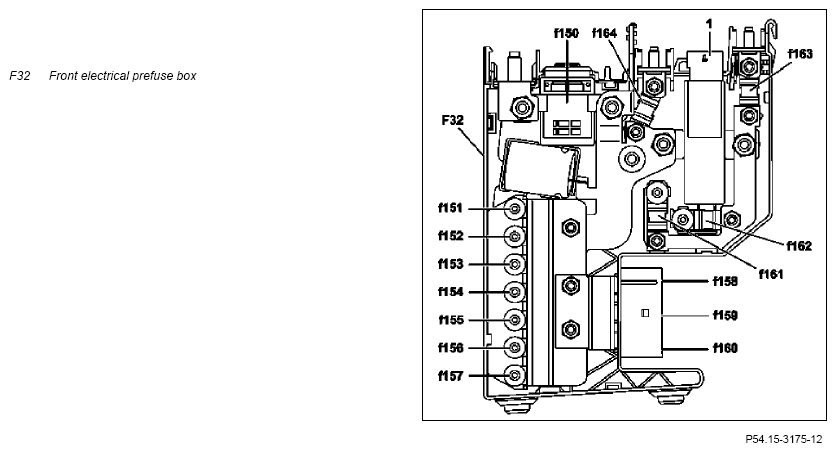

Fig 1: Front Electrical Pre-Fuse Box - Model 207.3/4 Without Code (B03) ECO Start/Stop Function

Courtesy of MERCEDES-BENZ USA

Fuse Identification	Circuit	Line ID (line fused)	Fused function	Rating in amperes (A)
f150	30	35.0 BK	Power supply for front prefuse box (F32)	400
f151	30	10.0 RD	Internal combustion engine and air conditioning fan motor with integrated control (M4/7)	100
f152	30	16.0 RD	Valid for front battery: Front SAM control module with fuse and relay module (N10/1)	150
f153	30	-	Reserve	-
f154	30z	6.0 RD	Front SAM control module with fuse and relay module (N10/1)	60
f155	30	-	Reserve	-
f156	30	16.0 RD	Valid for diesel engine: PTC heater booster (R22/3)	150
f157	30	12.0 RD	Electrical power steering control unit (N68)	100
f158	30	4.0 RD	Blower regulator (A32n1)	50
f159	30	-	Reserve	-
f160	30	6.0 RD	Valid for code (275) Memory package (driver seat, steering column, mirrors) or code (242) Electrically adjustable front passenger seat with memory: Interior compartment fuse box (F34)	60
f161	30g	16.0 RDWH	Front SAM control module with fuse and relay module (N10/1)	100
f162	30	-	Reserve	-
f163	30g	16.0 RD	Rear SAM control unit with fuse and relay module (N10/2)	150
f164	30	10.0 RD	Rear SAM control unit with fuse and relay module (N10/2)	100
		10.0 RD	Valid for code (401) front deluxe seats, incl. seat heating and seat ventilation: Interior compartment fuse box (F34)

With code (B03) ECO Start-stop function

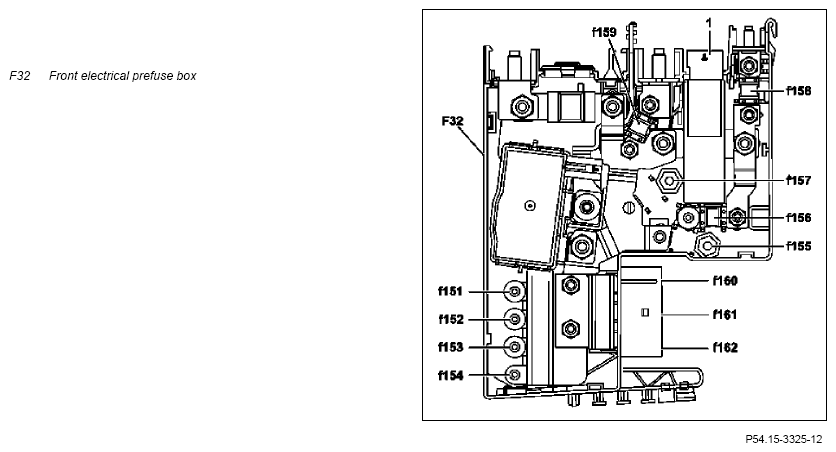

Fig 2: Front Electrical Pre-Fuse Box - Model 207.3/4 With Code (B03) ECO Start-Stop Function

Courtesy of MERCEDES-BENZ USA

Fuse Identification	Circuit	Line ID (line fused)	Fused function	Rating in amperes (A)
f150	30	35.0 BK	Power supply for front prefuse box (F32)	200
f151	30	10.0 RD	Internal combustion engine and air conditioning fan motor with integrated control (M4/7)	100
f152	30	16.0 RD	Valid for front battery: Front SAM control module with fuse and relay module (N10/1)	150
f153	30	6.0 RD	Front SAM control module with fuse and relay module (N10/1)	60
f154	30z	16.0 RD	Valid for diesel engine: PTC heater booster (R22/3)	150
f155	30	-	Reserve	-
f156	30g	16.0 RDWH	Front SAM control module with fuse and relay module (N10/1)	100
f157	30	12.0 RD	Electrical power steering control unit (N68)	100
f158	30g	16.0 RD	Rear SAM control unit with fuse and relay module (N10/2)	150
f159	30	25.0 RD	Additional battery relay (K57/2) Rear SAM control unit with fuse and relay module circuit 30 fuse (F97)	200
f160	30	4.0 RD	Blower regulator (A32n1)	50
f161	30g	-	Reserve	-
f162	30	6.0 RD	Valid for code (275) Memory package (driver seat, steering column, mirrors) or code (242) Electrically adjustable front passenger seat with memory: Interior compartment fuse box (F34)	60
