Windshield wiper system, function - GF82.30-P-0001FL
MODEL 212

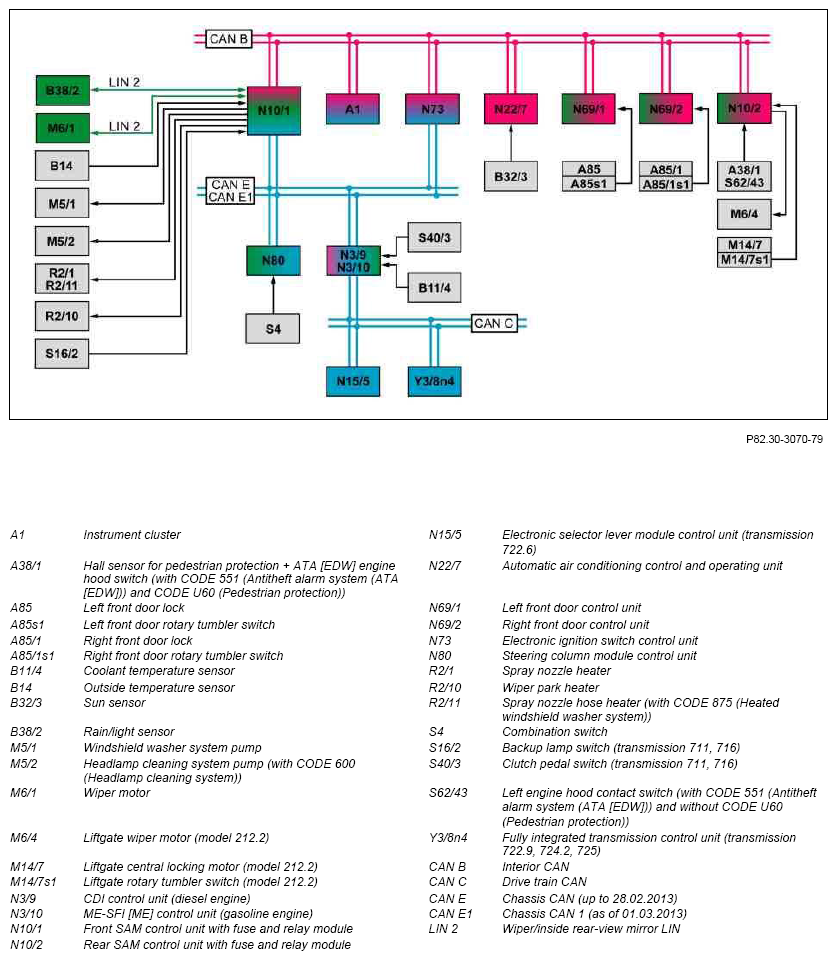

Windshield wiper system, general
The windshield wiper system controls the wiping and washing of the windshield and, on model 212.2, the rear window.
The windshield wiper system comprises the following subfunctions, which are described in separate documents:
- Windshield wiper, function
- Windshield washer, function
- Rear window windshield wiper system function (model 212.2)
- Heating wiper support, function
- Spray nozzles/spray nozzle hose heater function
- Headlamp cleaning system function (with CODE 600 (Headlamp cleaning system))
| Windshield wiper, function | GF82.30-P-3004FL | ||
| Windshield washer, function | GF82.35-P-3002FL | ||
| Rear window wiper system, function | MODEL 212.2 | GF82.30-P-2400FL | |
| Heating wiper support, function | GF82.30-P-2003FL | ||
| Washer nozzle/washer nozzle hose heater, function | GF82.35-P-3003FL | ||
| Headlamp cleaning system, function | MODEL 212 with CODE 600 (Headlamp cleaning system) |
GF82.15-P-3000FL |
