Retrofit support for navigation box - AN82.85-P-0020EC

MODEL 207.3##/4## 1# as of 6/1/12 with CODE 510 (Audio 20 with CD changer) without CODE 498 (Japanese version) without CODE 830 (China version)

MODEL 207.3##/4## 1# as of 6/1/12 with CODE 523 (Audio 20 CD radio) without CODE 498 (Japanese version) without CODE 830 (China version)

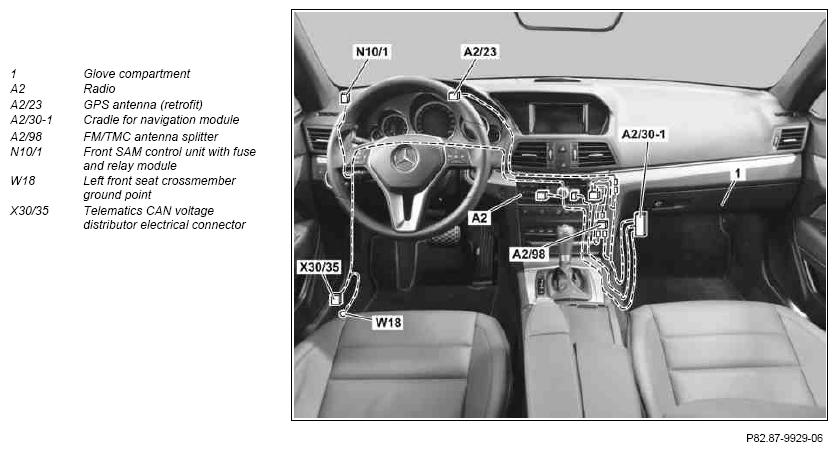

Fig 1: Identifying Cradle For Navigation Module And Radio

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove radio (A2)
			AR82.60-P-7502EW
2	Remove glove box (1)
			AR68.10-P-1400EC
3	Remove instrument cluster
			AR54.30-P-6015EZ
4	Remove driver's side floor covering	Only fold floor covering toward rear and press to one side.
5	Remove front SAM control unit with fuse and relay module (N10/1) and place to one side with electrical connectors attached
			AR54.21-P-1260CW
	Install
6	Install GPS antenna (retrofit) (A2/23)		AN82.85-P-0020-02EC
7	Retrofit FM/TMC antenna splitter		AN82.85-P-0020-03EC
		Self-adhesive velcro fastener	*BR00.45-Z-1084-02A
8	Prepare antenna line for retrofit		AN82.85-P-0020-04EC
9	Retrofit antenna line		AN82.85-P-0020-05EC
10	Retrofit low voltage differential signal (LVDS) wiring harness		AN82.85-P-0020-07EC
11	Retrofit power supply wiring harness		AN82.85-P-0020-06EC
		Wiring harness repair kit, basic	Figure
		New passenger car wiring harness repair kit	Figure
12	Retrofit cradle for navigation module (A2/30-1) in glove box		AN82.85-P-0020-01EC
13	Install remaining parts
14	Insert navigation module into cradle for navigation module (A2/30-1)	The release pin for removing the navigation module must be provided to the customer.
15	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Add:  Code (508) Navigation box preinstallation Code (509) Navigation box
16	Document retrofitted equipment through VeDoc	Attach note "Navigation box mount retrofitted as per AN82.85-P-0020EC " under field organization texts to design group 82.
17	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
18	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding with XENTRY using the software calibration number (SCN) must be carried out for the following control units: "Audio 20" "Instrument cluster"
19	Disconnect STAR DIAGNOSIS
20	Perform function test	See Owner's Manual.

Fig 2: Identifying Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
