Remove/install instrument cluster - AR54.30-P-6015EZ

MODEL 207

			AH54.00-P-0001-01A
			OV00.01-P-1901-07A
1	Temporarily store basic data of instrument cluster (A1) in STAR DIAGNOSIS	When replacing the instrument cluster (A1).
		Transfer the cached basic data to the new instrument cluster (A1).
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

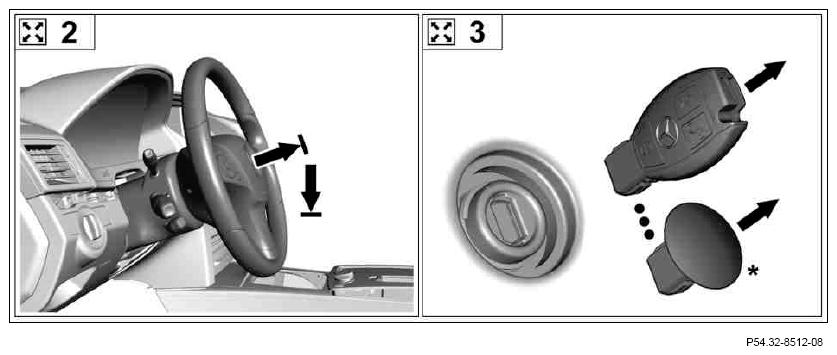

Fig 1: Identifying Instrument Cluster Remove/Install Components (1 Of 8)

Courtesy of MERCEDES-BENZ USA

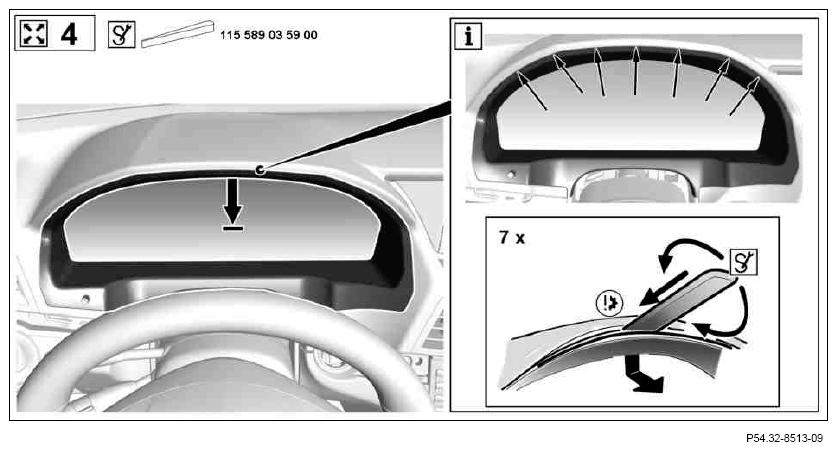

Fig 2: Identifying Instrument Cluster Remove/Install Components (2 Of 8)

Courtesy of MERCEDES-BENZ USA

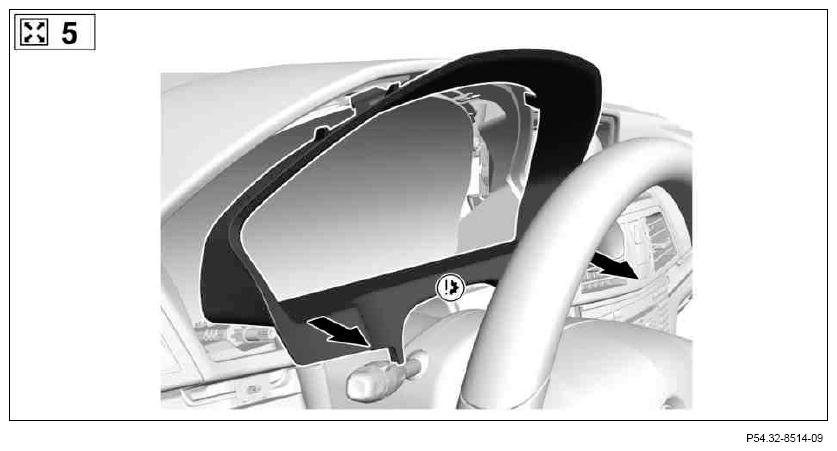

Fig 3: Identifying Instrument Cluster Remove/Install Components (3 Of 8)

Courtesy of MERCEDES-BENZ USA

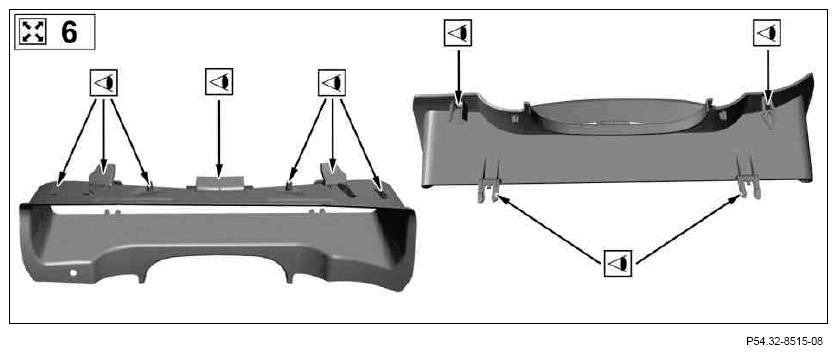

Fig 4: Identifying Instrument Cluster Remove/Install Components (4 Of 8)

Courtesy of MERCEDES-BENZ USA

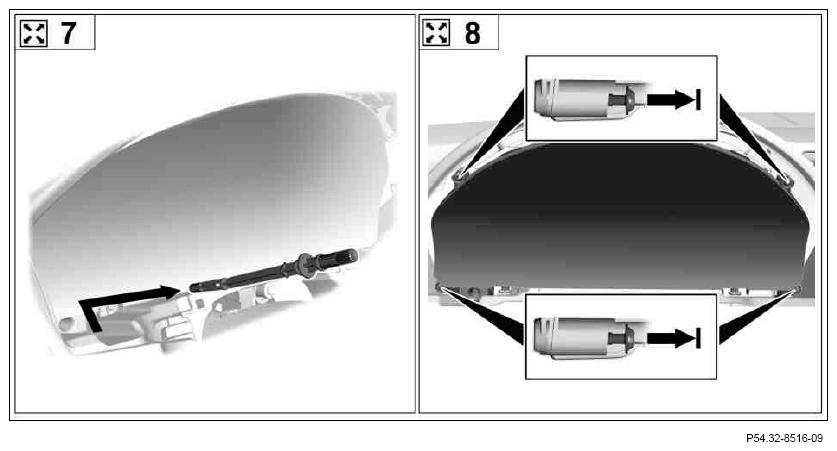

Fig 5: Identifying Instrument Cluster Remove/Install Components (5 Of 8)

Courtesy of MERCEDES-BENZ USA

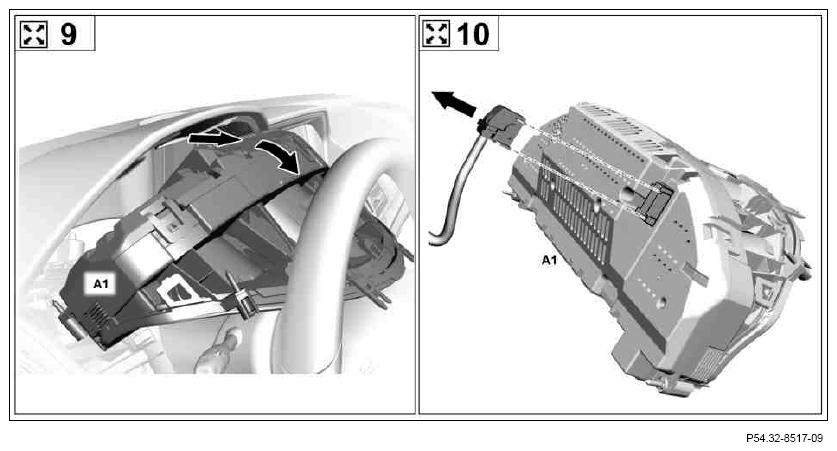

Fig 6: Identifying Instrument Cluster Remove/Install Components (6 Of 8)

Courtesy of MERCEDES-BENZ USA

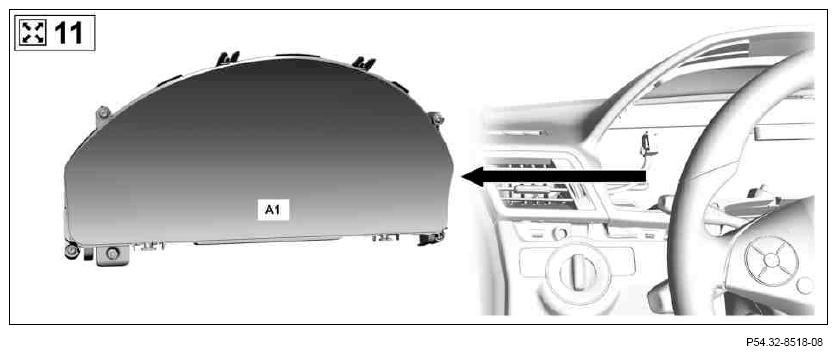

Fig 7: Identifying Instrument Cluster Remove/Install Components (7 Of 8)

Courtesy of MERCEDES-BENZ USA

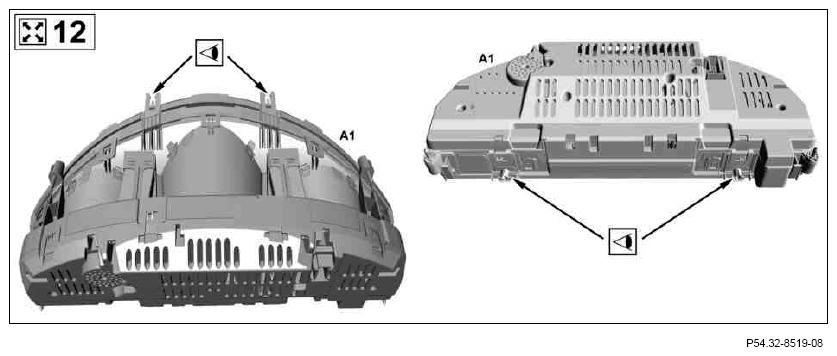

Fig 8: Identifying Instrument Cluster Remove/Install Components (8 Of 8)

Courtesy of MERCEDES-BENZ USA

12 to 1
