Mobile phone system, function - GF82.70-P-0007CAA

MODEL 207 as of 7/1/11 up to 3/1/15 up to model year 2016 with CODE 512 (COMAND APS with DVD changer)

MODEL 207 as of 7/1/11 up to 3/1/15 up to model year 2016 with CODE 526 (COMAND with single DVD drive (without navigation))

MODEL 207 as of 7/1/11 up to 3/1/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 207 as of 7/1/11 up to 8/31/14 with CODE 528 (COMAND with DVD changer) 207 up to 3/1/15 as of model year 2013 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer)

MODEL 207 up to 3/1/15 as of model year 2013 up to model year 2016 with CODE 523 (Audio 20 CD)

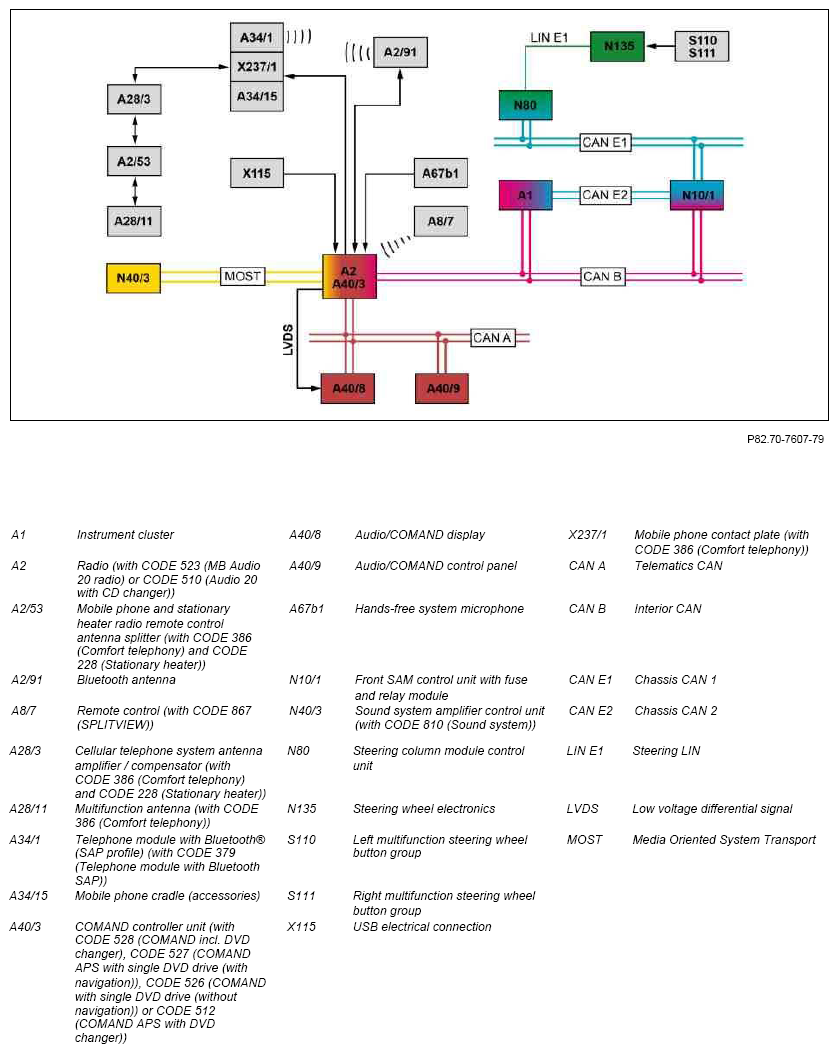

Shown on model 207 as of 10.05.2013

Fig 1: Mobile Phone System Block Diagram - Shown On Model 207
G10081970Courtesy of MERCEDES-BENZ USA

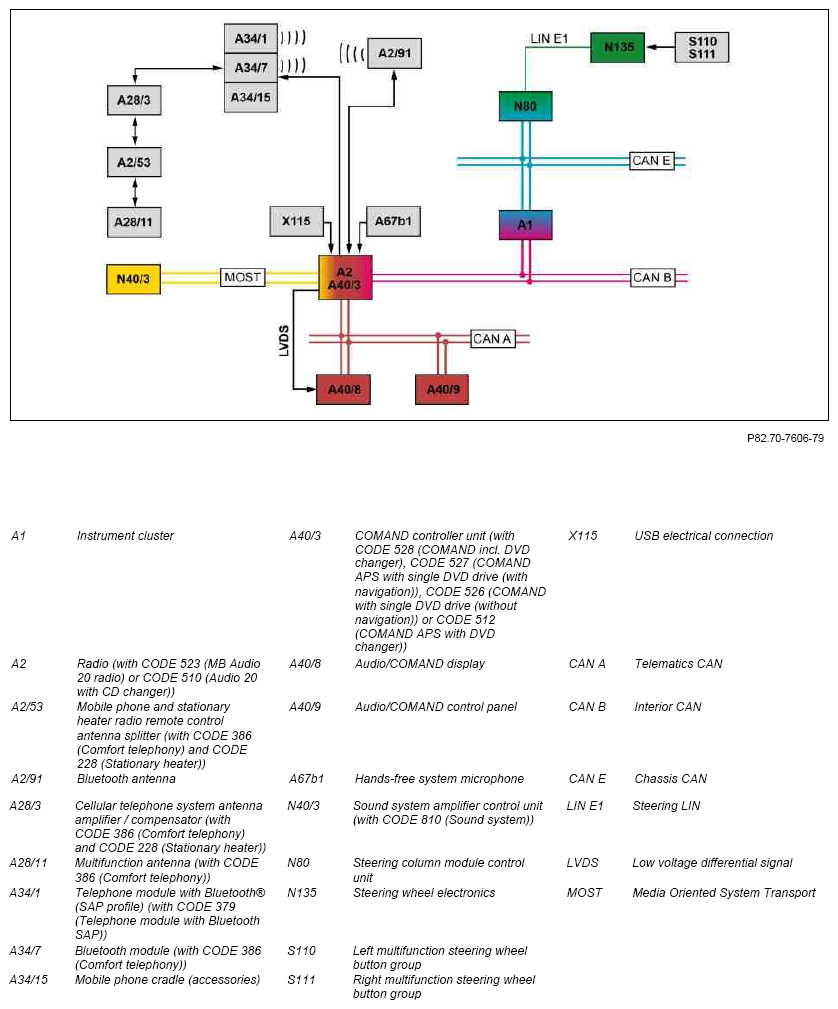

Shown on model 207 up to 09.05.2013

Fig 2: Mobile Phone System Block Diagram - Shown On Model 207
G10081971Courtesy of MERCEDES-BENZ USA

Function requirements for mobile phone system, general

Mobile telephone system, general

A differentiation is made between the variants in the mobile phone system:

IMPORTANT The comfort telephony with CODE 379 (Telephone module with Bluetooth SAP) requires equipment with CODE 386 (Comfort telephony). Instead of the mobile phone cradle (accessories), the telephone module with Bluetooth® (SAP profile) can be plugged onto the Bluetooth module or the mobile phone contact plate (as of 10.05.2013).

All variants use Bluetooth® technology for data transfer. In order to be able to operate a Bluetooth-compatible mobile phone that is authorized on the audio equipment in the vehicle, the mobile phone must support the hands-free profile (HFP) 1.0 or higher.

IMPORTANT The mobile phone system is described here using basic telephony as an example. The special features of comfort telephony or telephony (with CODE 379 (Telephone module with Bluetooth SAP)) are summarized at the end of this information.

The functional scope is not only dependent on the vehicle equipment, but also on the mobile phone and the settings on the mobile phone.

IMPORTANT

IMPORTANT A mobile phone authorized on the audio equipment can also be used as a modem for access to the Internet or as a playback device as part of the Bluetooth® audio, cf. the information "Internet connection function" or "Audio mode function". A Bluetooth-compatible mobile phone here can fulfill a maximum of 2 functions at the same time. The mobile phone system includes the following areas:

Bluetooth®

Using Bluetooth®, it is possible to connect modern communication devices such as personal digital assistants (PDA) or notebooks to the mobile phone system quickly and easily. Bluetooth® is a worldwide open standard for connecting Bluetooth® devices (e.g. mobile phone) wirelessly and is based on radio technology in the 2.4 GHz range. One advantage of Bluetooth®, in addition to the wide availability of Bluetooth® devices, is the uncomplicated and spontaneous connection of Bluetooth® devices to a Bluetooth® network (ad-hoc network). The extremely high data security (128-bit encoding) and the relatively limited radius (approx. 10 m) of this type of Bluetooth® network are what makes the use of Bluetooth® in the vehicle interesting.

The audio equipment can integrate the latest-generation mobile phones into the vehicle hierarchy via the Bluetooth® interface of the mobile phone and the Bluetooth antenna.

If several Bluetooth-compatible mobile phones are located in the vehicle, then the connection is established with the last mobile phone used in the vehicle. If this is not in the vehicle, then a search is made for a mobile phone used previous to this.

If a mobile phone has not yet been logged into the audio equipment using Bluetooth® or if the connection is to be made with another mobile phone, then the "Bluetooth telephones" or "Connect telephone" submenu item (depending on the national version) must be activated via the basic telephone function in the application bar and the "Telephone" menu item.

A list of mobile phones already recognized is displayed. This is where you can select and authorize the desired mobile phone. The "Update" entry is used to search for new mobile phones. After the update, it is possible to select and authorize the mobile phone to be connected from the displayed list.

Switch on/off characteristics

A mobile phone operated via Bluetooth® is switched on and off on the mobile phone itself. A mobile phone operated with Bluetooth® processes the switch-on signal internally in the mobile phone. The lock code inquiry is only shown on the display of the mobile phone, if configured on the mobile phone and if the mobile phone transmits this status. The lock-code can only be entered using the mobile phone buttons. The reception status is received by the mobile phone's antenna.

The lock code and the reception status display are processed internally in the mobile phone.

The signals of the buttons on the mobile phone are processed internally by the mobile phone.

After logging into the mobile telephone network provider's mobile phone network, a display is shown on the mobile phone display and the Audio/COMAND display.

The mobile phone's switch-off signal is processed internally in the mobile phone. If the rechargeable battery of the mobile phone is empty, the mobile phone is also switched off. This process also runs internally in the mobile phone.

Establish call and terminate call

The establish call and terminate call function consists of the following subfunctions:

Establish and terminate telephone call via the buttons on the mobile phone

On a mobile phone operated via Bluetooth®, the control signals of the mobile phone buttons are internally processed and not forwarded to the audio equipment.

The phone call is established depending on the model and configuration either in hands-free mode or in the "Private Mode".

IMPORTANT In "Private Mode", the user makes a phone call without other vehicle occupants being able to take part in the conversation, i.e. voice input takes place via the microphone integrated in the mobile phone, and voice output takes place via the speaker integrated in the mobile phone.

When a telephone call is terminated using the mobile phone, the mobile phone interrupts the transmission or reception of mobile phone signals or data. This process runs internally in the mobile phone.

Establish and terminate telephone call via the Audio/COMAND control panel, telephone buttons or keypad on the audio unit

The basic telephone function is called up using the Audio/COMAND control panel via the "Telephone" menu item in the application bar or using the "TEL" button on the audio unit. The basic telephone function is shown on the Audio/COMAND display. The following ways of dialing a telephone number are now available to the user:

The name of the person who you wish to call can be selected in the address book and the call lists by scrolling up and down. After dialing the telephone number via the telephone buttons on the audio equipment and pressing the "Accept phone call" button or by selecting the telephone function via the keypad on the audio equipment and then activating the "TRANSMIT" function, the telephone call is established in hands-free mode. The telephone call is terminated by pressing the "END" button on the audio equipment or by activating the "END" function in the basic telephone function.

The control signals of the telephone keys or the keypad on the audio equipment are processed internally. The control signals from the Audio/COMAND control panel are forwarded to the audio equipment via the telematics CAN. This is displayed on the audio/COMAND display via an LVDS line.

Establish and terminate telephone call via the multifunction steering wheel button groups

The phone book or address book (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 512 (COMAND APS with DVD changer)) of the audio equipment is selected by pressing the system selection button (S110s3) through the menu in the instrument cluster. The name of the person to be called is selected by scrolling forward and back in the phone book or the address book using the scroll forward and back button (S110s1).

The telephone call is established and terminated in hands-free mode with the accept and terminate phone call button (S111s3) (see function sequence "Establish telephone call in hands-free mode").

The control signals of the multifunction steering wheel button groups are forwarded as of 10.05.2013 to the audio equipment through the following components:

The control signals of the multifunction steering wheel button groups are forwarded up to 09.05.2013 to the audio equipment through the following components:

Establish telephone call via the voice control system (VCS [SBS]) (with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 512 (COMAND APS with DVD changer))

Pressing the voice control system ON button (S111s4) of the right multifunction steering wheel button group activates the voice control system.

The control signal of the voice control system ON button is forwarded as of 10.05.2013 to the audio equipment through the following components:

The control signal of the voice control system ON button is forwarded up to 09.05.2013 to the audio equipment through the following components:

A signal sound is emitted after the voice control system has been activated. The signal tone is emitted by the audio equipment over the vehicle's speaker system.

In vehicles with CODE 810 (Sound system), the acoustic signal from the audio equipment is sent over the MOST to the sound system amplifier control unit and then emitted over the speaker system.

IMPORTANT More detailed information on the speaker system is available in the "Speaker output function" information.

Establishing a call is activated in the dialog with the VCS [SBS] with the help of voice commands, e.g. with the following:

IMPORTANT The individual voice commands are listed in the "Linguatronic operator's manual".

The voice commands are registered by the hands-free system microphone and forwarded to the audio equipment over a direct line. The audio equipment sends the control signals via a direct line and the Bluetooth antenna to the mobile phone. The voice control of the voice control system (VCS [SBS]) is used to establish the telephone call in the hands-free mode.

Establish telephone call in hands-free mode

After the telephone call has been established, the audio equipment sends the mobile phone signals or data over the Bluetooth antenna to the mobile phone. The mobile phone signals and data are received by the mobile phone via the reverse route.

The voice input in hands-free mode is recorded by the hands-free system microphone and forwarded to the audio equipment via a direct line. The audio equipment sends the signals over direct lines to the speaker system or, in vehicles with CODE 810 (Sound system), over the MOST to the sound system amplifier control unit, which amplifies the signals and transmits them to the speaker system.

IMPORTANT More detailed information on the speaker system is available in the "Speaker output function" information.

Terminate phone call in hands-free mode

After a phone call has been terminated, the mobile phone interrupts the transmission or reception of the mobile phone signals. This takes place internally in the mobile phone.

Accepting calls, rejecting calls and toggling

The mobile phone can be used by the user to initiate, terminate or toggle a telephone call to another person in the cellular telephone system network or in the fixed-line network. It is possible to accept, reject or toggle a call using the following components:

The accept call, reject call and toggle functions consist of the following subfunctions:

Call signal

The mobile phone receives the call signal via the mobile phone antenna. The call signal is then forwarded to the "audio equipment" in the following way:

The audio equipment sends the ringing tone over direct lines to the speaker system or, in vehicles with CODE 810 (Sound system), over the MOST to the sound system amplifier control unit, which amplifies the signals and transmits them to the speaker system.

IMPORTANT If the mobile phone supports "In-band ringing", the mobile phone ringing is emitted over the vehicle speakers, otherwise the audio equipment 's default ringing tone is used.

The audio equipment mutes the currently active audio source (e.g. in radio mode) (MUTE). The call recognition is displayed by the audio equipment on the audio/COMAND display via a LVDS line.

IMPORTANT When "Tel" has been selected on the instrument cluster, the call recognition is indicated on the multifunction display (A1p13) in the instrument cluster. The instrument cluster receives the signals from the audio equipment via the interior CAN.

Call acceptance and rejection via the buttons on the mobile phone

The call can be accepted or rejected by operating the mobile phone accordingly. The control signals are processed internally in the mobile phone, sent and then received by the audio equipment over the Bluetooth antenna.

Call acceptance and rejection through the Audio/COMAND control panel, telephone buttons or keypad on the audio equipment

Selecting the "Accept" function with the Audio/COMAND control panel accepts the call in the hands-free mode and selecting the "Reject" function rejects the call. The control signals from the Audio/COMAND control panel are forwarded to the "audio equipment" via the telematics CAN.

Pressing the "Accept call" button on the "audio equipment" serves to accept the call in hands-free mode. Pressing the "End" button on the "audio equipment" rejects the call. The control signals from the buttons on the "audio equipment" are processed internally.

The control signals are sent from the audio equipment to the mobile phone via the following route:

Call acceptance and rejection via the multifunction steering wheel button groups

The call is accepted or rejected in hands-free mode by pressing the accept/terminate phone call button in the corresponding subfield. The control signal from the accept and terminate phone call button is forwarded as of 10.05.2013 to the audio equipment through the following components:

The control signal from the accept and terminate phone call button is forwarded up to 09.05.2013 to the audio equipment through the following components:

The audio equipment then forwards the control signals to the mobile phone over the Bluetooth antenna. The display in the instrument cluster, if the "Telephone" menu is selected on the instrument cluster, is performed by the audio equipment via interior CAN.

Control for call waiting, toggling

If another call signal arrives when a call is already in progress on vehicles with COMAND controller unit, this is shown on the Audio/COMAND display. The telephone call can now be accepted or rejected.

If the incoming phone call is accepted, the call already in progress is put on hold if the mobile phone supports toggling. If the mobile phone does not support toggling or if the incoming call is rejected, only the call already in progress remains active in hands-free mode.

Phone book

The phone book contains the phone book entries stored in the audio equipment. The user can manage (view and delete) his contact data in the telephone book.

The system can be provided with the stored information via the phone book entries and the connection established immediately.

The phone book is selected using the "TEL" button on the audio equipment via the basic telephone function, or with the Audio/COMAND control panel via the "Telephone" menu item in the application bar on the Audio/COMAND display, and then through the "Name" menu item in the application field.

IMPORTANT Read access to the phone book of the mobile phone is provided if the mobile phone supports the Bluetooth Phonebook Access Profile (PBAP). Otherwise, data from the phone book of the mobile phone can only be loaded onto the audio equipment via "vCards".

Address book (with CODE 512 (COMAND APS with DVD changer) or with CODE 527 (COMAND APS with single DVD drive (with navigation)))

The user can manage all the contact data in the address book (view, edit, add, delete and create). The address book contains the address entries stored in the COMAND controller unit.

Address entries can only be removed by deleting individual entries or by deleting the entire address book.

Data can also be transferred from other external devices (e.g. PDA, notebook, etc.) into the address book via the Bluetooth® interface of the mobile phone and the Bluetooth antenna. Address data can also be transferred into the address book as "vCards" via the Secure Digital (SD) card slot to the COMAND controller unit or via the USB electrical connection.

Address-relevant mobile phone system applications can be directly started and supplied with the stored data via address book entries. Address entries can contain the following:

The call can be established via the VCS [SBS] for each entry with a completed "Yomigana field" (with CODE 498 (Japan version)). The address entries stored in the COMAND controller unit are shown in the address book. Read access is available to the phone book of the mobile phone when the mobile phone supports the PBAP profile.

Speed-dial list

The speed dial list consists of up to ten telephone numbers to which phone book entries can be assigned with digits from 0 to 9. The user can manage the entries using the "Call lists" and "Speed dial list" menu entries.

The speed dial list is active only when the "Telephone" menu is active. Pressing the number on the keypad of the audio equipment for a longer period of time (approx. 2 s) dials up the telephone number stored and establishes a connection.

"Private Mode"

When in "Private mode", the user can make a telephone call without other vehicle occupants being able to hear the conversation. When dialing using the buttons on the mobile phone, the telephone call is carried out in "Private Mode" if the mobile phone supports "Private Mode" and "Private Mode" has been activated.

After a telephone call has been accepted or established in hands-free mode, you can switch to "Private Mode" by activating "Private Mode" via the mobile phone if the mobile phone supports "Private Mode".

"Seamless switch"

"Seamless Switch" provides the following functionality:

IMPORTANT With some Japanese mobile phones you can select how the mobile phone behaves if a connection is interrupted. If the "Switch off if connection is interrupted" setting has been selected, "Seamless Switch" cannot be activated because a brief connection interruption occurs.

Short Message Service (SMS) (except CODE 498 (Japan version))

The SMS application enables the user to manage his/her SMS messages (e.g. to read or delete them). For this, the SMS messages previously received on the mobile phone as well as the new SMS messages are forwarded to the "audio equipment". The following SMS functions are possible:

IMPORTANT The SMS function with basic telephony requires the Message Access Profile (MAP) to be supported.

The SMS function consists of the following subfunctions:

Upload given SMS to audio equipment

The SMS already stored in the mobile phone are transmitted from the mobile phone to the "audio control unit" in the following way:

IMPORTANT Under certain circumstances, loading SMS messages may take a long time. This may be because of the mobile phone or the number of SMS messages in the mobile phone.

Receive SMS

The SMS messages received by the mobile phone are sent as follows to the audio equipment:

Call up the SMS application

The SMS function for managing (e.g. reading or deleting) SMS messages is called up using the "Tel" basic function.

The "TEL" base function is called up by pressing the "TEL" button on the audio equipment. The corresponding basic mask appears. The "TEL" base function can also be called up via the "TEL" menu in the application bar.

The submenu "SMS" can then be called up on the function bar. The "TEL" button control signals are processed internally by the audio equipment.

The Audio/COMAND control panel control signals are sent via the telematics CAN to the audio equipment.

The Audio-/COMAND display is actuated by the audio equipment via a low voltage differential signaling line.

Display SMS message

The SMS content is displayed on the Audio/COMAND display. The audio equipment actuates the Audio/COMAND display via the low voltage differential signaling line.

Read out SMS message

SMS voice output is conducted via the vehicle speaker system.

IMPORTANT More detailed information on the speaker system is available in the "Speaker output function" information.

Additional function requirements for Mercedes-Benz Contact (except CODE 494 (USA version) or CODE 498 (Japan version))

Mercedes-Benz Contact (except CODE 494 (USA version) or CODE 498 (Japan version))

The "Mercedes-Benz Contact" function provides user-friendly access to the services rendered by Mercedes-Benz Services by means of a fixed, reserved telephone book entry in the telephone book or in the address book of the "audio equipment" or the telephone book of the mobile phone. The "Mercedes-Benz Contact" function uses the hands-free system (via Bluetooth®) and supports the service acceptance process at the Service Center by voice communication with synchronous transfer of the vehicle data.

Function sequence for establishing telephone call, data transfer and terminating call with Service Center

The fixed, reserved telephone book entry in the telephone book or in the address book of the "audio unit" or in the telephone book of the mobile phone is selected via one of the following components:

After an active call has been established to the Service Center, the user starts the data transfer. The data is transferred after the call has been established by actuating a number key on the keypad of the audio equipment.

For data transfer purposes, the audio equipment checks the kilometer reading and the maintenance computer information of the instrument cluster via the interior CAN.

In vehicles with CODE 527 (COMAND APS with single DVD drive (with navigation)) or with CODE 512 (COMAND APS with DVD changer), the map data is also transferred by the navigation module integrated in the audio equipment.

The data is transmitted by the audio equipment by means of Dual Tone Multiple Frequency (DTMF) tones to the service center in the same way as when the call has been established successfully. After the data has been transferred to the Service Center, the user can talk to an employee at the Service Center or the workshop. The transmitted data is then available to the employee.

Comfort telephony (with CODE 386 (Comfort telephony)) or telephony with CODE 379 (Telephone module with Bluetooth SAP)

With comfort telephony the mobile phone signals are sent and received over the multifunction antenna (vehicle external antenna). Connection is made through the Bluetooth module or the mobile phone contact plate (as of 10.05.2013) in the stowage compartment (telephone compartment) under the armrest.

In vehicles with CODE 386 (Comfort telephony) (except CODE 379 (Telephone module with Bluetooth SAP)), a matching mobile phone cradle (accessories) is inserted into the Bluetooth module or into the mobile phone contact plate (as of 10.05.2013) and the corresponding mobile phone is then inserted into the mobile phone cradle.

In vehicles with CODE 379 (Telephone module with Bluetooth SAP) the telephone module with Bluetooth® (SAP profile) is plugged onto the Bluetooth module or the mobile phone contact plate (as of 10.05.2013).

IMPORTANT The telephone module with Bluetooth® (SAP profile) supports the SIM Access Profile (SAP).

Comfort telephony exhibits the following special features:

Functions of the Bluetooth module or the mobile phone contact plate (as of 10.05.2013) with CODE 386 (Comfort telephony)

The Bluetooth module or the mobile phone contact plate (as of 10.05.2013) performs the following functions:

Functions of the Bluetooth module or the mobile phone contact plate (as of 10.05.2013) with CODE 379 (Telephone module with Bluetooth SAP)

The Bluetooth module or the mobile phone contact plate (as of 10.05.2013) performs the following functions:

IMPORTANTThe connection to the audio equipment (via Bluetooth®) is performed by the telephone module with Bluetooth® (SAP). Signal path with CODE 386 (Comfort telephony)

The Bluetooth module or the mobile phone contact plate (as of 10.05.2013) receives the mobile phone signals from the mobile telephone network over the following route:

The Bluetooth module or the mobile phone contact plate (as of 10.05.2013) forwards the mobile phone signals over the mobile phone cradle (accessories) to the mobile phone.

The Bluetooth module (up to 09.05.2013) forwards the mobile phone signals over the Bluetooth antenna to the audio equipment. The mobile phone (as of 10.05.2013) forwards the mobile phone signals over the Bluetooth antenna to the audio equipment.

Signal path with CODE 379 (Telephone module with Bluetooth SAP)

The telephone module with Bluetooth® (SAP profile) receives the mobile phone signals as follows from the mobile telephone network:

The telephone module with Bluetooth® (SAP profile) forwards the mobile phone signals via the Bluetooth antenna to the audio equipment.

Switch-on characteristics

With comfort telephony the mobile phone system is automatically switched on by switching on the audio equipment by means of a wake-up pulse from the audio equipment. The audio equipment sends the signal over a direct line to the Bluetooth module or the mobile phone contact plate (as of 10.05.2013).

The Bluetooth module or the mobile phone contact plate (as of 10.05.2013) forwards the signal with CODE 379 (Telephone module with Bluetooth SAP) to the telephone module with Bluetooth® (SAP profile) and with CODE (386) Comfort telephony over the cradle to the mobile phone.

IMPORTANT Not all mobile phone cradles support this switch on/off feature. Additional information at:

www.mercedes-benz.com

Personal Identification Number (PIN) prompt with CODE 386 (Comfort telephony)

If configured on the mobile phone, the Personal Identification Number (PIN) is requested after the mobile phone has been switched on. The PIN prompt is shown by the audio equipment through a low voltage differential signal (LVDS) line on the Audio/COMAND display as well as over the interior CAN in the instrument cluster, and the PIN can be entered on the audio equipment.

Connect telephone module with Bluetooth® (SAP profile) with CODE 379 (Telephone module with Bluetooth SAP)

The telephone module with Bluetooth® (SAP) is connected (authorized) to the audio equipment via the entry "Connect SAP module" in the "Telephone" menu in the Audio/COMAND display function bar. Proceed as follows to do so:

IMPORTANT If an SIM card is not inserted into the telephone module with Bluetooth® (SAP profile), the telephone module with Bluetooth® (SAP profile) can use the SIM card of a Bluetooth-compatible mobile phone in the vehicle, if the mobile phone supports the SIM Access Profile. As soon as a SAP module is connected to the audio equipment, the "Connect SAP module" entry is replaced by "Disconnect SAP module".

Device list with CODE 379 (Telephone module with Bluetooth SAP)

The "SAP telephone" menu entry leads to a list of units, which matches the lists for Bluetooth telephony and Bluetooth audio. Special features of the SAP module unit list are the "Save PIN" and "Ring tones" functions under "Options". In "Ring tones" one of 10 ring tones on the telephone module with Bluetooth® (SAP profile) can be selected for telephony through the telephone module with Bluetooth® (SAP profile).

Phone book

The data from the phone book of the mobile phone can be loaded into the phone book of the audio equipment (external data). The data from the mobile phone's phone book are then permanently available, even if the mobile phone is no longer inserted in the mobile phone cradle. External phone book entries can only be removed by deleting all entries or deleting individual entries.

  Electrical function schematic for mobile phone MODEL 207 as of 9/1/14 up to 3/1/15 up to model year 2016 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer) MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 523 (Audio 20 CD) MODEL 207 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 207 up to 8/31/14 as of model year 2014 with CODE 528 (COMAND with DVD changer) PE82.70-P-2051-97EAC
MODEL 207 as of 7/1/11 up to model year 2013 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 207 as of 7/1/11 up to model year 2014 with CODE 512 (COMAND APS with DVD changer) MODEL 207 as of 7/1/11 up to model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 207 as of 7/1/11 up to model year 2014 with CODE 528 (COMAND with DVD changer) MODEL 207 as of model year 2013 up to model year 2014 with CODE 510 (Audio 20 CD with 6-disc CD changer) MODEL 207 as of model year 2013 up to model year 2014 with CODE 523 (Audio 20 CD) PE82.70-P-2051-97EAA
