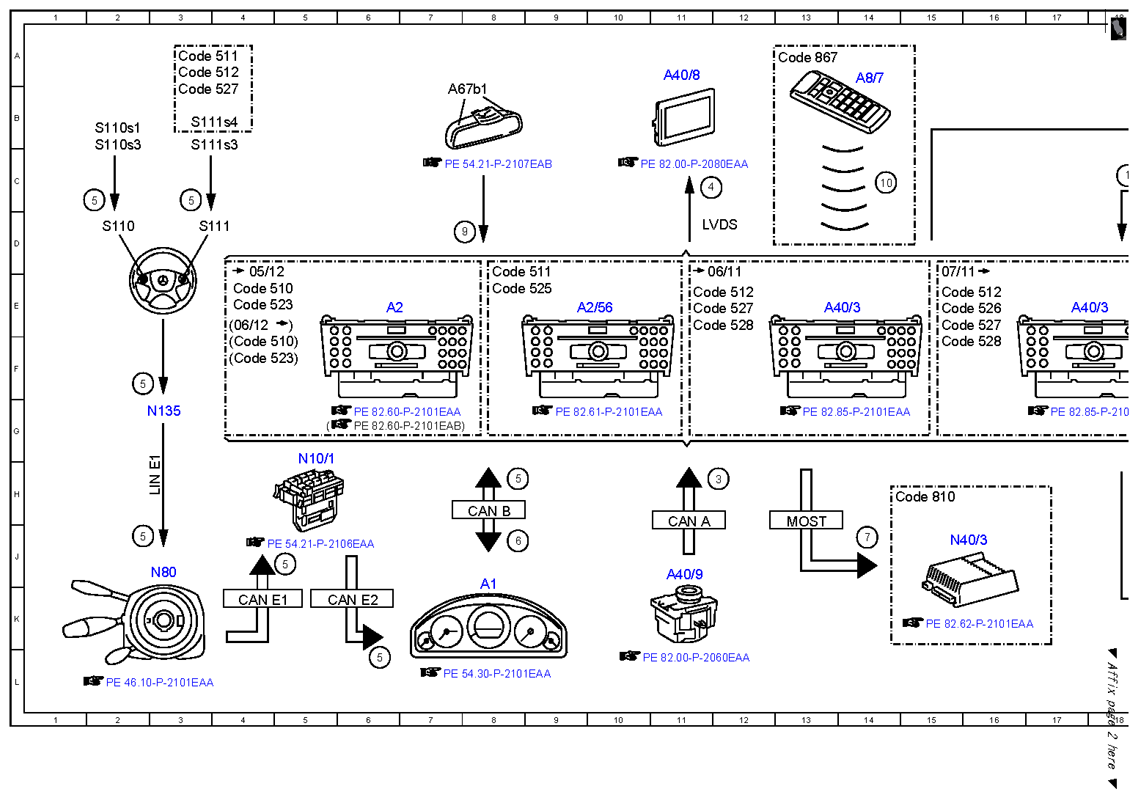

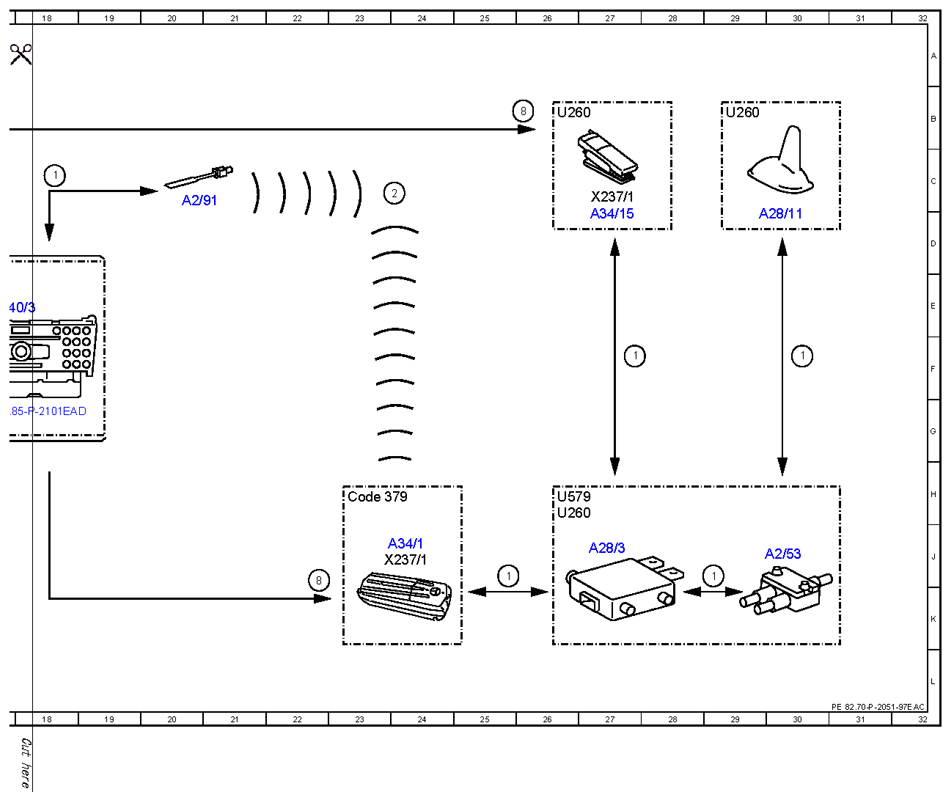

| 1 |
Telephone, signal |
25J |
| 1 |
Telephone, signal |
29J |
| 1 |
Telephone, signal |
18C |
| 1 |
Telephone, signal |
27F |
| 1 |
Telephone, signal |
30F |
| 10 |
Infrared, signal |
14C |
| 2 |
Bluetooth, signal |
24C |
| 3 |
Audio/COMAND controller, request |
12H |
| 4 |
Audio/COMAND display, message |
11C |
| 5 |
Multifunction steering wheel button group, signal |
6L |
| 5 |
Multifunction steering wheel button group, signal |
2J |
| 5 |
Multifunction steering wheel button group, signal |
5J |
| 5 |
Multifunction steering wheel button group, signal |
2F |
| 5 |
Multifunction steering wheel button group, signal |
8H |
| 5 |
Multifunction steering wheel button group, signal |
3C |
| 5 |
Multifunction steering wheel button group, signal |
2C |
| 6 |
Instrument cluster, message |
8J |
| 7 |
Sound system amplifier, actuation |
14J |
| 8 |
Switch-on request, signal |
22J |
| 8 |
Switch-on request, signal |
26B |
| 9 |
Voice input, signal |
8D |
| A1 |
Instrument cluster |
8K |
| A2 |
Radio |
6E |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
30J |
| A2/56 |
Radio with auto pilot system |
9E |
| A2/91 |
Bluetooth antenna |
20C |
| A28/11 |
Multifunction antenna |
30D |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
27J |
| A34/1 |
Telephone module with Bluetooth® (SAP profile) |
24J |
| A34/15 |
Mobile phone holder |
27D |
| A40/3 |
COMAND control unit |
13E |
| A40/3 |
COMAND control unit |
17E |
| A40/8 |
Audio/COMAND display |
11A |
| A40/9 |
Audio/COMAND control panel |
11J |
| A67b1 |
Hands-free system microphone |
7B |
| A8/7 |
Remote control |
14A |
| CAN A |
Telematics CAN |
11J |
| CAN B |
Interior CAN |
8H |
| CAN E1 |
Chassis CAN 1 |
4K |
| CAN E2 |
Chassis CAN 2 |
6K |
| Code 379 |
Telephone module with Bluetooth SAP |
23H |
| Code 510 |
Audio 20 with CD changer |
4F |
| Code 510 |
Audio 20 with CD changer |
4E |
| Code 511 |
Audio 50 APS incl. DVD changer |
3A |
| Code 511 |
Audio 50 APS incl. DVD changer |
8E |
| Code 512 |
COMAND APS with DVD changer |
3A |
| Code 512 |
COMAND APS with DVD changer |
11E |
| Code 512 |
COMAND APS with DVD changer |
15E |
| Code 523 |
Audio 20 radio |
4F |
| Code 523 |
Audio 20 radio |
4E |
| Code 525 |
Audio 50 APS radio (CD) |
8E |
| Code 526 |
COMAND with single DVD drive (without navigation) |
15E |
| Code 527 |
COMAND APS (with navigation) |
3B |
| Code 527 |
COMAND APS (with navigation) |
11E |
| Code 527 |
COMAND APS (with navigation) |
15E |
| Code 528 |
COMAND with DVD changer |
11E |
| Code 528 |
COMAND with DVD changer |
15F |
| Code 810 |
Sound system |
14H |
| Code 867 |
SPLITVIEW |
13A |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
11D |
| MOST |
Media Oriented System Transport |
13J |
| N10/1 |
Front SAM control unit with fuse and relay module |
5H |
| N135 |
Steering wheel electronics |
2G |
| N40/3 |
Sound system amplifier control unit |
15J |
| N80 |
Steering column module control unit |
3J |
| S110 |
Left multifunction steering wheel button group |
2D |
| S110s1 |
Scroll forward/back button |
2B |
| S110s3 |
System selection button |
2C |
| S111 |
Right multifunction steering wheel button group |
3D |
| S111s3 |
Accept/terminate phone call button |
3C |
| S111s4 |
Voice control system ON button |
3B |
| U260 |
Valid for comfort telephony |
26H |
| U260 |
Valid for comfort telephony |
26B |
| U260 |
Valid for comfort telephony |
29B |
| U579 |
Valid for stationary heater |
26H |
| X237/1 |
Mobile phone contact plate |
24J |
| X237/1 |
Mobile phone contact plate |
27C |
