Exterior lights function - GF82.10-P-0003CA

MODEL 207.3/4 up to model year 2014

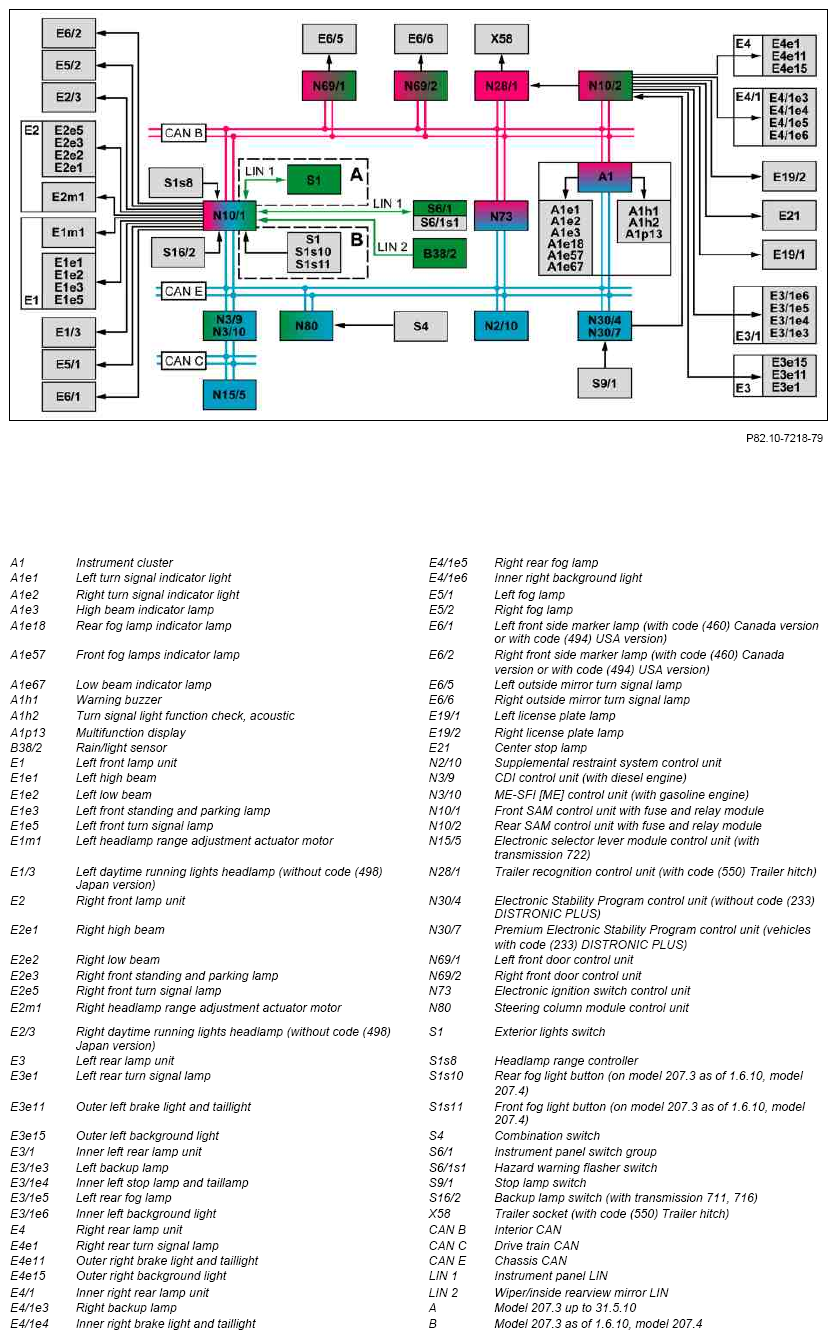

Fig 1: Exterior Lights Block Diagram - Without Code (615) Bi-Xenon Headlamp
G10081925Courtesy of MERCEDES-BENZ USA

Without code (615) Bi-xenon headlamp unit with integrated curve illumination and without code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination and without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic)

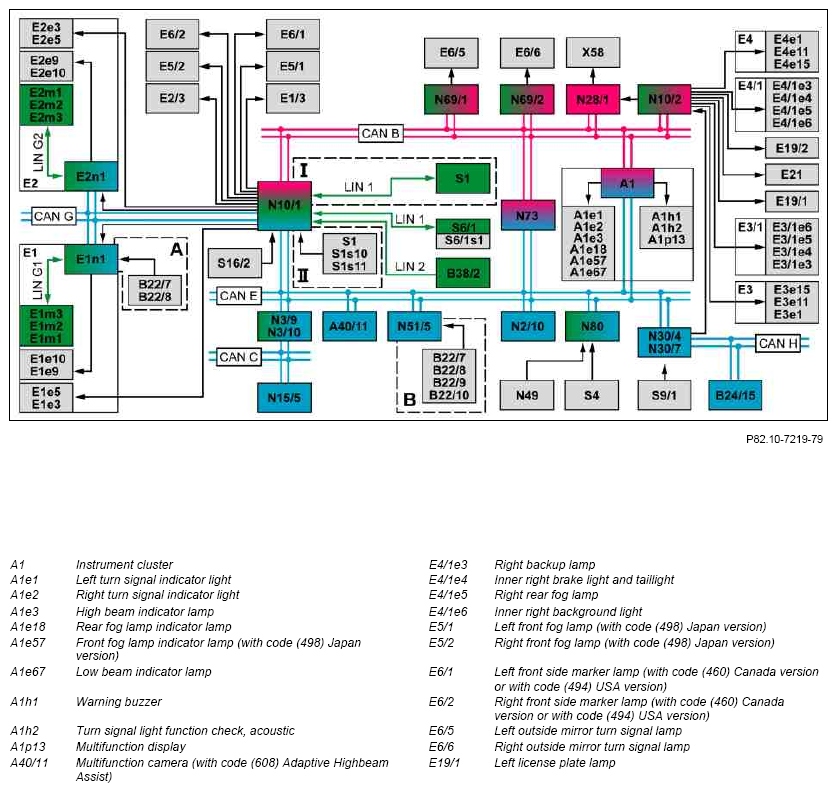

Fig 2: Exterior Lights Block Diagram - With Code (615) Bi-Xenon Headlamp (1 Of 2)
G10081926Courtesy of MERCEDES-BENZ USA

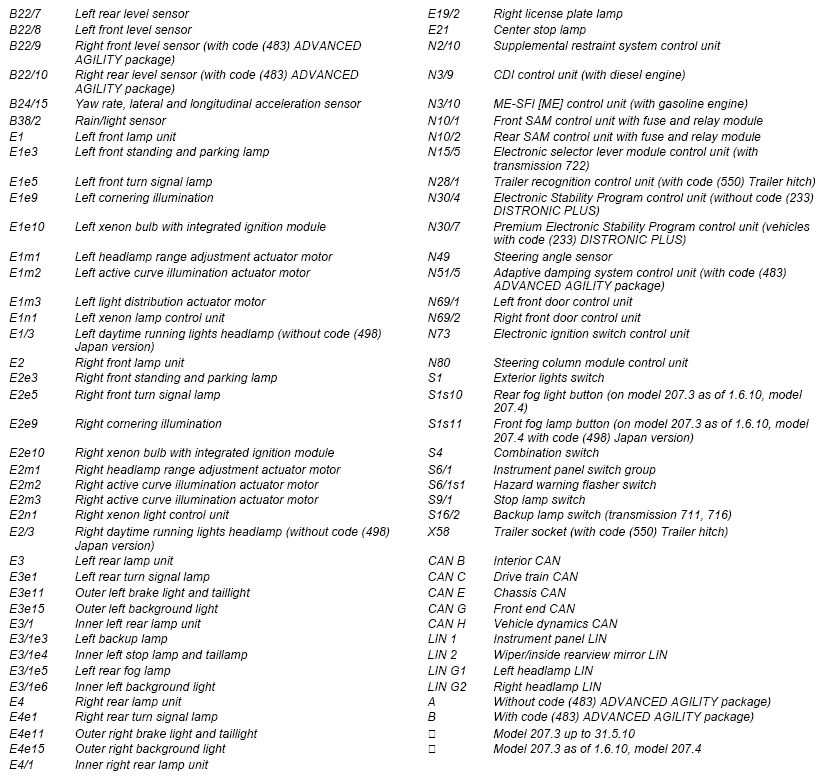

Fig 3: Exterior Lights Block Diagram - With Code (615) Bi-Xenon Headlamp (2 Of 2)
G10081927Courtesy of MERCEDES-BENZ USA

With code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetrical curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic)

Function requirements, general

Exterior lights (ABL), general

The exterior lights control all the safety and comfort-relevant functions of the front, side and rear lights of the vehicle.

The exterior lights comprise the following subfunctions:

Further subfunctions are described in separate information:

Function sequence, on-board network increase

When the on-board electrical system voltage is decreased by the on-board electrical system management below the minimum voltage of a light function during normal driving operation, the front SAM control unit can suppress shutoff of the corresponding light function with the aid of the on-board electrical system increase. To do so, the front SAM control unit requests the minimum voltage required for the corresponding light function. The light functions for which the on-board electrical system increase is activated can be defined at the end of the production line.

The following functions can be coded:

Function sequence for switching off the exterior lights

Switching off the exterior lights prevents the on-board electrical system battery (G1) from being discharged by the active low beam and standing light actuation.

The low beams may be switched on due to the auto on/off headlamps, the daytime running lights or manually via the exterior lights switch. A prerequisite for this is that the status of circuit 15 is On.

If circuit 15 is Off, the low beams are switched off.

The standing lights may be on due to the low beams having been manually switched on, due to the auto on/off headlamps or the daytime running lights, or they can be switched on manually via the exterior lights switch. If the standing lights have been activated because of the manually activated low beams, auto on/off headlamps or the daytime running lights, and if the driver door is opened at circuit 15C ON, the standing lights are switched off.

If the standing lights were manually switched on, and the exterior lights switch set to the standing lights position, then on vehicles up to 31.5.11, they are not switched off.

In vehicles as of 1.6.11 the standing lights are switched off when the on-board electrical system management determines that the engine's starting capability is impaired through the discharged on-board electrical system battery.

IMPORTANT If the Ambient illumination function is activated via the instrument cluster, it automatically switches itself on when the engine is turned off. The standing lights remain switched on for a fixed time interval of t = 60 s.

The Ambient illumination function is described in the separate information "Headlamp switch-off delay (SWA), function".

  Standing/parking lights actuation, function   GF82.10-P-3060CA
  Headlamp control, function MODEL 207.3/4 up to model year 2014 without CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) without CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination) without CODE 621 (Intelligent Light System (left-hand traffic)) without CODE 622 (Intelligent Light System (right-hand traffic)) GF82.10-P-2009CA
MODEL 207.3/4 up to model year 2014 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) MODEL 207.3/4 up to model year 2014 with CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination) MODEL 207.3/4 up to model year 2014 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 207.3/4 up to model year 2014 with CODE 622 (Intelligent Light System (right-hand traffic)) GF82.10-P-2009CAA
  Additional functions for driving lights actuation, function MODEL 207.3/4 up to model year 2014 with CODE 608 (Adaptive Main Beam Assist) MODEL 207.3/4 up to model year 2014 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) MODEL 207.3/4 up to model year 2014 with CODE 616 (Bi-xenon headlamp unit with integrated asymmetric curve illumination) MODEL 207.3/4 up to model year 2014 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 207.3/4 up to model year 2014 with CODE 622 (Intelligent Light System (right-hand traffic)) GF82.10-P-3050CA
  Front fog light actuation, function   GF82.10-P-3070CA
  Turn signal indicator actuation, function   GF82.10-P-3008CA
  Brake light actuation, function   GF82.10-P-3010CA
  Backup lamp actuation, function   GF82.10-P-3011CA
  Headlight switch off delay function   GF82.10-P-2011CA
  Emergency lamp control, function   GF82.10-P-3013CA
