Remove/install brake disc - AR42.10-P-0220QQ
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 197 with CODE B07 (Ceramic brake system)
MODEL 212.074/075/076/077/274/275/276/277 with CODE B07 (Ceramic brake system)
MODEL 218.374/375/376/974/975/976 with CODE B07 (Ceramic brake system)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||

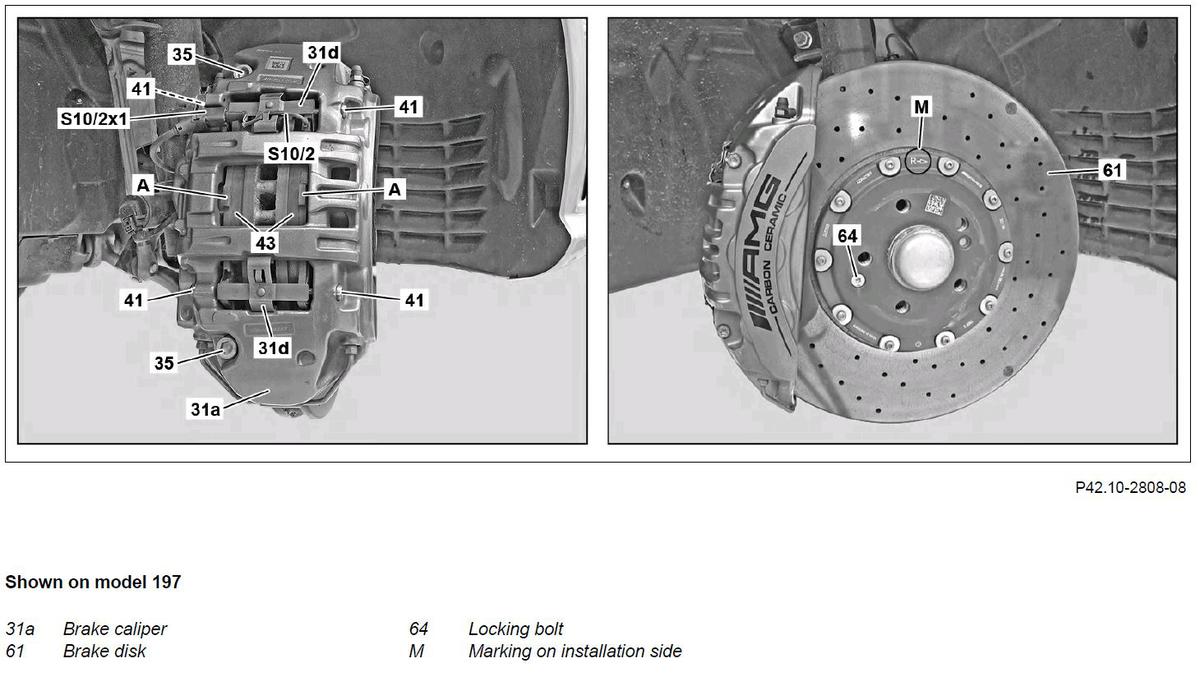

| 1 | Detach brake caliper (31a) and fasten to vehicle free of tension with lines connected | AR42.10-P-0070QQ | |
| 2 | Unscrew safety screw (64) from wheel hub and remove brake disk (61) | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Installation: Replace locking bolt (64). | |||
| Installation: Observe the marking on the installation side (M)! | |||
| Model 197 with code B07 (Ceramic brake system)Locking bolt of front axle brake disk | *BA42.10-P-1002-06A | ||
| MODEL 212, 218 with CODE B07 (Ceramic brake system)Locking bolt, brake disk of front axle to wheel hub | *BA42.10-P-1002-06H | ||
| Check | |||
| 3 | Check condition of brake disks (61) | In event of damage or excessive wear ↓ |
AP42.10-P-4258QQ |
| Install new brake disks (61). Only sets of brake disks (61) approved by Mercedes-Benz may be installed. |
|||
| Clean | |||
| 4 | Clean contact surfaces and interference fits of brake disk (61) | ||
| 5 | If necessary, clean the perforation in the brake disks (61) | Model 197 with code B07 (Ceramic brake system) | AR42.10-P-2260-01RQ |
| 6 | Grease interference fits of brake disk (61) lightly | Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A |
| 7 | Install in the reverse order |
BRAKE DISKS, BRAKE COVER PLATE
| Number | Designation | Model 197 | |
|---|---|---|---|
| BA42.10-P-1002-06A | Locking bolt of front axle brake disk | Nm | 10 |
BRAKE DISKS, BRAKE COVER PLATE
| Number | Designation | Model 212 | Model 218 | |
|---|---|---|---|---|
| BA42.10-P-1002-06H | Locking bolt, brake disk of front axle to wheel hub | Nm | 10 | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
