Remove/check/install front axle brake pads - AR42.10-P-1610EWC

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212, 218 Split floating caliper brake

MODIFICATION NOTES

17.11.14	Guide pin, brake caliper to brake caliper support	MODEL 212 (except 212.061/074/075/076/077/092/274/275/276/277/292)	BA42.10-P-1004-10J
17.11.14	Guide pin, brake caliper to brake caliper support	MODEL 218 (except 218.374/375/376/392/974/975/976/992)	BA42.10-P-1004-10J

Shown on MODEL 207.373/473

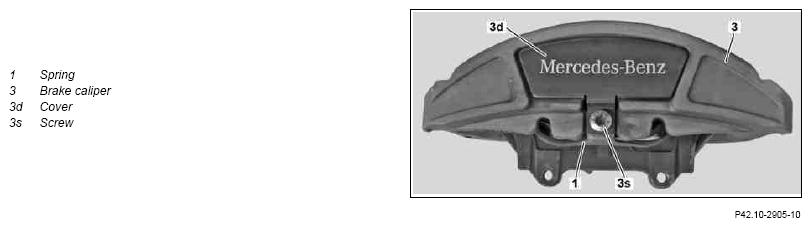

Fig 1: Front Axle Brake Pads Remove/Install Components - Shown On Model 207.373/473 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

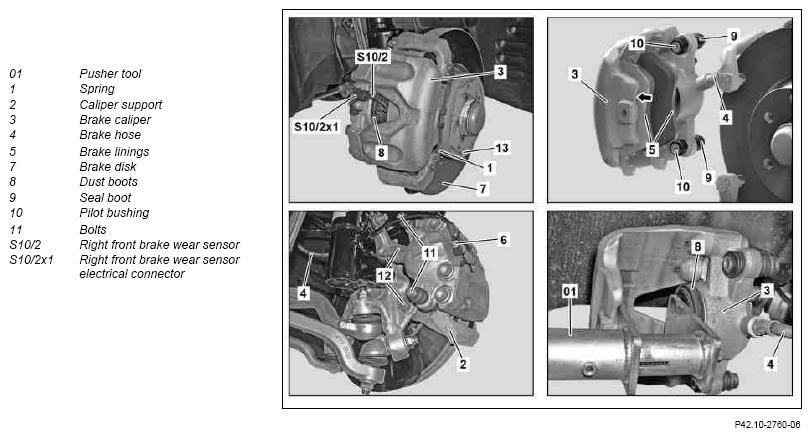

Fig 2: Front Axle Brake Pads Remove/Install Components - Shown On Model 207.373/473 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on installing brake wear indicator contact sensors		AH42.10-P-0003-01CW
	Remove/install
1	Clean area around cap on expansion reservoir for brake fluid	Assembly cleaner	*BR00.45-Z-1028-04A
2	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	This prevents the expansion reservoir overflowing when the brake piston is pushed back.
3	Remove front wheels
		Model 207	AP40.10-P-4050CW
		Model 212, 218	AP40.10-P-4050EW
4	Detach spring (1) from brake caliper (3)
5	Remove screw/bolt (3s)	With 2-piston floating caliper brake
5	Remove screw/bolt (3s)	Model 207 Split floating caliper brake Model 212 (except 212.061/074/075/076/077/092/274/275/276/277/292) Split floating caliper brake Model 218 (except 218.374/375/376/392/974/975/976/992) Split floating caliper brak, e self-locking bolt, cover panel to brake caliper support	*BA42.10-P-1005-10J
6	Remove cover (3d) and spring (1) from brake caliper (3) With 2-piston floating caliper brake
7	Detach electrical connection from brake wear sensor at front right (S10/2x1)
8	Remove screw/bolts (11)	Model 207 Split floating caliper brake Model 212 (except 212.061/074/075/076/077/092/274/275/276/277/292) Split floating caliper brake Model 218 (except 218.374/375/376/392/974/975/976/992) Split floating caliper brake guide pin, brake caliper to brake caliper support	*BA42.10-P-1004-10J
9	Remove brake caliper (3) and secure free of tension to vehicle with lines still connected	Do not subject the brake hose (4) and electrical line to tension and do not kink them. The brake hose (4) and the electrical line may otherwise be damaged.
10	Remove brake linings (5)	When replacing the brake linings (5), remove the protective foil of the outer brake lining (5). Do not apply brake paste or lubricants to the brake linings (5) and brake caliper supports (2). Unidirectional brake linings (5) are installed at the front axle. Mount all brake linings (5) so that the arrow on the lining carrier points in the direction of rotation of the complete wheel when traveling forward. Only complete sets of brake linings (5) approved by Mercedes-Benz may be installed.
	Check
11	Check brake linings (5) for wear and that they are in good condition
			AP42.10-P-4253A
		In case of damage or excessive wear: ↓ Replace brake linings (5). Replace the brake linings (5) as a complete set only.
12	Check brake disk (7) for wear and that it is in good condition
			AP42.10-P-4256EW
		In case of damage or excessive wear: ↓ Replace the brake disk (7).
		Model 207 Split floating caliper brake Model 212, 218 except code B07 (Ceramic brake system) Split floating caliper brake Replace brake disks (7) as a complete set only.	AR42.10-P-0220EWE
13	Check brake caliper (3) and dust boot (8) of brake piston for leaktightness and damage	If there are problems: ↓ Replace brake caliper (3).
13		If there are problems: ↓ Replace brake caliper (3).	AR42.10-P-0070EWC
14	Press back brake piston using pusher tool (01)	Resetting device If the brake piston is difficult to move: ↓ Replace brake caliper (3).	Figure
14	Press back brake piston using pusher tool (01)		AR42.10-P-0070EWC
15	Check seal boots (9) for damage and correct seating and check pilot bushings (10) for ease of movement	If there are problems: ↓ Install new seal boots (9) and pilot bushings (10).
			AR42.10-P-0225-01CV
		Assembly cleaner	*BR00.45-Z-1028-04A
	Clean
16	Clean contact surfaces of brake linings (5) on brake caliper (3) and on brake caliper support (2)	Do not use sharp-edged or pointed objects to clean. The dust boot (8), brake caliper (3) or brake caliper support (2) can otherwise be damaged.
16		Assembly cleaner	*BR00.45-Z-1028-04A
17	Pull right front brake wear sensor (S10/2) out of pad backing plate of brake lining (5) When replacing the brake linings (5) or when replacing the front right brake wear sensor (S10/2).
18	Install in the reverse order
19	Depress brake pedal several times until brake linings (5) rest against brake disks (7)	Firm resistance should be noticeable at the brake pedal.
	Check
20	Check/correct brake fluid level in expansion reservoir
			AP42.10-P-4210EW
21	Carry out brake test on the test stand
			AP42.00-P-4290BA

FRONT AXLE BRAKE CALIPER

Number	Designation			Model 207	Model 212 (except 212.061/074/075/076/077/092/274/275/276/277/292)
BA42.10-P-1004-10J	Guide pin, brake caliper to brake caliper support	M8 X 28	Nm	34	34
		M8 X 70	Nm	29	29
		M10	Nm	-	-
		M8x42	Nm	55	-

FRONT AXLE BRAKE CALIPER

Number	Designation			Model 218 (except 218.374/375/376/392/974/975/976/992)
BA42.10-P-1004-10J	Guide pin, brake caliper to brake caliper support	M8 X 28	Nm	34
		M8 X 70	Nm	29
		M10	Nm	-
		M8x42	Nm	-

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 207	Model 212 (except 212.061/074/075/076/077/092/274/275/276/277/292)
BA42.10-P-1005-10J	Self-locking bolt, cover panel to brake caliper support	Nm	14	14

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 218 (except 218.374/375/376/392/974/975/976/992)
BA42.10-P-1005-10J	Self-locking bolt, cover panel to brake caliper support	Nm	14

Fig 3: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	Adolf Wurth GmbH & Co. KG
