Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 204, 207, 212, 218

Front axle, shown on model 204.0 without 4MATIC

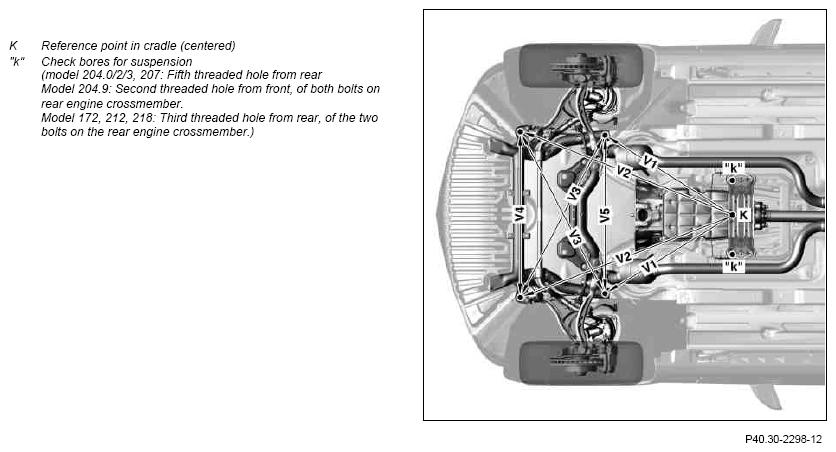

Fig 1: Front Axle Distance And Comparison Measurements - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

Rear axle, shown on model 204.0 without 4MATIC

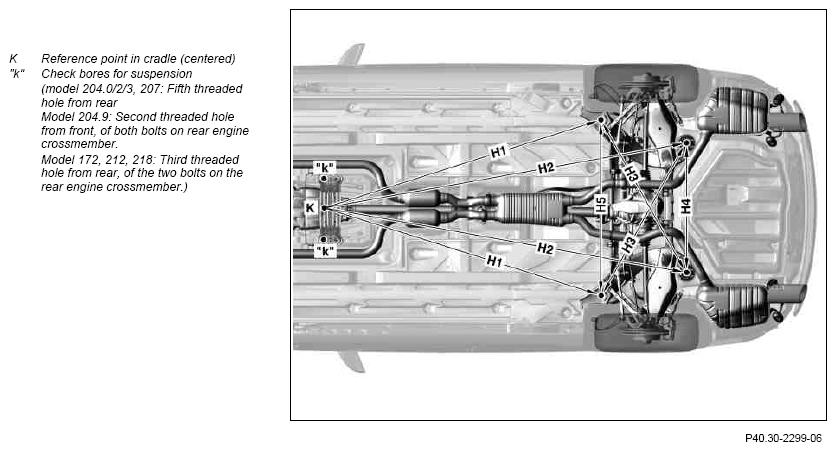

Fig 2: Rear Axle Distance And Comparison Measurements - Shown On Model 204.0

Courtesy of MERCEDES-BENZ USA

	Measure
1	Perform preparations for distance and comparative measurements	Model 172	AR40.30-P-0401V
		Model 204, 207	AR40.30-P-0401CW
		Model 212, 218	AR40.30-P-0401EW
2	Carry out distance measurement on front axle	For front end damage Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.
		Model 172, 204, 207	AR40.30-P-0402-01CW
		Model 212, 218	AR40.30-P-0402-01EW
		Test specifications for distance measurement of front axle	*BE40.30-P-1001-06I
			Figure
			Figure
			Figure
			Figure
			Figure
3	Carry out distance measurement on rear axle	For rear end damage Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.
		Model 172	AR40.30-P-0402-02W
		Model 204.0/2/3, 207	AR40.30-P-0402-02CW
		Model 204.9	AR40.30-P-0402-02CZ
		Model 212, 218	AR40.30-P-0402-02EW
		Test specifications for distance measurement of rear axle	*BE40.30-P-1001-05H
			Figure
			Figure
			Figure
			Figure
			Figure

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 172	Model 204.0/2/3, 207	Model 204.9
BE40.30-P-1001-05H	Dimension	H1	mm	1362 (±2)	1760 (±2)	1760 (±2)
		H2	mm	1739 (±2)	2237 (±2)	2230 (±2)
		H3	mm	1044 (±2)	1071 (±2)	1071 (±2)
		H4	mm	809 (±2)	794 (±2)	794 (±2)
		H5	mm	1083 (±2)	1076 (±2)	1076 (±2)
		See picture		-	AR40.30-P-0402-02CW	AR40.30-P-0402-02CZ

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 212	Model 218
BE40.30-P-1001-05H	Dimension	H1	mm	1785 (±2)	1785 (±2)
		H2	mm	2248 (±2)	2248 (±2)
		H3	mm	1070 (±2)	1070 (±2)
		H4	mm	791 (±2)	791 (±2)
		H5	mm	1076 (±2)	1076 (±2)
		See picture		AR40.30-P-0402-02EW	AR40.30-P-0402-02EW

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 172	Model 204, 207
BE40.30-P-1001-06I	Dimension	V1	mm	930 (±2)	810 (±2)
		V2	mm	1314 (±2)	1214 (±2)
		V3	mm	948 (±2)	942 (±2)
		V4	mm	840 (±2)	852 (±2)
		V5	mm	860 (±2)	818 (±2)
		See picture		AR40.30-P-0402-01CW	AR40.30-P-0402-01CW

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 212	Model 218
BE40.30-P-1001-06I	Dimension	V1	mm	880 (±2)	880 (±2)
		V2	mm	1315 (±2)	1315 (±2)
		V3	mm	955 (±2)	955 (±2)
		V4	mm	854 (±2)	854 (±2)
		V5	mm	818 (±2)	818 (±2)
		See picture		AR40.30-P-0402-01EW	AR40.30-P-0402-01EW

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA
