Carry out distance and comparison measurements on rear axle - AR40.30-P-0402-02EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 212	Model 218
BE40.30-P-1001-05H	Dimension	H1	mm	1785 (±2)	1785 (±2)
		H2	mm	2248 (±2)	2248 (±2)
		H3	mm	1070 (±2)	1070 (±2)
		H4	mm	791 (±2)	791 (±2)
		H5	mm	1076 (±2)	1076 (±2)
		See picture		AR40.30-P-0402-02EW
		See picture			AR40.30-P-0402-02EW

Fig 1: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.

The configuration of the measuring bolts is shown in the table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.

For example: 02/07/10 =168 589 07 63 02 (support stud)

168 589 07 63 07 (extension)

168 589 07 63 10 (measuring tip)

Clearance	Measuring bolt configuration	Telescopic measuring rod
H1	02/06/09/05/socket wrench bit	124 589 02 19 00
H2	02/09/08/05/socket wrench bit	124 589 02 19 00
H3	Left: 02/06/09/05/socket Right: 02/09/07/05/socket	124 589 02 19 00
H4	02/07/05/socket wrench bit	124 589 01 19 00
H5	02/06/09/05/socket wrench bit	124 589 02 19 00

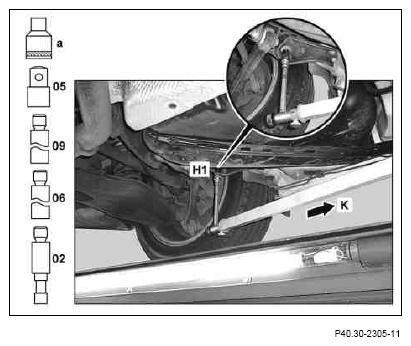

Measure distance dimension (H1) from check point (K) to center of Torx bolt head of front mount of rear axle carrier. Measure on the left and right side in each case.
If necessary, unscrew and screw in Torx bolts and check for deformation.

Shown on model 204.0

Fig 6: Measuring Distance Dimension (H1) From Check Point To Front Mount Of Rear Axle Carrier - Shown On Model 204.0
Courtesy of MERCEDES-BENZ USA

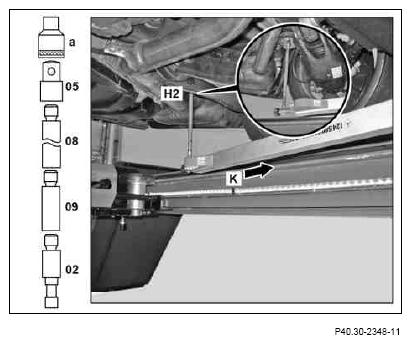

Measure distance dimension (H2) from check point (K) to center of Torx bolt head of rear mount of rear axle carrier. Measure on the left and right side in each case.
If necessary, unscrew and screw in Torx bolts and check for deformation.

Fig 7: Measuring Distance Dimension (H2) From Check Point To Rear Mount Of Rear Axle Carrier
Courtesy of MERCEDES-BENZ USA

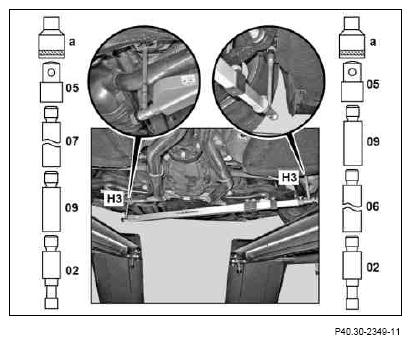

Measure distance dimension (H3) diagonally between the centering point of the Torx bolt heads to the front and rear bearing of the rear axle carrier.

Fig 8: Measuring Distance Dimension (H3) Diagonally Between Front And Rear Bearing Of The Rear Axle Carrier
Courtesy of MERCEDES-BENZ USA

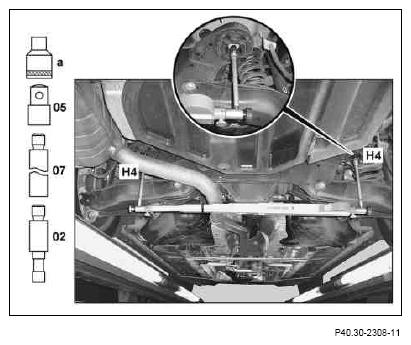

Measure distance dimension (H4) from the centering point of the Torx bolt heads between the rear bearings of the rear axle carrier.
Shown on model 204.0

Fig 9: Measuring Distance Dimension (H4) Between The Rear Bearings Of The Rear Axle Carrier - Shown On Model 204.0
Courtesy of MERCEDES-BENZ USA

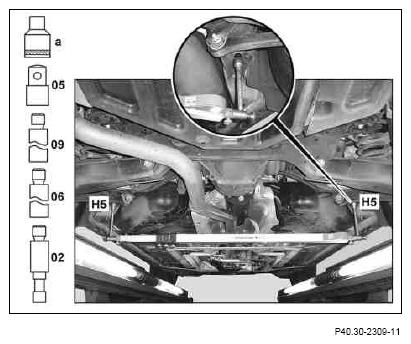

Measure distance dimension (H5) from the centering point of the Torx bolt heads between the front bearings of the rear axle carrier.
Shown on model 204.0

Fig 10: Measuring Distance Dimension (H5) Between The Front Bearings Of The Rear Axle Carrier - Shown On Model 204.0
Courtesy of MERCEDES-BENZ USA
