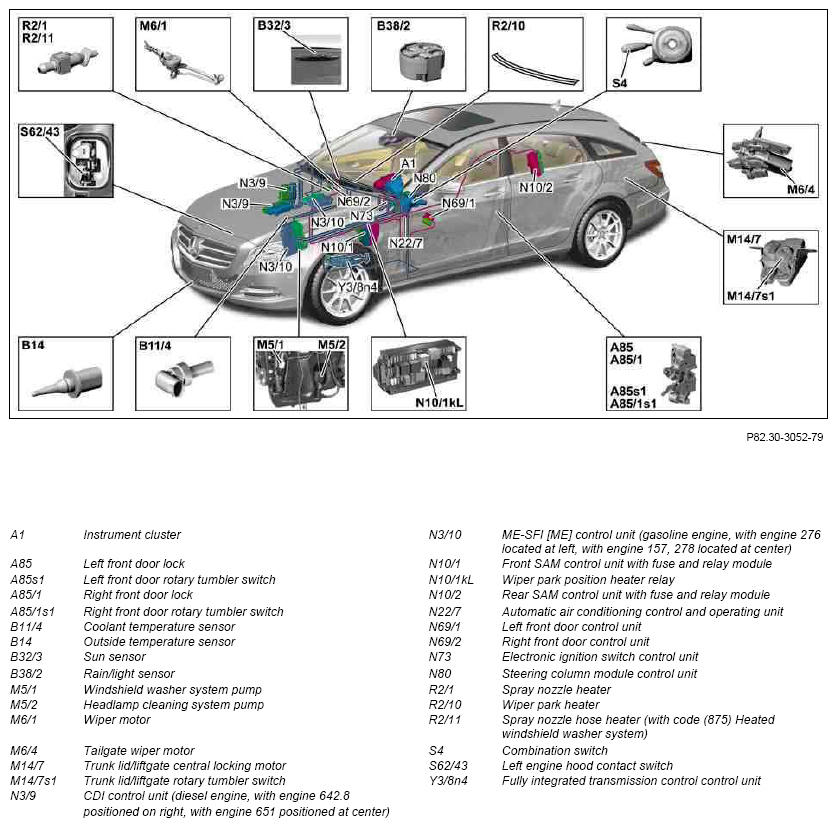

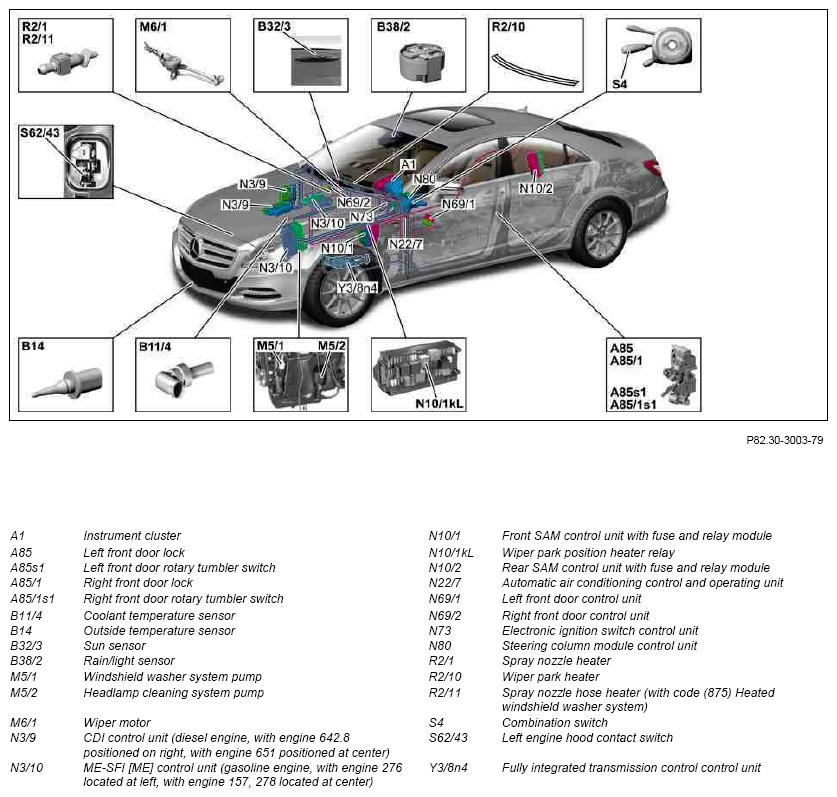

Overview of system components, wiper system (WSA) - GF82.30-P-9997FQ
MODEL 218
Model 218.3
MODEL 218.9
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG |
| MODEL 218 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OM | |
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM |
| MODEL 218 with ENGINE 157MODEL 218 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ |
| Component description for automatic air conditioning control and operating unit | MODEL 218 with CODE 580 (Automatic air conditioning) without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FQA |
| MODEL 218 with CODE 581 (Comfort automatic air conditioning) without CODE 580 (Automatic air conditioning) N22/7 |
GF83.40-P-3000FQB | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ |
| Component description for fully integrated transmission control unit | MODEL 218 with TRANSMISSION 722.9 (except 722.931) Y3/8n4 |
GF27.60-P-5165AHQ |
| MODEL 218 with TRANSMISSION 722.931 Y3/8n4 |
GF27.60-P-5165AHR | |
| Contents, function description of wiper system (WSA) | GF82.30-P-0998FQ |
