Overview of interior illumination (IBL) system components - GF82.20-P-9997FQ
MODEL 218

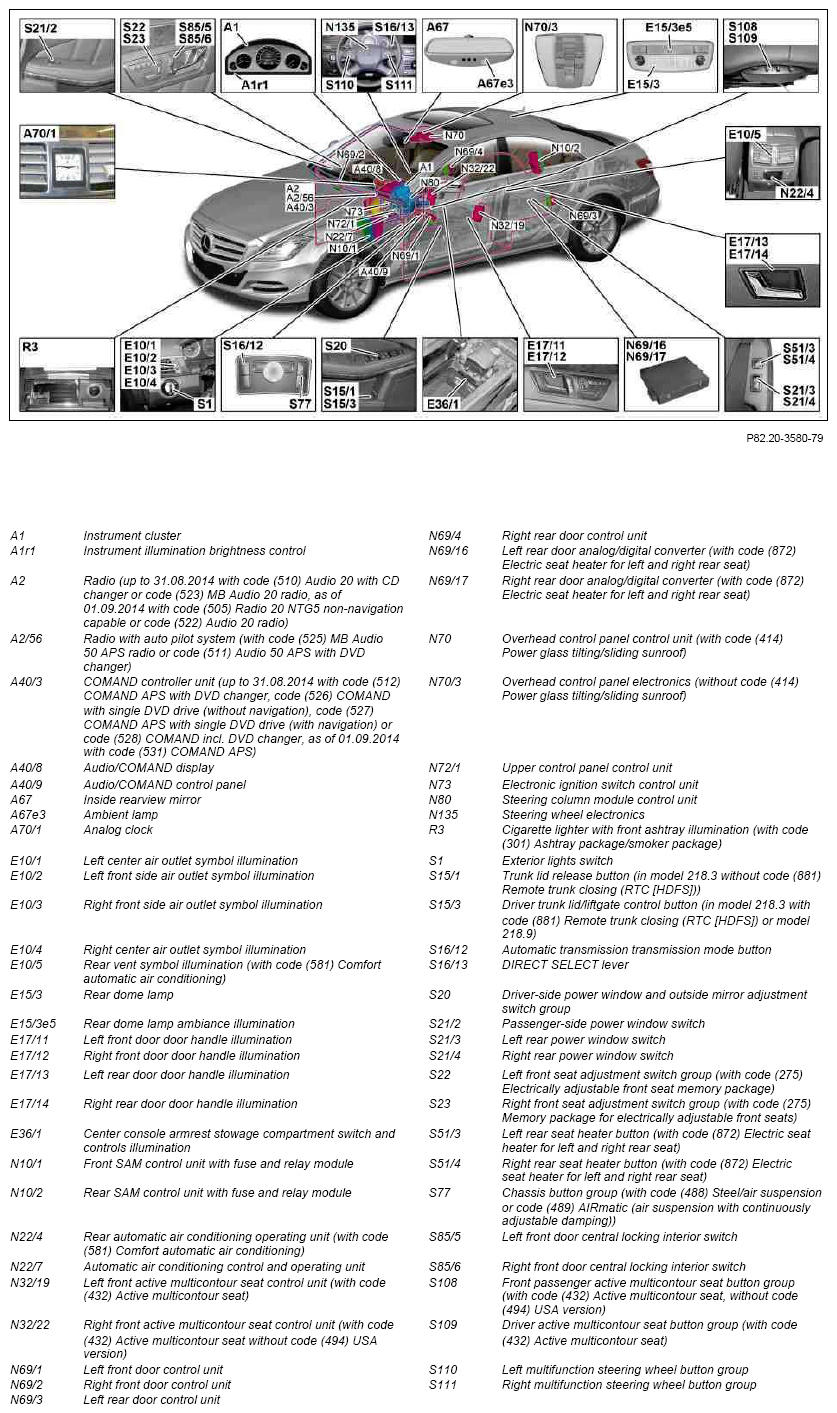

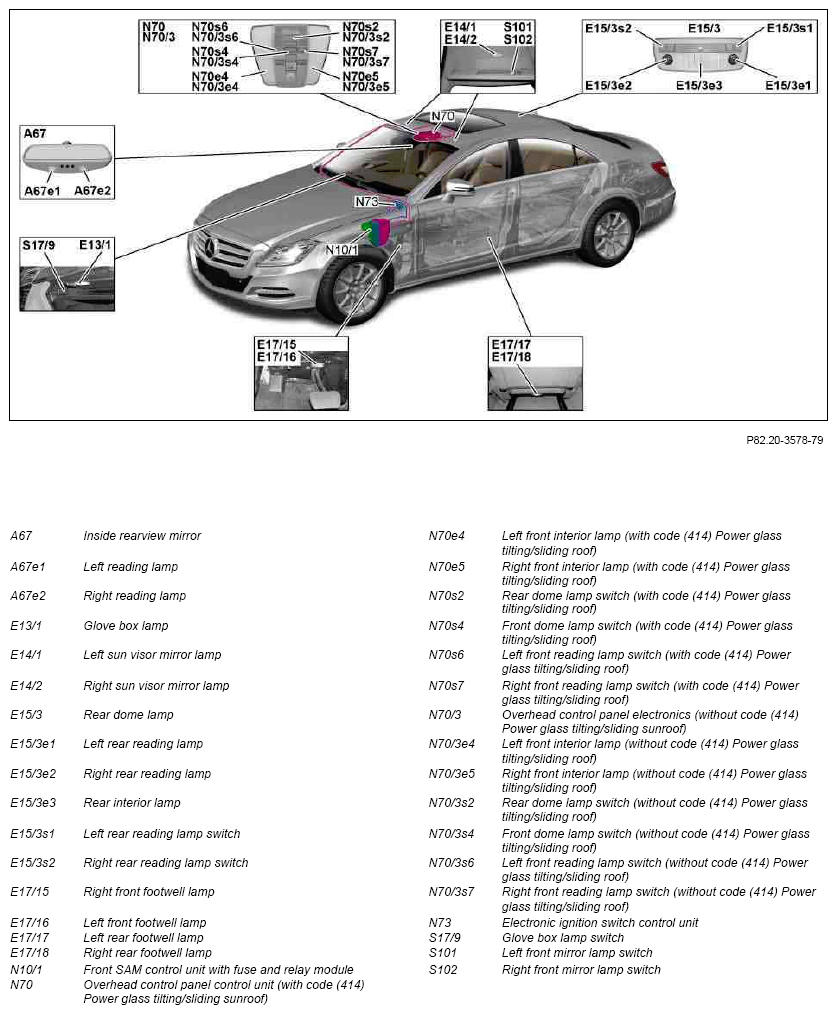

Manual interior lights control, shown in model 218.3

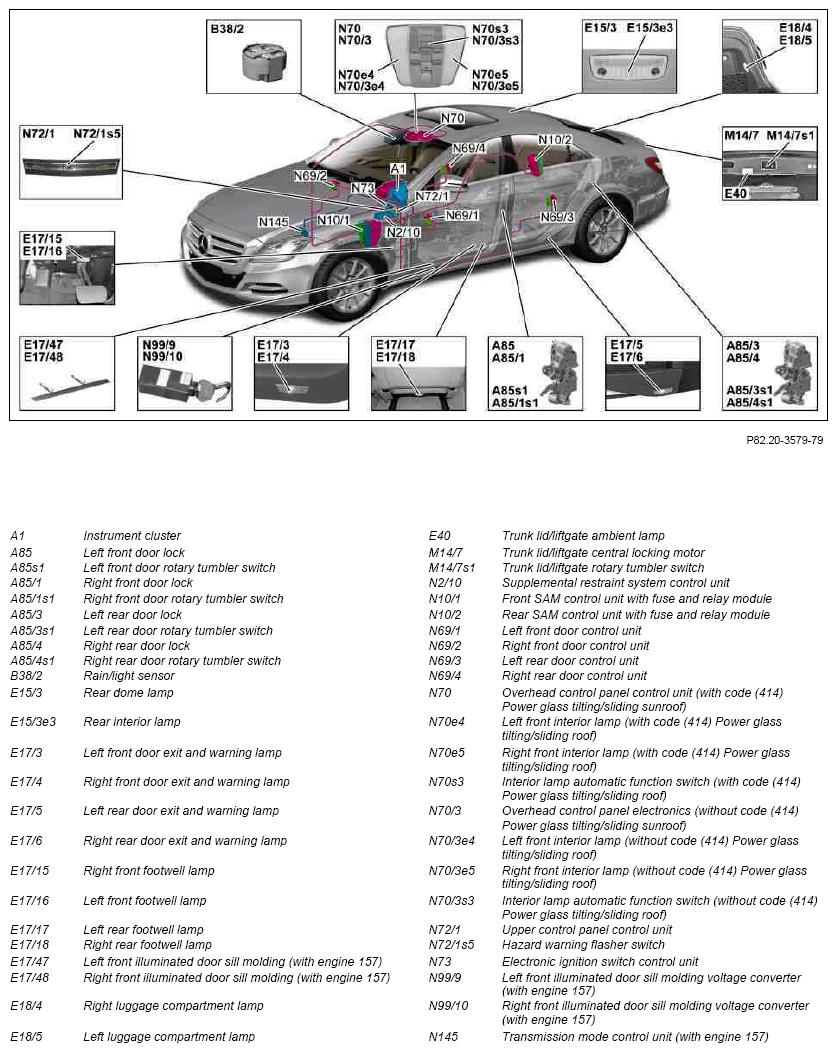

Automatic interior lights control, shown in model 218.3
Search and symbol illumination, shown in model 218.3

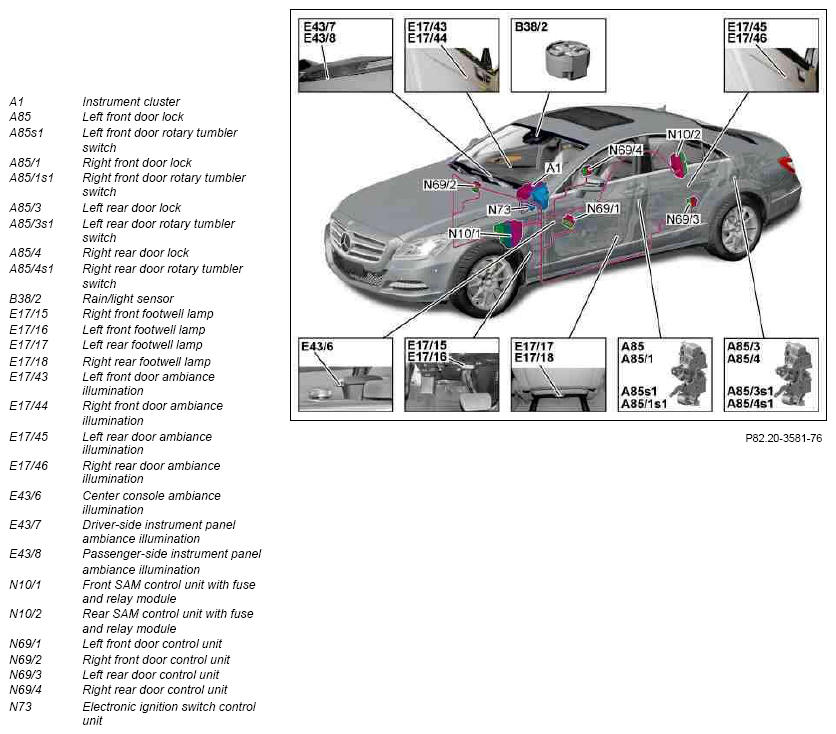

Ambiance illumination (with code (877) Ambiance illumination), shown in model 218.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for the radio | MODEL 218 up to model year 2015 with CODE 510 (Audio 20 with CD changer) MODEL 218 up to model year 2015 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122FQ |
| MODEL 218 as of model year 2015 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 218 as of model year 2015 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122FQM | |
| Component description for radio with auto pilot system | MODEL 218 with CODE 511 (Audio 50 APS with DVD changer) MODEL 218 with CODE 525 (MB Audio 50 APS radio) A2/56 |
GF82.61-P-4112FQ |
| Component description for COMAND controller unit | MODEL 218 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 218 up to model year 2013 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 218 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 218 up to model year 2013 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FQ |
| MODEL 218.3 as of model year 2013 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) MODEL 218.3 as of model year 2013 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 218.3 as of model year 2013 up to model year 2015 with CODE 528 (COMAND with DVD changer) MODEL 218.9 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) MODEL 218.9 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 218.9 up to model year 2015 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FQB | |
| MODEL 218 as of model year 2015 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FQM | |
| Component description for Audio/COMAND display | MODEL 218 without CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FQ |
| MODEL 218 with CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FQA | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501FQ |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FQ |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ |
| Component description for automatic air conditioning control and operating unit | MODEL 218 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FQA |
| MODEL 218 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FQB | |
| Active multicontour seat control unit component description | MODEL 218 with CODE 432 (Active multicontour seat) N32/19, N32/22 |
GF91.25-P-5220FQ |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FQ |
| Component description for overhead control panel control unit | MODEL 218 with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FQ |
| Component description for electronic overhead control panel | MODEL 218 without CODE 414 (Power glass tilting/sliding roof) N70/3 |
GF82.20-P-5217FQ |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FQ |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ |
| Component description for transmission mode control unit | MODEL 218 with TRANSMISSION 722.931 N145 |
GF27.19-P-1350AHR |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998FQ |
