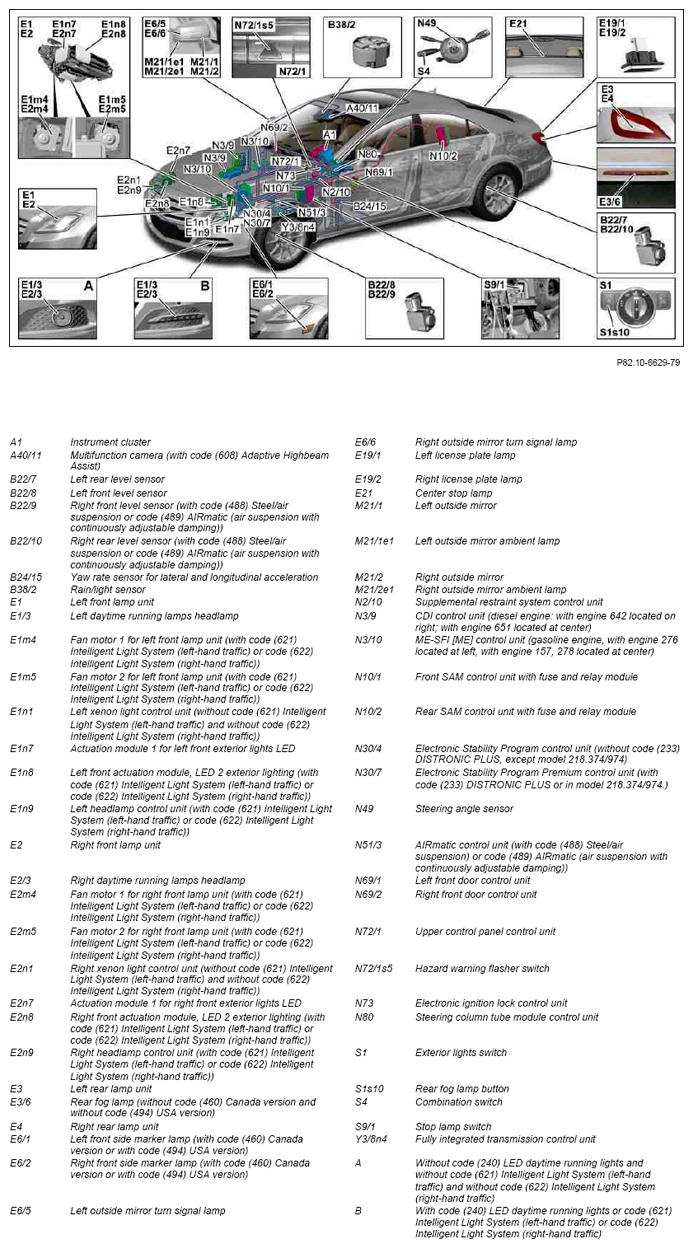

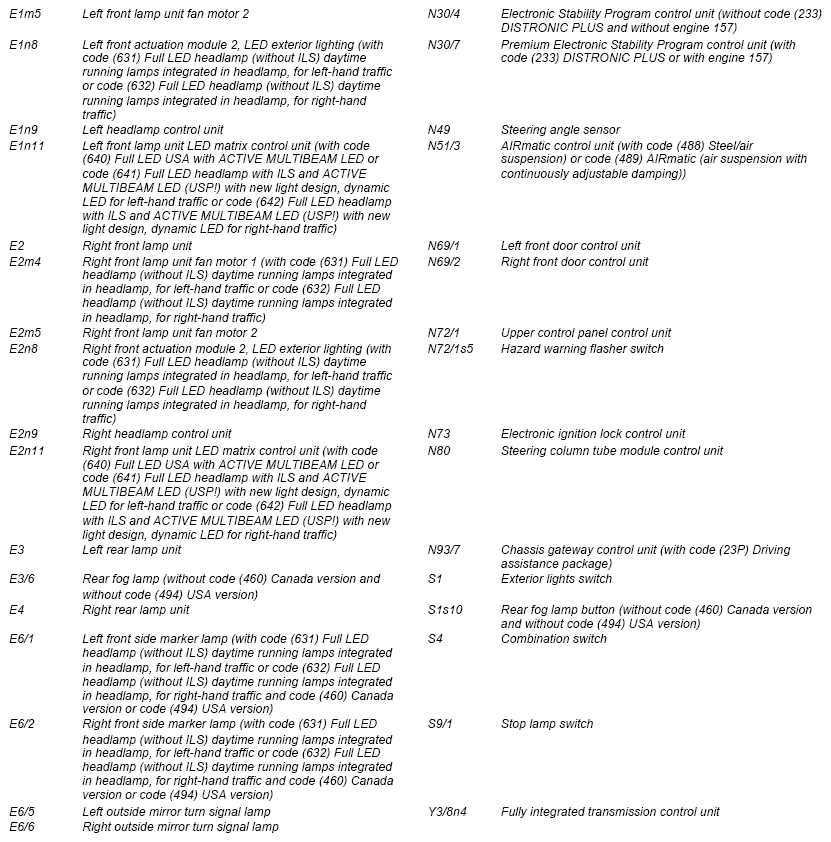

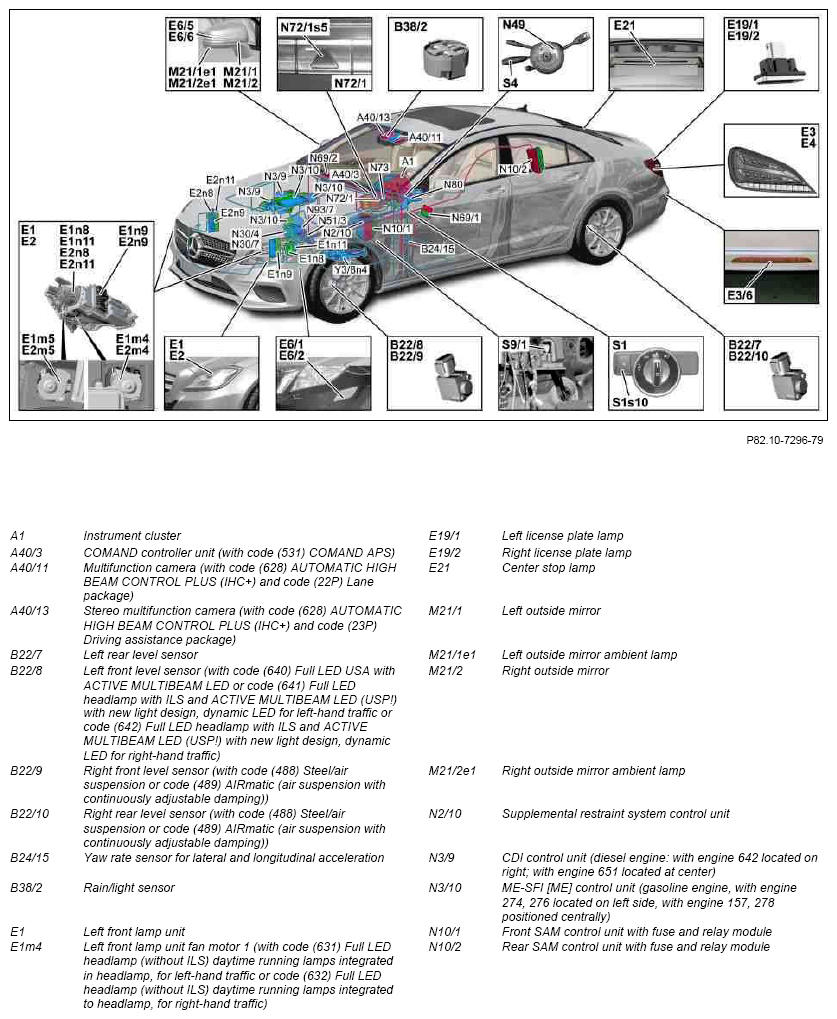

Overview of exterior lights system components - GF82.10-P-9998FQ
MODEL 218
Model 218 as of 01.09.2014
The following installed components for model 218.9 in combination with code (550) Trailer hitch are not shown:
- Trailer recognition control unit (N28/1)
- Trailer socket (X58)
Model 218.3 up to 31.08.2014
The following installed components for model 218.9 in combination with code (550) Trailer hitch are not shown:
- Trailer recognition control unit (N28/1)
- Trailer socket (X58)

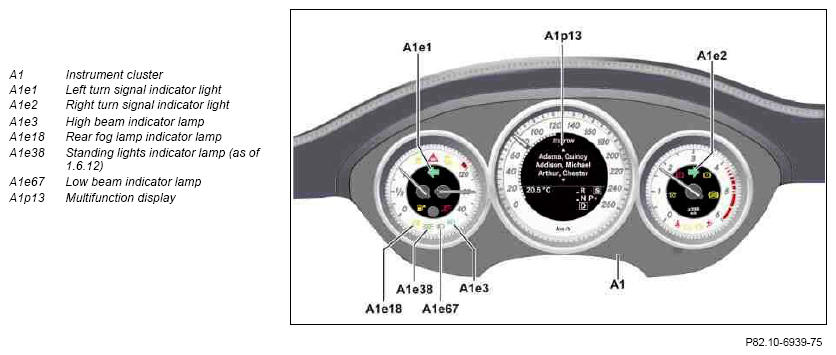

Displays in instrument cluster
The following components in the instrument cluster transmitting functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

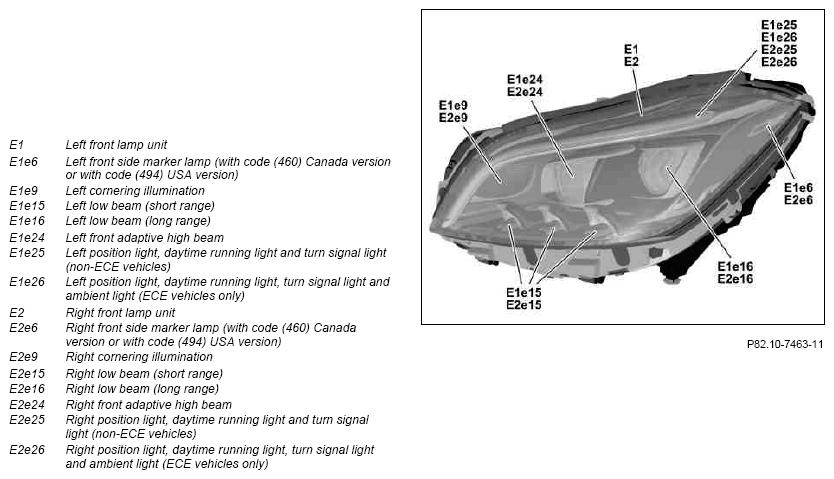

Lamp unit in full LED version (with code (640) Full LED USA with ACTIVE MULTIBEAM LED or code (641) Full LED headlamp with ILS and ACTIVE MULTIBEAM LED (USP!) with new light design, dynamic LED for left-hand traffic or code (642) Full LED headlamp with ILS and ACTIVE MULTIBEAM LED (USP!) with new light design, dynamic LED for right-hand traffic)
Lamp unit in full LED version (with code (640) Full LED USA with ACTIVE MULTIBEAM LED or code (641) Full LED headlamp with ILS and ACTIVE MULTIBEAM LED (USP!) with new light design, dynamic LED for left-hand traffic or code (642) Full LED headlamp with ILS and ACTIVE MULTIBEAM LED (USP!) with new light design, dynamic LED for right-hand traffic)

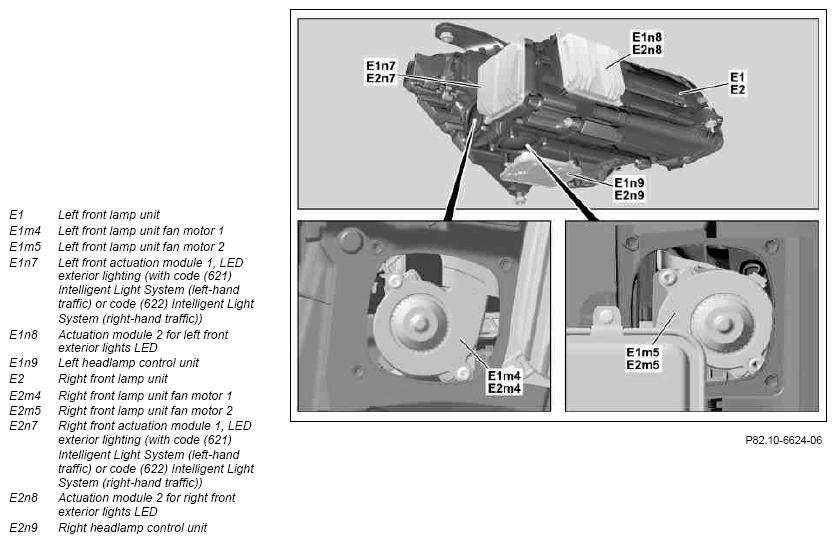

The following components in the front lamp units are not shown here:
- Left active curve lights position sensor (E1b1)
- Left light distribution position sensor (E1b2)
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3)
- Fan motor 2 for left front lamp unit (E1m5)
- Right active curve lights position sensor (E2b1)
- Right light distribution position sensor (E2b2)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3)
- Fan motor 2 for right front lamp unit (E2m5)

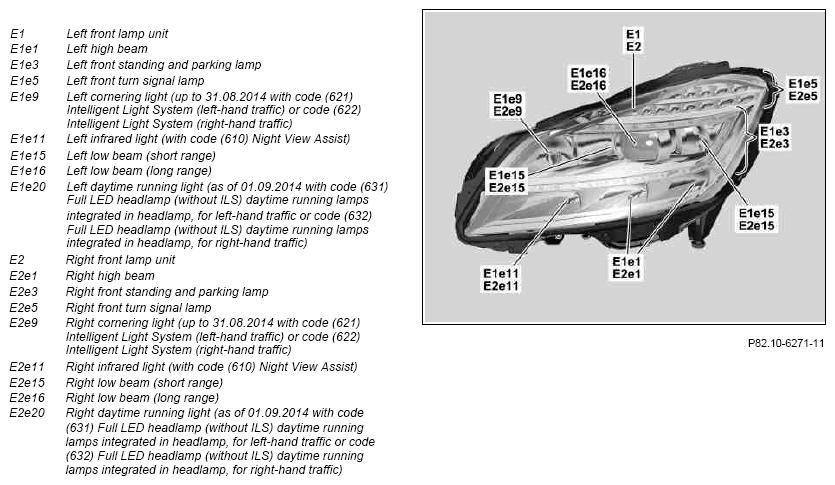

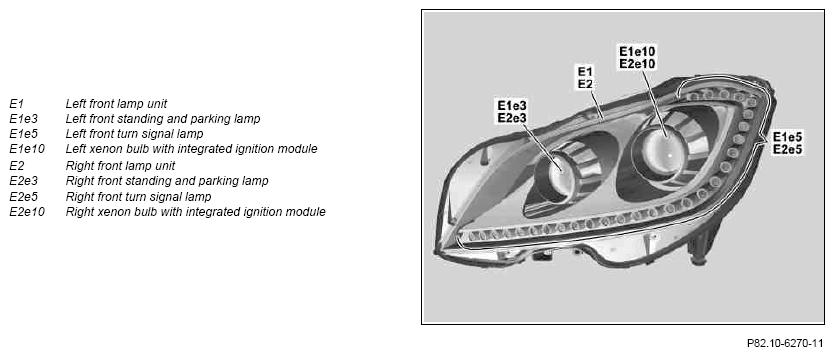

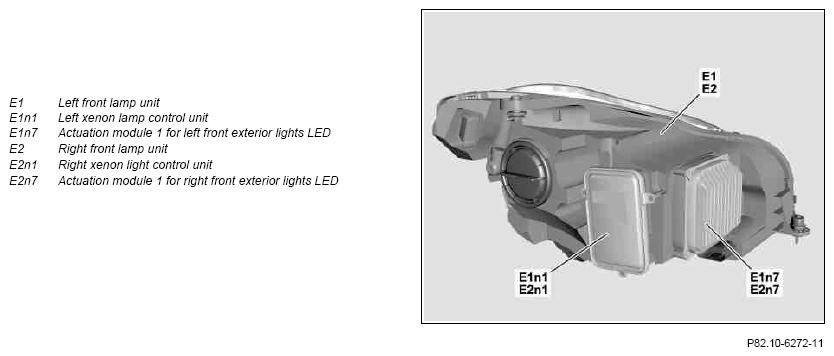

Xenon version lamp unit (without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic))
Xenon version lamp unit (without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic))
The following components in the front lamp units are not shown here:
- Left high beam solenoid (E1l1)
- Left headlamp range adjustment actuator motor (E1m1)
- Right high beam solenoid (E2l1)
- Right headlamp range adjustment actuator motor (E2m1)
Lamp unit in full LED version (up to 31.08.2014 with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic), as of 01.09.2014 with code (631) Full LED headlamp (without ILS) daytime running lamps integrated in headlamp, for left-hand traffic or code (632) Full LED headlamp (without ILS) daytime running lamps integrated in headlamp, for right-hand traffic)
Lamp unit in full LED version (up to 31.08.2014 with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic), as of 01.09.2014 with code (631) Full LED headlamp (without ILS) daytime running lamps integrated in headlamp, for left-hand traffic or code (632) Full LED headlamp (without ILS) daytime running lamps integrated in headlamp, for right-hand traffic)
The following components in the front lamp units are not shown here:
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve lights actuator motor (E1m2) (with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))
- Left active curve lights position sensor (E1b1) (with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve lights actuator motor (E2m2) (with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))
- Right active curve lights position sensor (E2b1) (with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))

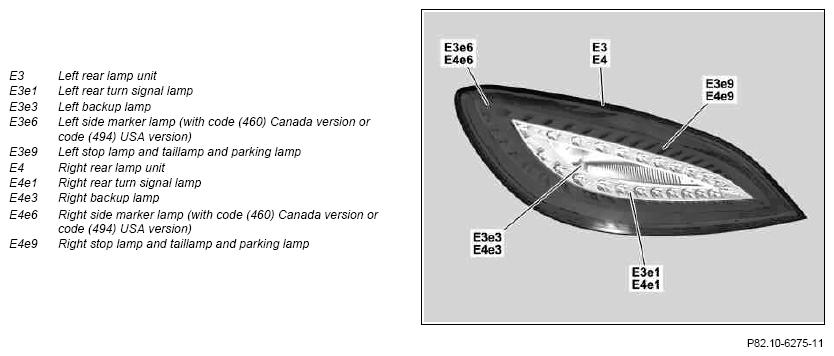

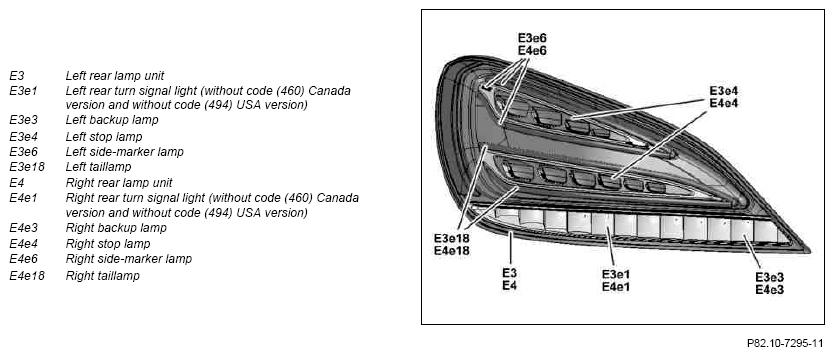

Taillamp as of 01.09.2014
Taillamp up to 31.08.2014
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for COMAND controller unit | MODEL 218 as of model year 2015 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FQM |
| Component description for multifunction camera | MODEL 218 as of model year 2015 with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) MODEL 218 up to model year 2015 with CODE 608 (Adaptive Highbeam Assist) A40/11, A40/13 |
GF54.21-P-3300FQ |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810FQ |
| Component description for Xenon light control unit | MODEL 218 without CODE 621 (Intelligent Light System (left-hand traffic)) without CODE 622 (Intelligent Light System (right-hand traffic)) E1n1, E2n1 |
GF82.10-P-2119FQ |
| Actuation module, LED exterior lighting, front, component description | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) MODEL 218 up to model year 2015 E1n7, E1n8, E2n7, E2n8 |
GF82.10-P-2160FQ |

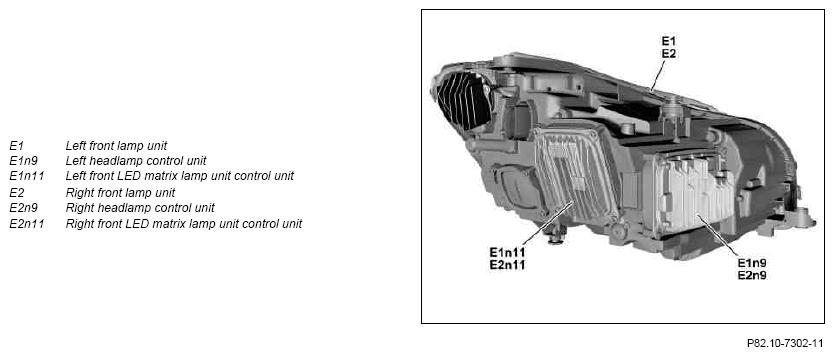

| Headlamp control unit, component description | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) without CODE 641 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for left-hand traffic) without CODE 642 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for right-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) without CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) without CODE 641 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for left-hand traffic) without CODE 642 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for right-hand traffic) MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System (right-hand traffic)) E1n9, E2n9 |
GF82.10-P-2020FQ |
| MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) without CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) MODEL 218 as of model year 2015 with CODE 641 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for left-hand traffic) without CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) MODEL 218 as of model year 2015 with CODE 642 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for right-hand traffic) without CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020FQA | |
| Front LED matrix lamp unit control unit, component description | MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) MODEL 218 as of model year 2015 with CODE 641 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for left-hand traffic) MODEL 218 as of model year 2015 with CODE 642 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for right-hand traffic) E1n11, E2n11 |
GF82.10-P-2025FQ |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FQ |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG |
| MODEL 218 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OM | |
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 274.9 N3/10 |
GF07.61-P-6000MRB |
| MODEL 218 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | |
| MODEL 218 with ENGINE 157.9 MODEL 218 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | |
| MODEL 218 with ENGINE 276.8 as of model year 2015 N3/10 |
GF07.61-P-6000MMP | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ |
| Component description for trailer recognition control unit | MODEL 218.9 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FQ |
| Component description for Electronic Stability Program control unit | MODEL 218 up to model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQ |
| MODEL 218 as of model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQA | |
| AIRmatic control unit, component description | MODEL 218 up to model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 218 up to model year 2014 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FQ |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FQ |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ |
| Component description for chassis gateway control unit | MODEL 218 as of model year 2015 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FQ |
| Component description for fully integrated transmission control unit | MODEL 218 with TRANSMISSION 722.9 (except 722.931) Y38n4 |
GF27.60-P-5165AHQ |
| MODEL 218 with TRANSMISSION 722.931 Y38n4 |
GF27.60-P-5165AHR | |
| Table of contents for function description of exterior lights | GF82.10-P-0999FQ |
