Remove/install stabilizer bar on front axle - AR32.20-P-0300LWX

MODEL 205 with CODE M005 (Vehicles with 4MATIC/all-wheel drive)

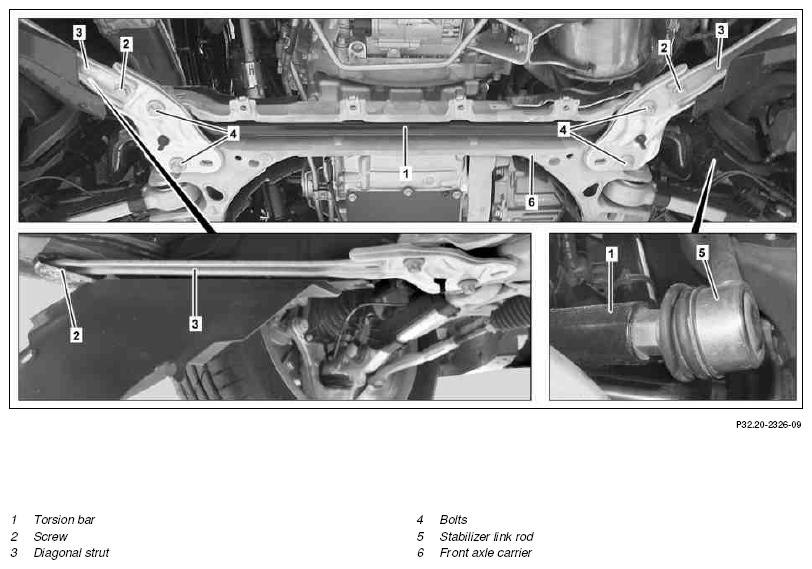

Fig 1: Front Axle Stabilizer Bar Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove center and rear engine compartment paneling		AR61.20-P-1105LW
2	Detach cover behind left and right diagonal struts (3)
3	Loosen bolts (4)	Screw/bolt, stabilizer bar to front axle carrier	*BA32.20-P-1004-02R
4	Remove bolts (2) and remove left and right diagonal strut (3)	Mount, support (strut)	*BA33.10-P-1002-01Q
5	Detach stabilizer bar link rods (5) from torsion bar (1)	Link rod to torsion bar	*BA32.20-P-1005-02R
6	Detach right suspension strut from spring control arm	MODEL 205 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) with CODE M005 (Vehicles with 4MATIC/all-wheel drive)	AR32.25-P-1017LWL
7	Unscrew bolts (4) and lower torsion bar (1)	Fit bolts (4) but do not tighten.
8	Extend torsion bar (1) and remove towards the rear	MODEL 205 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) with CODE M005 (Vehicles with 4MATIC/all-wheel drive) Push right suspension strut outwards to the side.
9	Install in the reverse order
