Remove/install rear shock absorber - AR32.25-P-0110LW

MODEL 205

MODEL 253

Shown on model 205 except code 489 (AIRmatic)

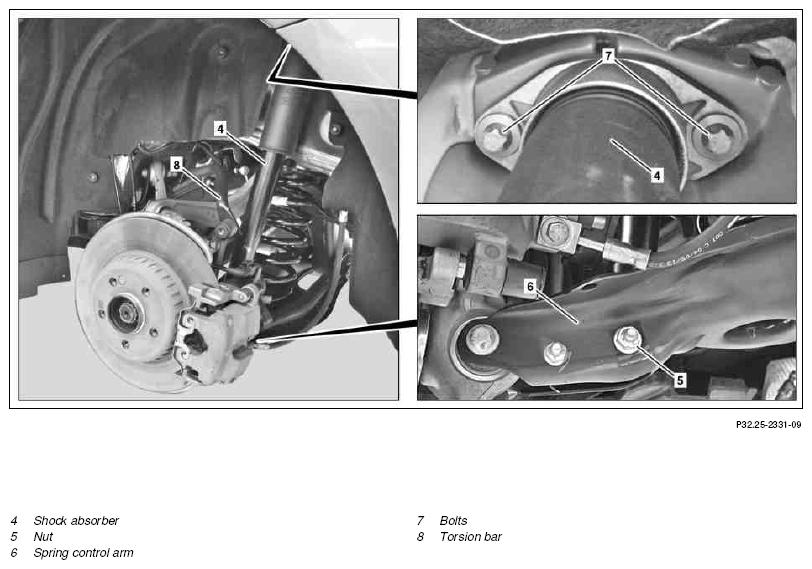

Fig 1: Rear Shock Absorber Remove/Install Components - Shown On Model 205 Except Code 489

Courtesy of MERCEDES-BENZ USA

Model 205 with code 489 (AIRmatic)

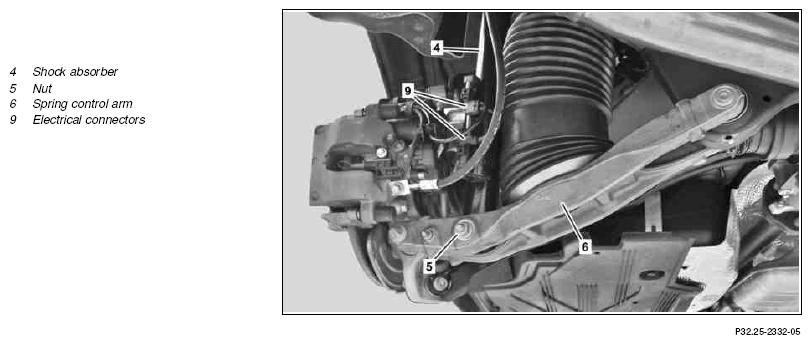

Fig 2: Rear Shock Absorber Remove/Install Components - Shown On Model 205 With Code 489

Courtesy of MERCEDES-BENZ USA

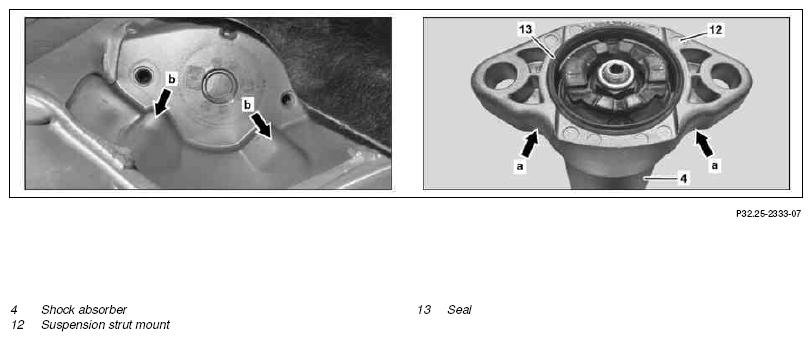

Fig 3: Rear Shock Absorber Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Detach rear complete wheel		AR40.10-P-1101A
2	Remove cover from spring control arm (6)
3	Detach fender liner in rear fender in area of shock absorber		AR88.10-P-1400LW
4	Disconnect electrical connectors (9) and place line to one side	Model 205 with code 489 (AIRMATIC) Model 253 with code 489 (AIR BODY CONTROL)
5	Unscrew nut (5) and pull bolt out of spring control arm (6)	Self-locking nut, shock absorber to spring control arm	*BA32.25-P-1001-03P
6	Remove bolts (7)	Screw/bolt, shock absorber to body	*BA32.25-P-1002-03P
7	Compress shock absorber (4) and remove upward	Ensure that the cutouts (arrows a) in suspension strut mount (12) match with the elevations (arrows b) in the body.
	Check
8	Check shock absorber (4), suspension strut mount (12) and seal (13) for damage and leakage	The shock absorber (4) is only available with suspension strut mount (12). If there are problems: ↓ Replace shock absorber (4).
9	Install in the reverse order

REAR AXLE SHOCK ABSORBER

Number	Designation				Model 205	Model 253
BA32.25-P-1001-03P	Self-locking nut, shock absorber to spring control arm	Air suspension	Stage 1	Nm	100	100
		Air suspension	Stage 2	∠°	90	90
		Steel suspension	Stage 1	Nm	60	60
		Steel suspension	Stage 2	∠°	60	60

REAR AXLE SHOCK ABSORBER

Number	Designation			Model 205	Model 253
BA32.25-P-1002-03P	Screw/bolt, shock absorber to body	Stage 1	Nm	15	15
BA32.25-P-1002-03P	Screw/bolt, shock absorber to body	Stage 2	Nm	36	36
