Disassemble/assemble suspension strut - AR32.25-P-1018LW
MODEL 205 without CODE 489 (AIRMATIC)

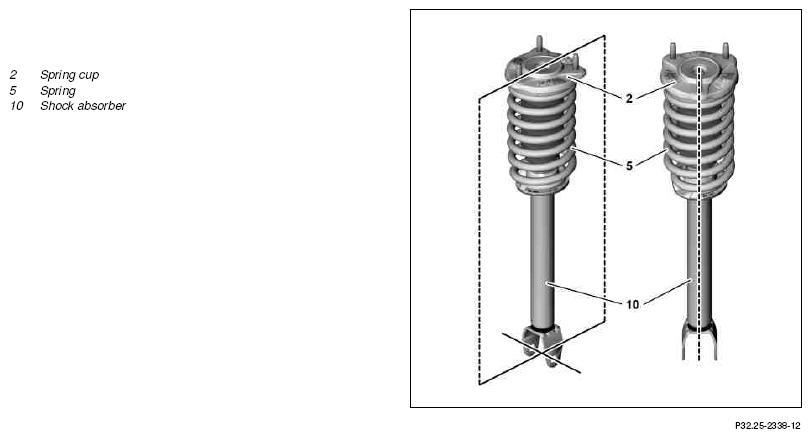

Alignment of spring cup (2) to shock absorber (10)
| Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension | Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. | AS00.00-Z-0001-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||

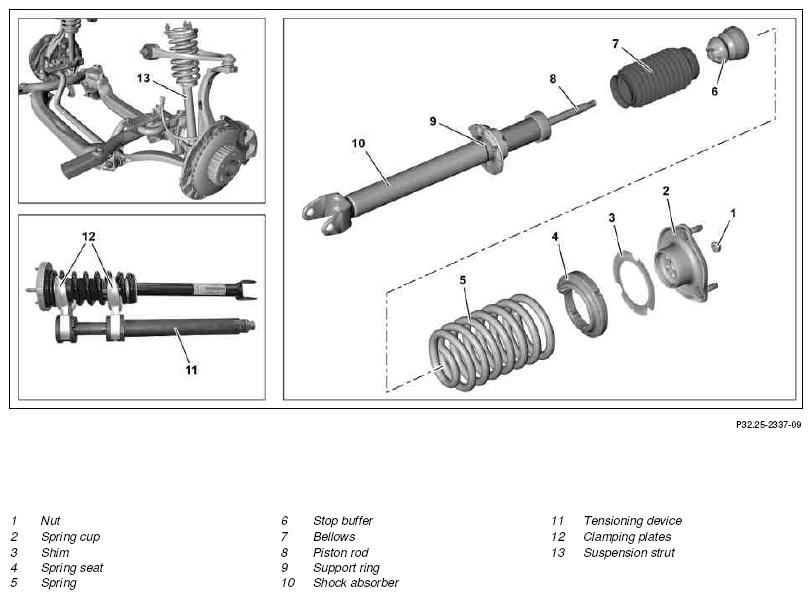

| 1 | Remove suspension strut (13) | AR32.25-P-1017LW | |
| Disassemble/assemble | |||
| 2 | Clamp tensioning device (11) in vise and insert clamping plates (12) | Fig 6 | |
Clamping plate |
Fig 3 | ||
Clamping plates |
Fig 5 | ||
| 3 | Insert suspension strut (13) into tensioning device (11) | ||
| 4 | Place match marks on spring (5) and clamping plates (12) using adhesive tape | ||
| 5 | Clamp spring (5) until spring cup (2) is relieved of load | ||
| 6 | Unscrew nut (1) and remove spring cup (2) together with shim (3) and spring seat (4) | ||
| *BA32.25-P-1003-04P | |||
| Fig 4 | |||
| 7 | Remove shock absorber (10) from spring (5) | ||
| 8 | Remove boot (7) and stop buffer (6) | ||
| 9 | Release tensioning device (11) and remove spring (5) | L1 = Install two shims (3). L2 = Install one shim (3). L3 = Do not install any shims (3). |
|
| Check | |||
| 10 | Check shock absorber (10) | AR32.25-P-0121CW | |
| 11 | Check boot (7), stop buffer (6) and spring seat (4) for signs of wear | ||
| 12 | Assemble in the reverse order | ||
| Install | |||
| 13 | Install suspension strut (13) | AR32.25-P-1017LW | |
| 14 | Check headlamp adjustment | After installation of new parts. | |
| AP82.10-P-8260E |
SUSPENSION STRUTS
| Number | Designation | MODEL 205 | |
|---|---|---|---|
| BA32.25-P-1003-04P | Nut, piston rod to head bearing | Nm | 39 |
