Check AIRmatic for leaks - AR32.22-P-8100LW

MODEL 205 with CODE 489 (AIRMATIC)

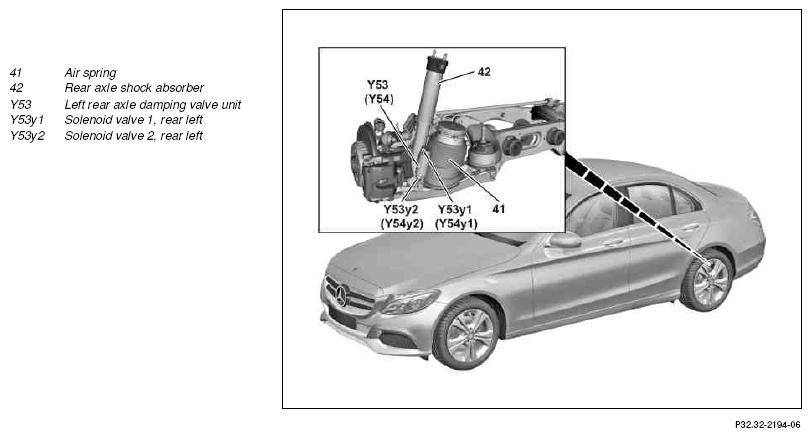

Fig 1: Checking Airmatic For Leaks (1 Of 3)

Courtesy of MERCEDES-BENZ USA

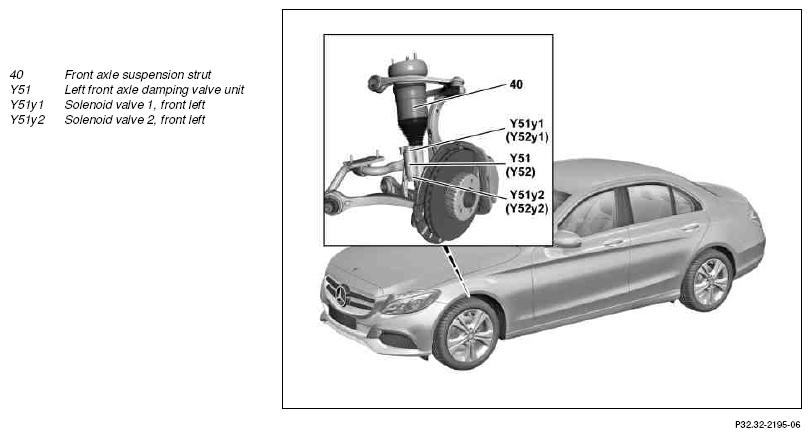

Fig 2: Checking Airmatic For Leaks (2 Of 3)

Courtesy of MERCEDES-BENZ USA

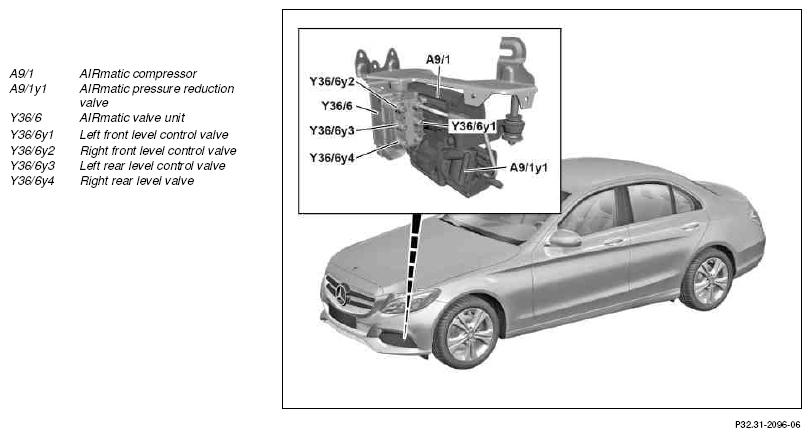

Fig 3: Checking Airmatic For Leaks (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Notes on AIRmatic		AH32.22-P-1000-02LW
	Remove/install
1	Remove front engine compartment paneling		AR61.20-P-1105LW
2	Detach front left fender liner in area of bumper		AR88.10-P-1300LW
	Check
3	Spray pressure line connections with leak detector spray	Spray the following areas: Right and left connections at front axle suspension strut (40) Right and left connections at air spring (41) All connections at AIRmatic valve unit (Y36/6) All connections at AIRmatic compressor (A9/1) Area around dust boots at top and bottom of right and left front axle suspension strut (40) Area around dust boots at top and bottom of right and left air spring (41) Wait for roughly 10 to 15 minutes after spraying the compressed-air lines. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately. If pressure line connections are defective: ↓ Repair affected AIRmatic pressure line connections.
			AR32.22-P-2001-02LW
		Pressure line to compressor/valve unit (P)	*BA32.22-P-1004-03G
		Pressure line to rear air suspension/valve unit	*BA32.22-P-1005-03G
		Pressure line to front suspension strut/valve unit	*BA32.22-P-1006-03G
		Socket wrench bit	Figure
		Knife	Figure
4	Install in the reverse order

AIR SUSPENSION

Number	Designation		MODEL 205
BA32.22-P-1004-03G	Pressure line to compressor/valve unit (P)	Nm	3, 5

AIR SUSPENSION

Number	Designation		MODEL 205
BA32.22-P-1005-03G	Pressure line to rear air suspension/valve unit	Nm	2

AIR SUSPENSION

Number	Designation		MODEL 205
BA32.22-P-1006-03G	Pressure line to front suspension strut/valve unit	Nm	2

Fig 4: Identifying Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Socket Wrench Bit (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA
