Remove/install torsion bar of stabilizer linkage on rear axle - AR32.20-P-3405LWI
MODEL 205.386/387/486/487
MODIFICATION NOTES
| 08.04.2016 | Bolt, torsion bar linkage to torsion bar | BA32.20-P-1001-04S |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on handling, transport and storage of ceramic brake disks | Model 205.386/387/486/487 with code B07 (Ceramic brake system) | AH42.10-P-9406-13A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove left or right rear shock absorber | AR32.25-P-0110LW | |

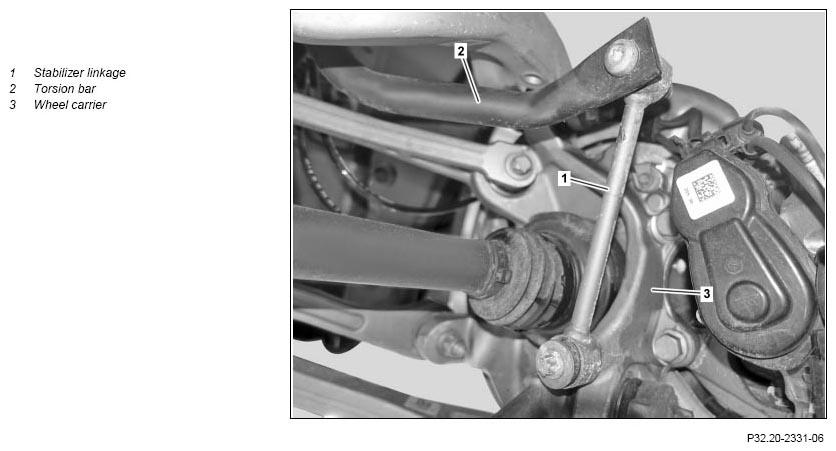

| 2 | Detach stabilizer linkage (1) from torsion bar (2) | *BA32.20-P-1001-04S | |
| 3 | Detach stabilizer linkage (1) from wheel carrier (3) and remove | *BA32.20-P-1004-04S | |
| Check | |||
| 4 | Check stabilizer linkage (1) for damage and wear | If there are problems ↓ Replace stabilizer linkage (1) |
|
| 5 | Install in the reverse order |
REAR AXLE TORSION BAR
| Number | Designation | Model 205 except code 489 (AIRMATIC) | |
|---|---|---|---|
| BA32.20-P-1001-04S | Bolt, torsion bar linkage to torsion bar | Nm | 63 |
REAR AXLE TORSION BAR
| Number | Designation | Model 205 except code 489 (AIRMATIC) | |
|---|---|---|---|
| BA32.20-P-1004-04S | Bolt, torsion bar linkage to wheel carrier | Nm | 50 |
