Remove/install front stabilizer bar link rod - AR32.35-P-3328LWX
Model 205 with CODE M005 (4MATIC)
Model 253

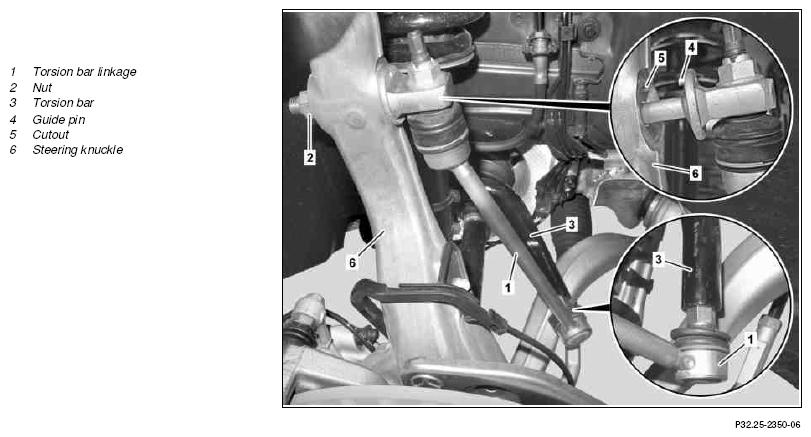

Shown on model 205
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove left or right front wheel-and-tire assembly | AR40.10-P-1101A | |
| 2 | Unscrew nut (2) | *BA32.20-P-1003-02T | |
with code M005 (4MATIC) Nut, torsion bar linkage to steering knuckle |
*BA32.20-P-1006-02R | ||
| 3 | Detach torsion bar linkage (1) from stabilizer bar (3) | *BA32.20-P-1002-02T | |
with code M005 (4MATIC) Torsion bar linkage to torsion bar |
*BA32.20-P-1005-02R | ||
| 4 | Pull torsion bar linkage (1) out of steering knuckle (6) | The guide pin (4) must engage in the cutout (5) of the steering knuckle (6). Otherwise the steering knuckle (6) will be damaged. |
|
| Check | |||
| 5 | Check elastomer bearings and ball head of torsion bar linkage (1) for condition and damage | If damage is present: ↓ Replace torsion bar linkage (1). |
|
| 6 | Install in the reverse order |
FRONT AXLE TORSION BAR
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA32.20-P-1002-02T | Torsion bar linkage to torsion bar | Nm | 100 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA32.20-P-1003-02T | Nut, torsion bar linkage to steering knuckle | Nm | 80 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 205 with 4MATIC | |
|---|---|---|---|
| BA32.20-P-1005-02R | Torsion bar linkage to torsion bar | Nm | 100 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 205 with 4MATIC | |
|---|---|---|---|
| BA32.20-P-1006-02R | Nut, torsion bar linkage to steering knuckle | Nm | 80 |
