Remove/install stabilizer bar at front axle - AR32.35-P-2200LWX

MODEL 205, 213

with code M005 (4MATIC) Model 253

Shown on model 205.0

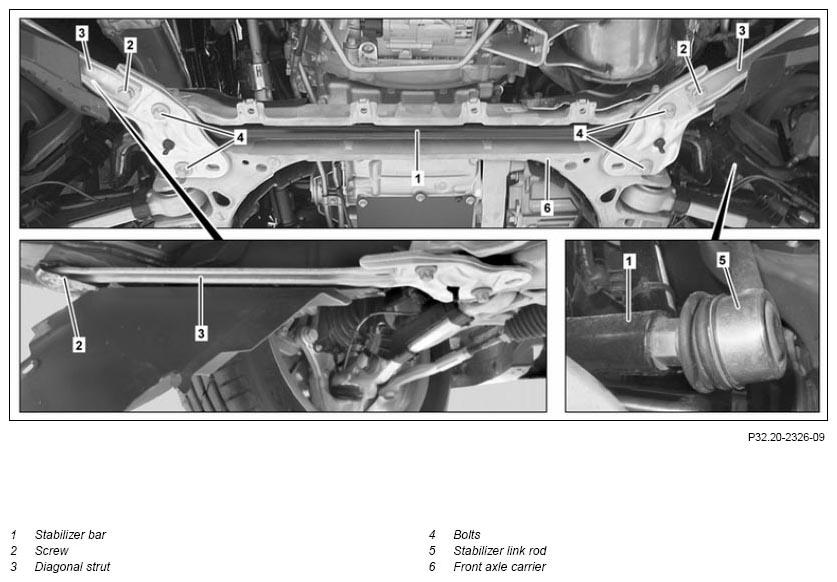

Fig 1: Stabilizer Bar At Front Axle Remove/Install Components - Shown On Model 205.0
G11139139Courtesy of MERCEDES-BENZ USA

Model 205.4

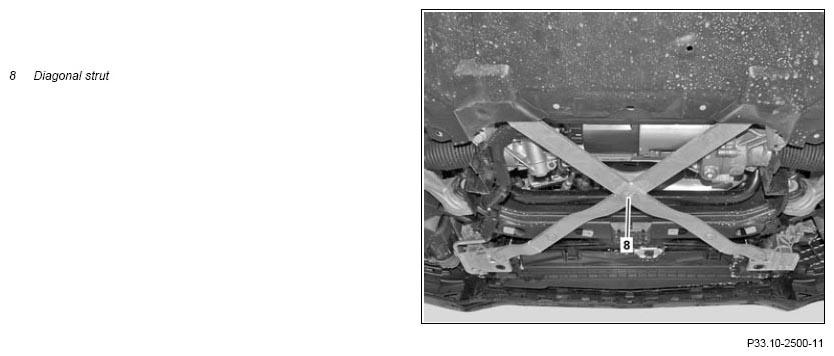

Fig 2: Identifying Diagonal Strut
G11139140Courtesy of MERCEDES-BENZ USA
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1.1 Remove center and rear engine compartment paneling Model 205.0/1/2/3, 213 with code M005 (4MATIC) Model 253
Model 205.0/1/2/3 with code M005 (4MATIC) Model 253		 AR61.20-P-1105LW
    Model 213 with code M005 (4MATIC) AR61.20-P-1105LWE
1.2 Remove engine compartment paneling at center, rear and front Model 205.4 with code M005 (4MATIC) AR61.20-P-1105LW
2 Remove diagonal strut (8) Model 205.4 with code M005 (4MATIC)
TORQUE SPECIFICATION Bolt, front diagonal strut to longitudinal member		 *BA61.10-P-1007-01L
    TORQUE SPECIFICATION Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console *BA61.10-P-1006-01L
3 Detach cover behind left and right diagonal struts (3)
4 Loosen bolts (4) TORQUE SPECIFICATION Model 205, 213 with code M005 (4MATIC) Bolt, torsion bar to front axle carrier *BA32.20-P-1004-02R
    TORQUE SPECIFICATION Model 253 Bolt, torsion bar to front axle carrier *BA32.20-P-1001-02T
5 Remove bolts (2) and remove left and right diagonal strut (3) TORQUE SPECIFICATION Mount, support (strut) *BA33.10-P-1002-01Q
6 Detach stabilizer bar link rod (5) at left and right from stabilizer bar (1) TORQUE SPECIFICATION Model 205, 213 with code M005 (4MATIC) Torsion bar linkage to torsion bar *BA32.20-P-1005-02R
    TORQUE SPECIFICATION Model 253 Torsion bar linkage to torsion bar *BA32.20-P-1002-02T
7 Detach right suspension strut from spring control arm Model 205, 213 with code 489 (AIRMATIC) with code M005 (4MATIC)
Model 253 with code 489 (AIR BODY CONTROL)		 AR32.25-P-1017LWL
8 Unscrew screws/bolts (4) and lower stabilizer bar (1) INSTALLATION IMPORTANT Fit bolts (4) but do not tighten.
9 Remove stabilizer bar (1) toward rear IMPORTANT Model 205, 213
with code 489 (AIRMATIC) with code M005 (4MATIC)
Model 253 with code 489 (AIR BODY CONTROL) Push right suspension strut outwards to the side.
10 Install in the reverse order
FRONT AXLE TORSION BAR

Number Designation Model 253
BA32.20-P-1001-02T Bolt, torsion bar to front axle carrier Nm 120
FRONT AXLE TORSION BAR

Number Designation Model 253
BA32.20-P-1002-02T Torsion bar linkage to torsion bar Nm 100
FRONT AXLE TORSION BAR

Number Designation Model 205 with 4MATIC Model 213 with 4MATIC
BA32.20-P-1004-02R Bolt, torsion bar to front axle carrier Nm 120 120
FRONT AXLE TORSION BAR

Number Designation Model 205 with 4MATIC Model 213 with 4MATIC
BA32.20-P-1005-02R Torsion bar linkage to torsion bar Nm 100 100
FRONT AXLE CARRIER

Number Designation Model 205 Model 213
BA33.10-P-1002-01Q Mount, support (strut) Nm 110 110
FRONT AXLE CARRIER

Number Designation Model 253
BA33.10-P-1002-01Q Mount, support (strut) Nm 110
FRAME FLOOR ASSEMBLY

Number Designation Model 205
BA61.10-P-1006-01L Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console Nm 50
FRAME FLOOR ASSEMBLY

Number Designation Model 205
BA61.10-P-1007-01L Bolt, front diagonal strut to longitudinal member Nm 50
