Remove/install inner tie rod with axial joint - AR46.40-P-0201LW

MODEL 205

MODEL 253

Shown on model 205

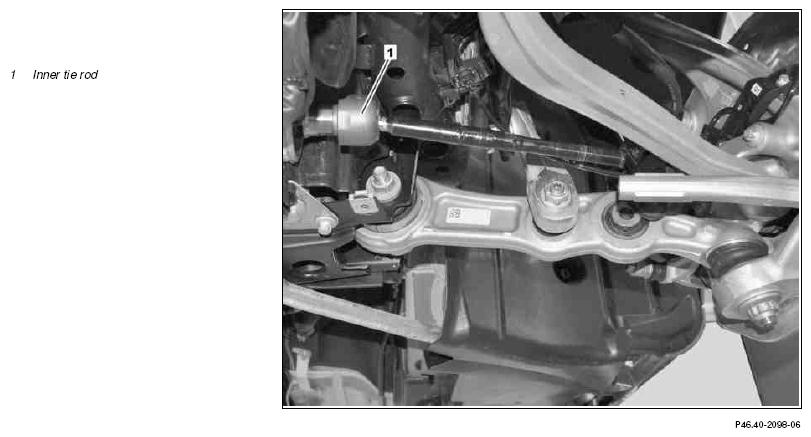

Fig 1: Inner Tie Rod With Axial Joint Remove/Install Components - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove bellows		AR46.40-P-9998LW
2	Unscrew inner tie rod (1)	Inner tie rod to rack-and-pinion steering	*BA46.40-P-1003-01P
		Open end wrench	Fig 2
3	Install in the reverse order

TIE ROD

Number	Designation		Model 205	Model 253
BA46.40-P-1003-01P	Inner tie rod to rack-and-pinion steering	Nm	110	105

Fig 2: Identifying Open End Wrench (201 589 00 01 00)

Courtesy of MERCEDES-BENZ USA
