Check and replace rubber boot - AR46.40-P-0400LW

MODEL 205

MODEL 253

Shown on model 205, left side of vehicle

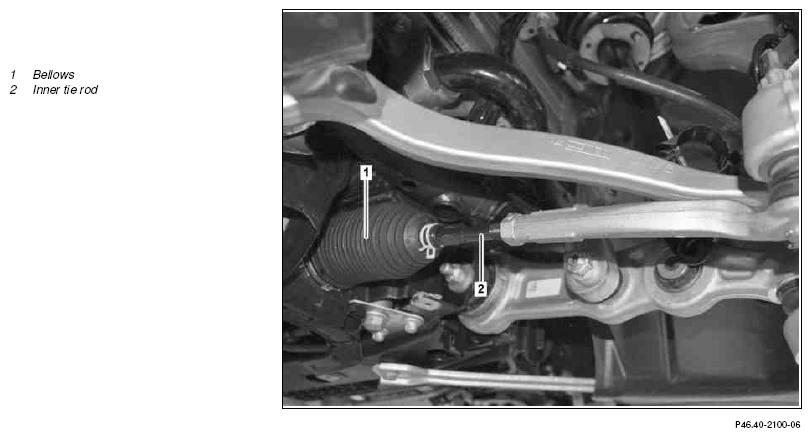

Fig 1: Bellows And Inner Tie Rod - Shown On Model 205

Courtesy of MERCEDES-BENZ USA

	Check
1	Raise vehicle		AR00.60-P-1002LWG
2	Stretch boots (1) by turning steering to maximum steering angle and check for damage (cracks, holes, chafe marks and intrusions)	Do not check the boots (1) by pressing in or around the raised beads. Otherwise damage and leakages may occur. If damage is present: ↓ Replace the boots (1).
			AR46.40-P-9998LW
3	Lower vehicle		AR00.60-P-1002LWG
