Remove/install sidebag unit in the rear - AR91.60-P-0694CLW

MODEL 205.3/4

with code 298 (Rear sidebag with belt force limiter)

Shown on right side of vehicle on model 205.3

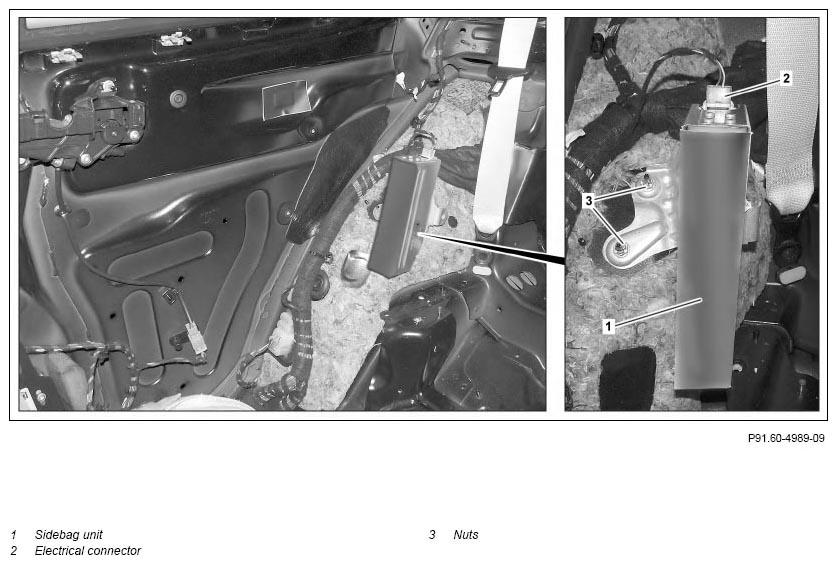

Fig 1: Rear Sidebag Unit Remove/Install Components - Shown On Right Side Of Vehicle On Model 205.3

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove rear passenger compartment side trim panel	Model 205.3 with code 298 (Rear sidebag with belt force limiter)	AR68.30-P-4780CLW
		Model 205.4 with code 298 (Rear sidebag with belt force limiter)	AR68.30-P-4784LWR
2	Disconnect battery ground line		AR54.10-P-0003LW
3	Release and disconnect electrical connector (2) at sidebag unit (1)	Ensure correct engagement of electrical connector (2) at sidebag unit (1). Otherwise, proper operation of the sidebag unit (1) cannot be ensured.
4	Unscrew nuts (3)	Nut, rear sidebag unit to body	*BA91.60-P-1005-01O
5	Remove sidebag unit (1)
6	Install in the reverse order
7	Check Supplemental Restraint System (SRS) with diagnostic system	When replacing sidebag unit (1).
			AD00.00-P-2000-04B
