Remove/install evaporator - AR83.30-P-5540LW
MODEL 205
MODEL 253
Shown on MODEL 205 with CODE 581 (Automatic air conditioning)
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01A | ||
| Procedure for a damaged or leaky air conditioning system | AH83.30-N-0004-01A | ||
| Notes on handling refrigerant R134a | AH83.30-N-0003-01A | ||
| Remove/install | |||
| 1 | Disassemble air conditioner housing | AR83.30-P-5201LW | |

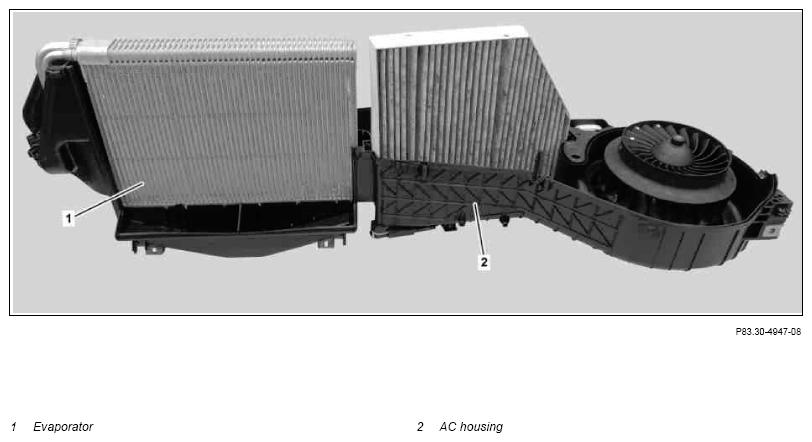

| 2 | Remove evaporator (1) from evaporator housing (2) | ||
| 3 | Install in the reverse order |
