Remove/install inertization system line to engine compartment - AR86.10-P-0219LWE

MODEL 205, 213, 238, 253 with ENGINE 177, 274, 276

with CODE 2U8 (Alternative refrigerant)

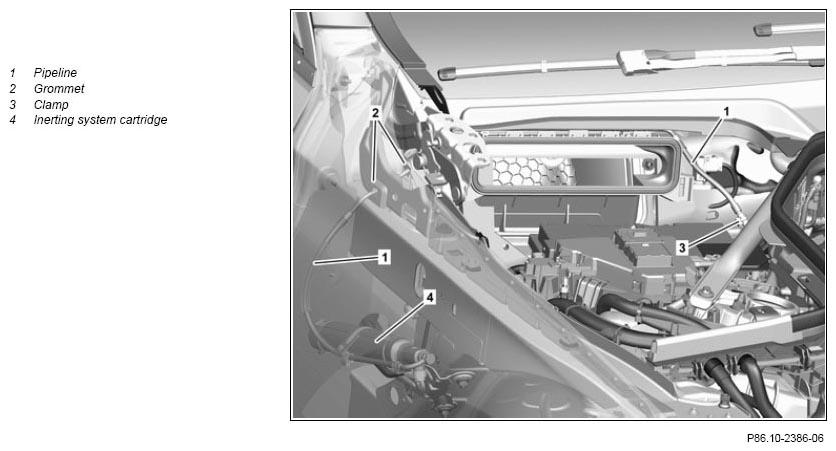

Fig 1: Engine Compartment Inertization System Line Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear fender liner in right front fender	Model 213, 238 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant)	AR88.10-P-1300LWE
		Model 205, 253 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant)	AR88.10-P-1300LW
2	Open clamp (1) on pipe and remove pipe (1) from inerting system cartridge (4)	Replace clamp on pipe (1).
3	Remove air duct segment with dust filter below right engine compartment cover	Model 205, 213, 238, 253 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant)
		Model 213, 253 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant)	AP83.00-P-8381C
		Model 205 with engine 177, 274, 276 with code 2U8 (Alternative refrigerant)	AP83.00-P-8381B
4	Open clamp (3) and remove pipe (1) from distributor	Replace hose clamp (3).
5	Expose pipe (1) and remove	Observe installation position of grommets (2).
	Check
6	Check pipe (1) for damage and plugging	In the event of complaints ↓ Replace pipe (1).
7	Install in the reverse order
