Overview of system components for gasoline injection and ignition system with direct injection - GF07.70-P-9998MNA
ENGINE 177.9 in MODEL 205
Vehicle view of model 205.0

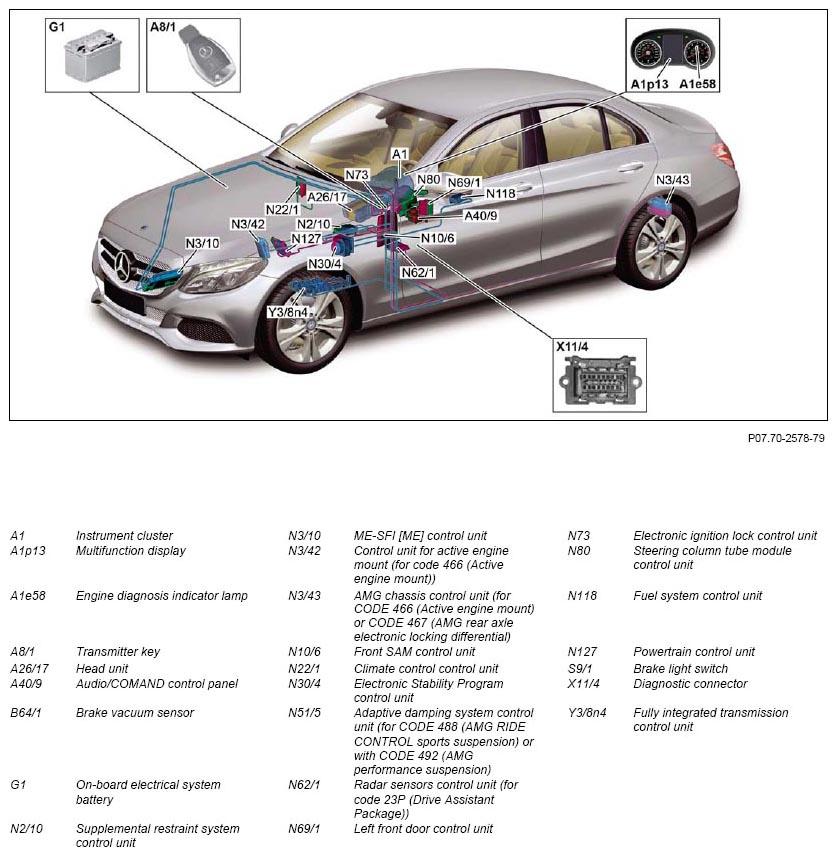

Fig 1: Overview Of Gasoline Injection And Ignition System Components With Direct Injection - Vehicle View Of Model 205.0

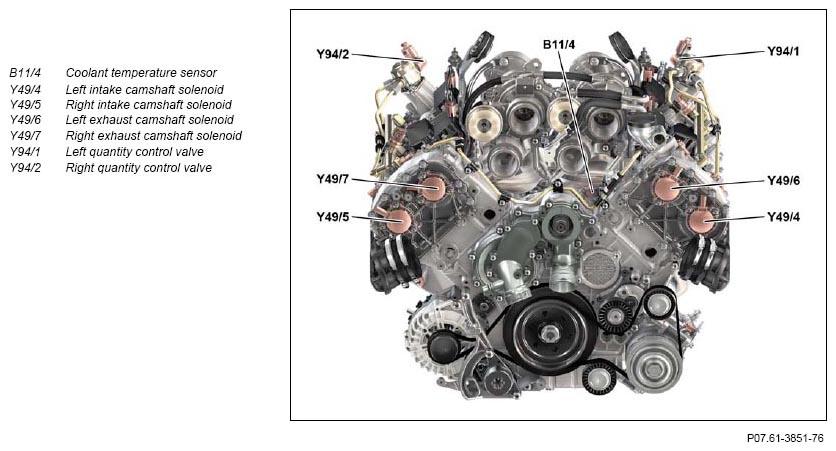

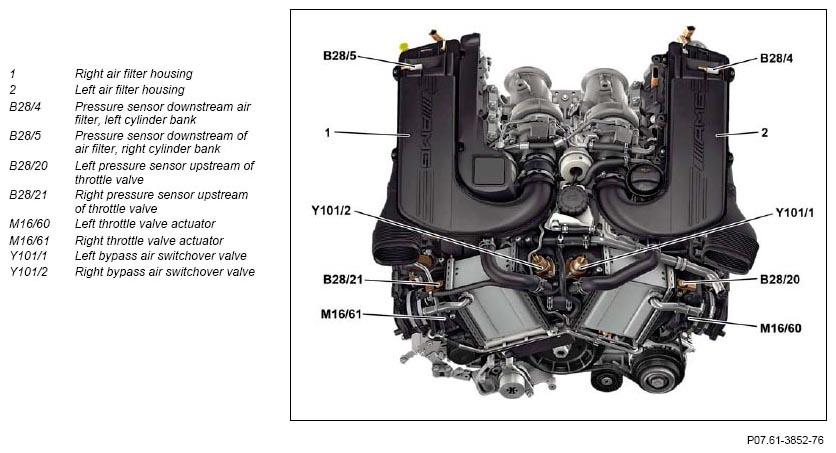

View of engine from top front

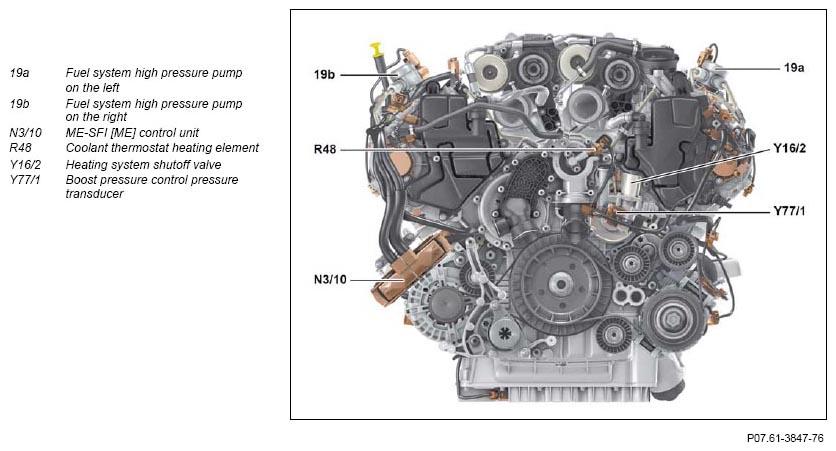

Front view of engine

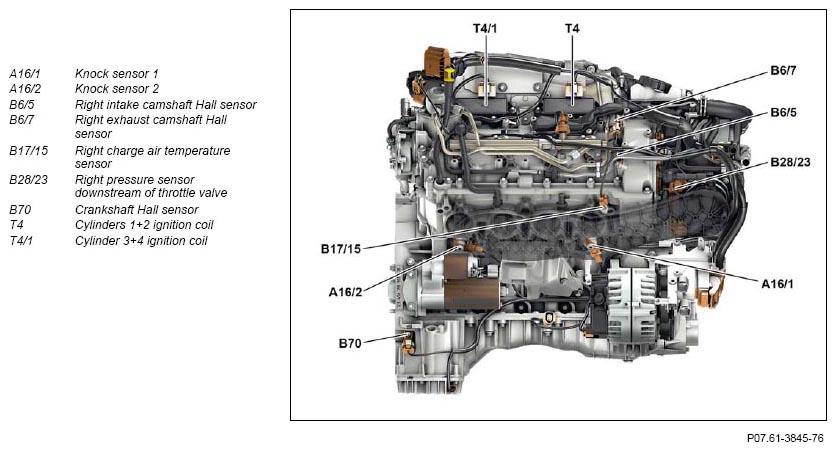

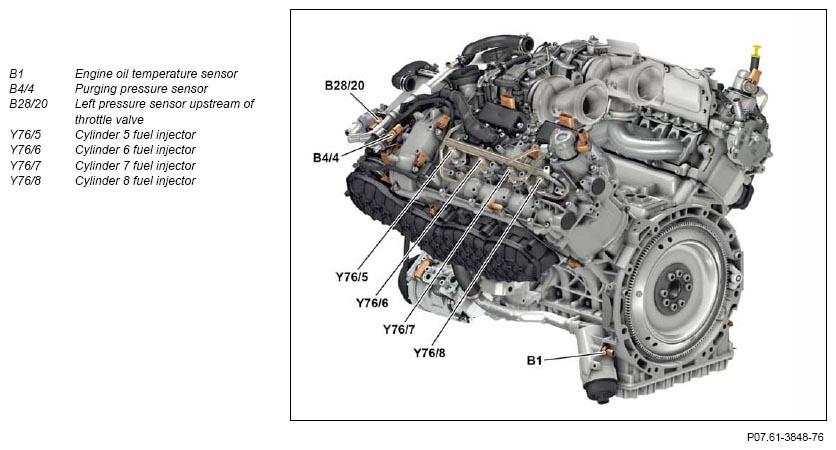

View of engine from right

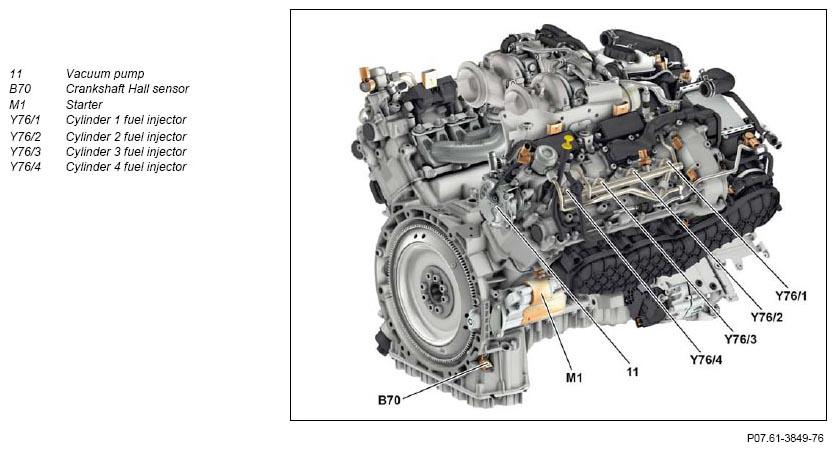

View of engine from right rear

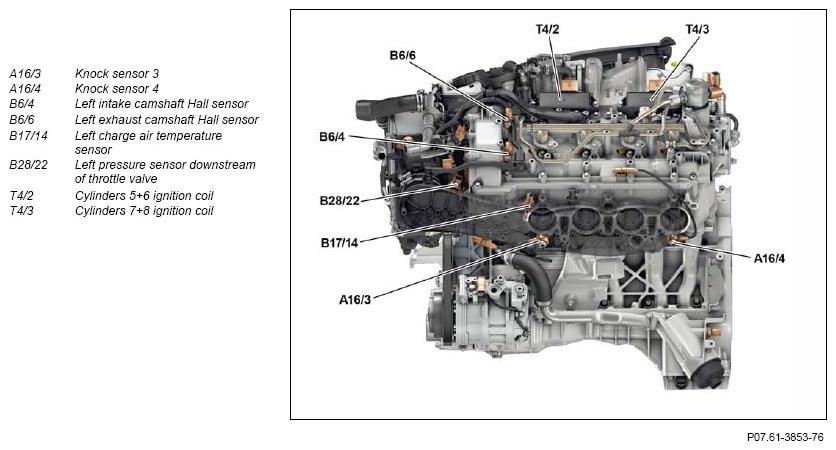

View of engine from left
View of engine from left rear

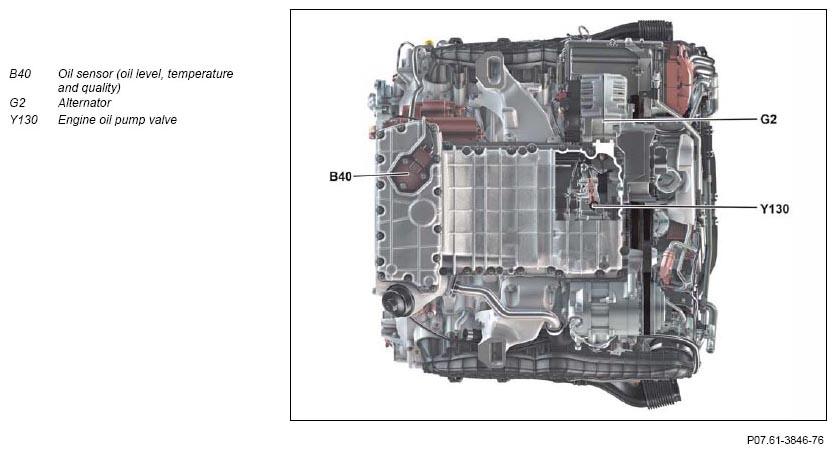

View of engine from below

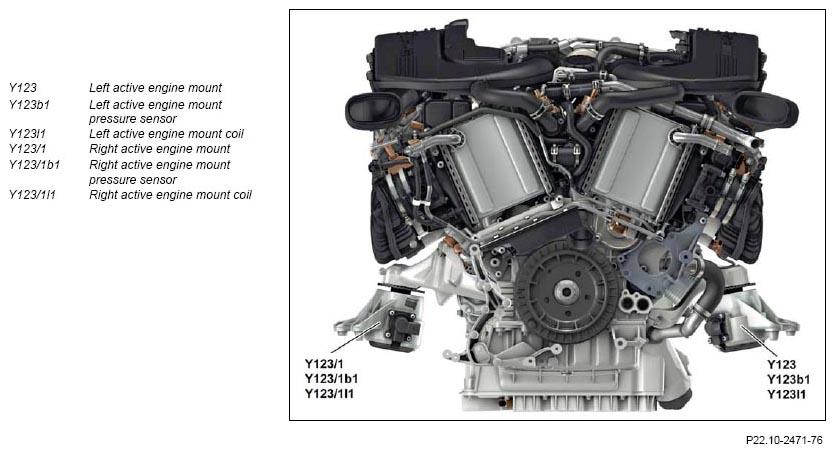

View of engine from the front (for code 466 (Active engine mount))

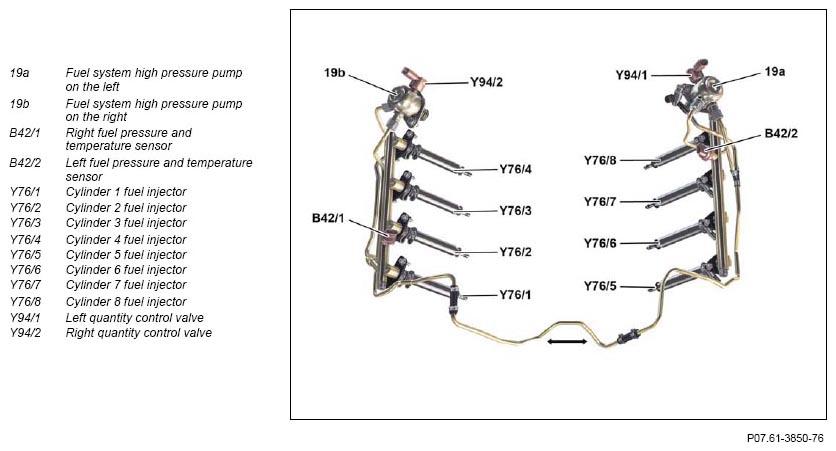

View of the fuel high-pressure circuit

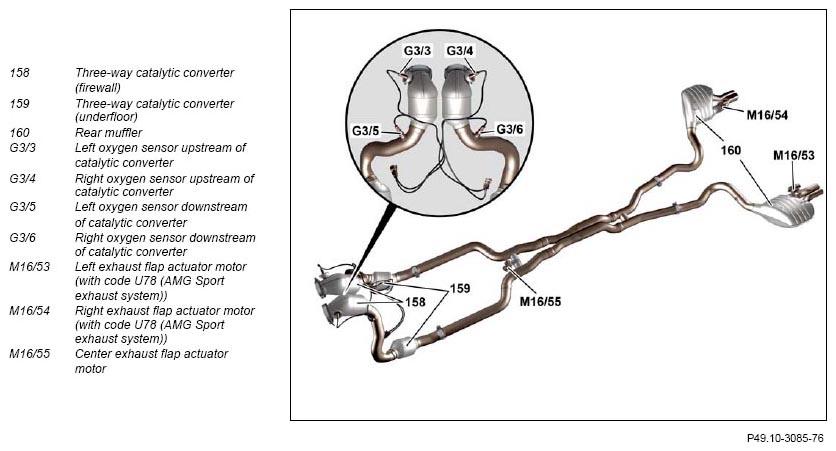

View of exhaust system

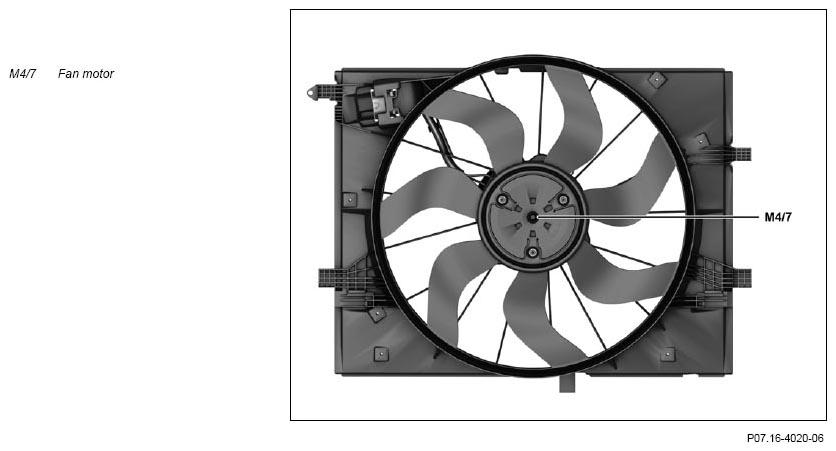

View of fan motor from rear

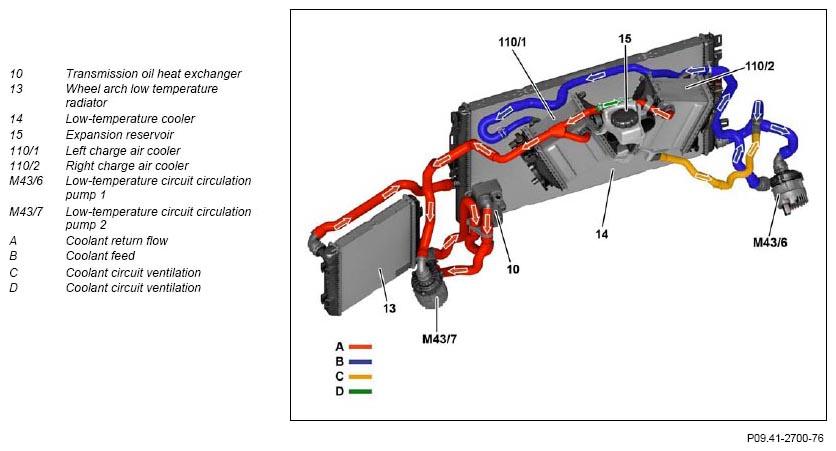

View of low-temperature circuit from rear

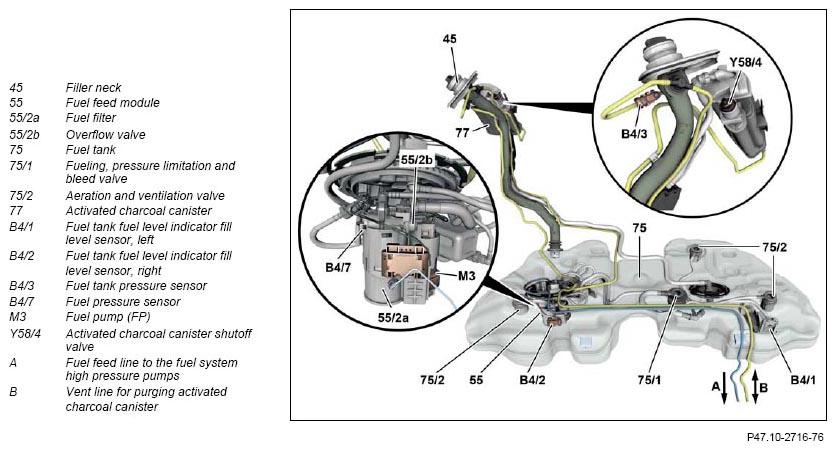

Phantom view of fuel tank (with CODE 494 (USA version))

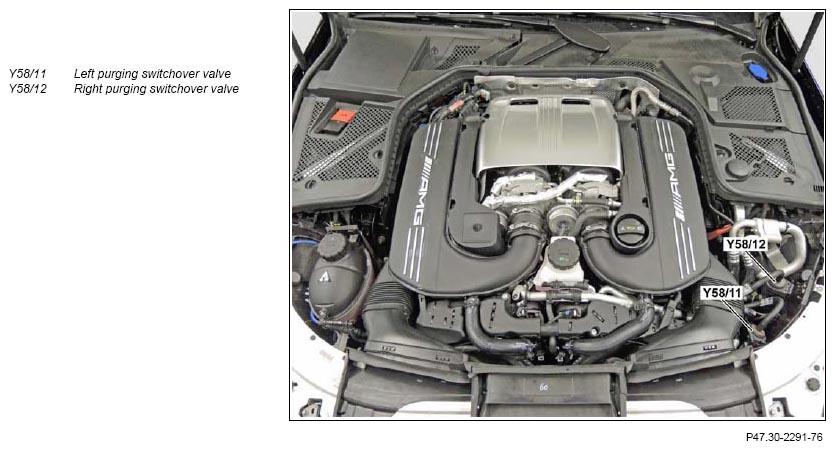

View of engine compartment from above

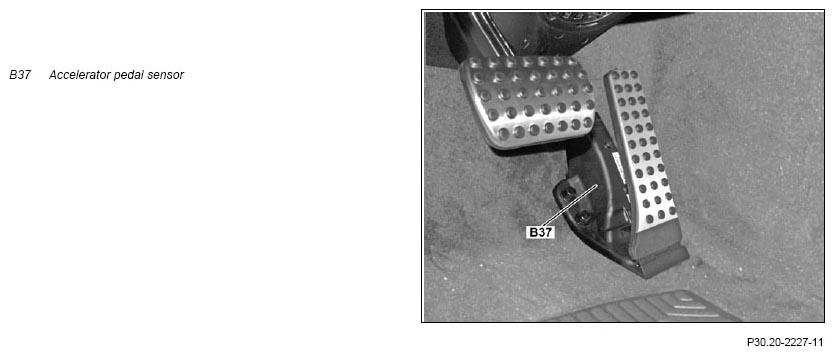

View of driver side footwell

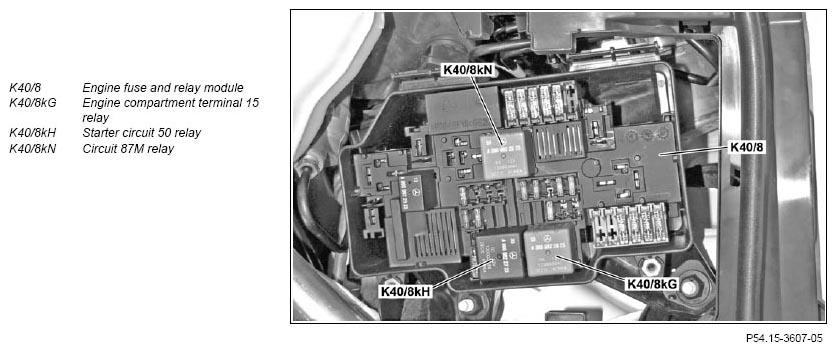

View of engine fuse and relay module in engine compartment at the rear left

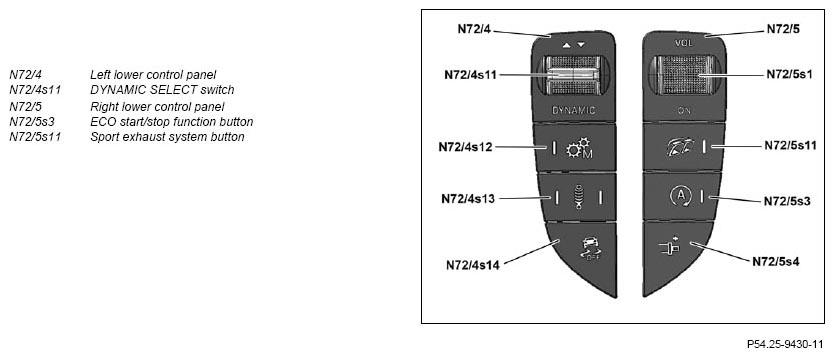

View of lower control panels
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 205 with engine 177.9 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 with engine 177.9 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 with engine 177.9 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-Q-3140RFB | ||
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNA | |
| Active engine mount control unit, component description | Engine 177.9 in model 205 with code 466 (Active engine mount) N3/42 |
GF22.10-P-2001MNA | |
| AMG sports suspension control unit, component description | Model 205 with engine 177.9 with code 466 (Active engine mount) Model 205 with engine 177.9 with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Climate control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RF | |
| Component description for adaptive damping system control unit | Model 205 with engine 177.9 with code 488 (Steel/air suspension) Model 205 with engine 177.9 with code 492 (AMG performance suspension) N51/5 |
GF32.32-P-1010RF | |
| Component description for radar sensors control unit | Model 205 with engine 177.9 with code 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Lower control panel, component description | N72/4, N72/4s11, N72/5, N72/5s3, N72/5s11 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MNA | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MNA | |
| Component description for fully integrated transmission control unit | Y38n4 | GF27.60-P-5165AIA | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNA |
