Remove/install catalytic converter - AR49.10-P-5500MNA

ENGINE 177 in MODEL 205

MODIFICATION NOTES

18.5.15 Align clamp between ATL and catalytic converter. Operation step 10
26.5.15 Clamp, front exhaust system to turbocharger   BA49.10-P-1001-02E

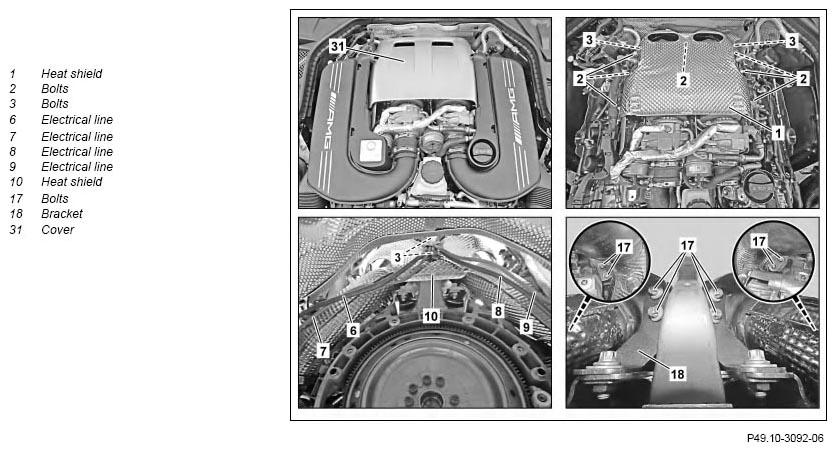

Fig 1: Catalytic Converter Remove/Install Components (1 Of 2)
G11139203Courtesy of MERCEDES-BENZ USA

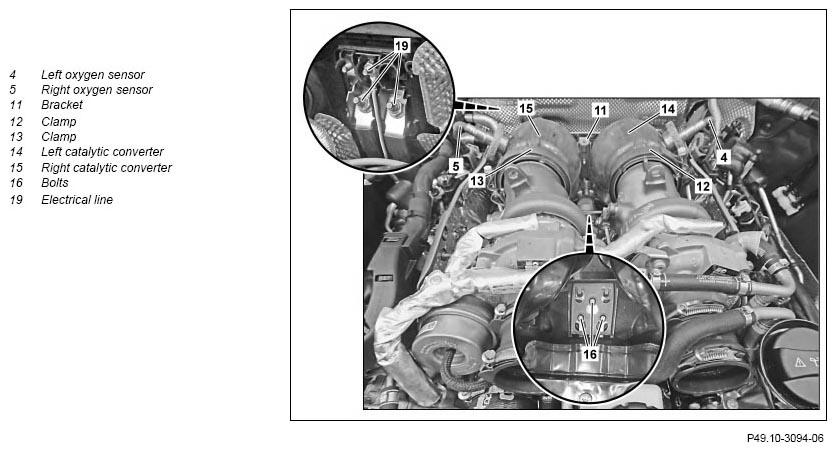

Fig 2: Catalytic Converter Remove/Install Components (2 Of 2)
G11139204Courtesy of MERCEDES-BENZ USA
DANGER Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove transmission   AR27.10-P-0505MNA
2 Disconnect electrical connection for left oxygen sensor (4) or right oxygen sensor (5) downstream of catalytic converter   AR07.04-P-0021MNA
3 Detach left and right CAT (14, 15) at center exhaust system   AR49.10-P-7283MNA
4 Remove left and right air filter housing   AR09.10-P-1150MNA
5 Remove cover (31) INSTALLATION IMPORTANT Check for correct seating of the cover (31).
6 Remove screw/bolts (2) and remove heat shield (1) upwards TORQUE SPECIFICATION Bolt, top heat shield to side bracket/heat shield *BA09.40-P-1006-01ZA
7 Unclip electrical lines (6, 7, 8, 9) from heat shield (10)
8 Remove screw/bolts (3) and remove heat shield (10) upwards TORQUE SPECIFICATION Bolt, rear heat shield to bracket *BA09.40-P-1008-01ZA
    TORQUE SPECIFICATION Bolt, top heat shield to side bracket/heat shield *BA09.40-P-1006-01ZA
9 Remove left oxygen sensor (4) and right oxygen sensor (5)   AR07.04-P-0021MNA
10 Remove clamp (12) or clamp (13) INSTALLATION IMPORTANT If one one-piece clamp (12) or clamp (13) it installed, this must be replaced. For a two-piece clamp (12) or clamp (13) replace the bolt and nuts.
    TORQUE SPECIFICATION Clamp, front exhaust system to turbocharger
For installation of the clamp (12) or clamp (13):

Align clamp (12) or clamp (13) between the ATL and catalytic converter.
*BA49.10-P-1001-02E
      AR09.40-P-6018-01MNA
    TORQUE SPECIFICATION Clamp, front exhaust system to turbocharger *BA49.10-P-1001-02E
    SPECIAL TOOL Caulking bolt Fig 3
11 Remove screw/bolts (17) from bracket (18) TORQUE SPECIFICATION Screw/bolt, butterfly bracket to catalytic converter *BA49.10-P-1003-02E
12 Remove screw/bolts (16) from bracket (11) TORQUE SPECIFICATION Bolt, bracket for rear heat shield to crankcase *BA09.40-P-1005-01ZA
13 Remove bracket (18) and bracket (11) upwards
14.1 Detach steering coupling from rack-and-pinion steering For removal the left CAT (14) AR46.10-P-8000LW
14.2 Detach heat shield over electrical lines (19) For removal the right CAT (15)
15 Detach electrical lines (19) and place to one side For removal the right CAT (15)
TORQUE SPECIFICATION Nut, positive line to busbar on firewall
*BA54.18-P-1001-02C
16 Remove left CAT (14) or right CAT (15) downwards
17 Remove left oxygen sensor (4) and right oxygen sensor (5) When replacing the left or right CAT (14, 15) AR07.04-P-0021MNA
CLEAN Clean
18 Remove combustion and corrosion residue at separating points
19 Install in the reverse order
INSPECT Check
20 Check installation position and unobstructed movement of all parts of the exhaust system
DANGER Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
21 Perform an engine test run and check exhaust system for leaktightness
TURBOCHARGER

Number Designation Engine 177.980
BA09.40-P-1005-01ZA Bolt, bracket for rear heat shield to crankcase Nm 9
TURBOCHARGER

Number Designation Engine 177.980
BA09.40-P-1006-01ZA Bolt, top heat shield to side bracket/heat shield Nm 9
TURBOCHARGER

Number Designation Engine 177.980
BA09.40-P-1008-01ZA Bolt, rear heat shield to bracket Nm 9
EXHAUST SYSTEM

Number Designation Engine 177.9 in model 205
BA49.10-P-1001-02E Clamp, front exhaust system to turbocharger Nm 20
EXHAUST SYSTEM

Number Designation Engine 177.9 in model 205
BA49.10-P-1003-02E Screw/bolt, butterfly bracket to catalytic converter Nm 20
WIRING HARNESS

Number Designation Model 205
BA54.18-P-1001-02C Nut, positive line to busbar on firewall M6 Nm 8
M8 Nm 16
Fig 3: Identifying Caulking Bolt (103 589 01 39 00)
G09975032Courtesy of MERCEDES-BENZ USA
