Remove/install ME-SFI control unit - AR07.08-P-1000MNA
ENGINE 177 in MODEL 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

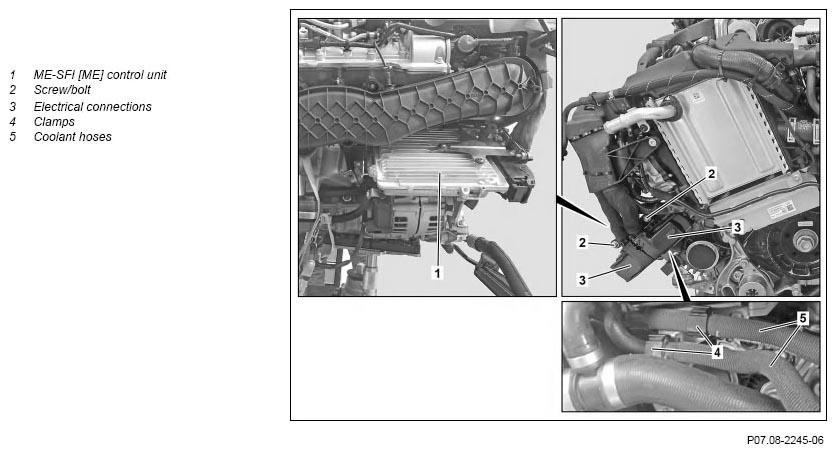

| Remove/install | |||
| 1 | Read out variant coding of NE-SFI [ME] control unit with diagnostic system | When installing a new ME-SFI [ME] control unit (1). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove fan unit | AR20.40-P-5050MNA | |
| 3 | Attach radiator protective plate to cooling module | ||
| WF58.50-P-0110-04A | |||
| 4 | Remove screw/bolt (2) | *BA15.18-P-1004-01G | |
| 5 | Disconnect electrical connections (3) | ||
| 6 | Open clamps (4) and place coolant hose (5) to one side | ||
| 7 | Pull ME-SFI [ME] control unit (1) to the front and upwards from the holder | ||
| 8 | Install in the reverse order | ||
| 9 | Perform sensor adaptation with diagnostic system | When installing a new ME-SFI [ME] control unit (1). | |
| 10 | Unfasten transport protection from ME-SFI [ME] control unit | When installing a new ME-SFI [ME] control unit (1). | |
| 11 | Personalize and activate ME-SFI [ME] control unit (1) | When installing a new ME-SFI [ME] control unit (1). | |
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out an engine test run |
ENGINE WIRING HARNESS
| Number | Designation | ENGINE 177 | |
|---|---|---|---|
| BA15.18-P-1004-01G | Bolt, engine wiring harness to ME-SFI [ME] control unit | Nm | 9 |
