Remove/install 360 degree camera in outside mirror - AR54.65-P-3002LW
MODEL 205.0/1/2, 253.9 as of model year 2016 with CODE 501 (360° camera)
MODEL 205.3/4, 213, 253.3 with CODE 501 (360° camera)

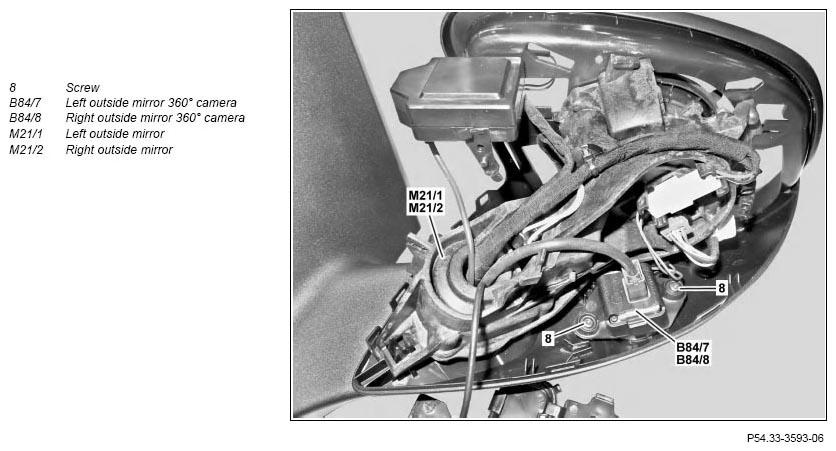

Shown on left outside mirror (M21/1) on model 205.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove cover on left outside mirror (M21/1) or right outside mirror (M21/2) | AR88.70-P-9040LF | |
| 2 | Loosen telephone antenna and place to one side with connected line | Model 205.0/1/2, 253.9 as of model year 2016 with code 274 (Telephone antenna) with code 501 (360° camera) Model 205.3/4, 213, 253.3 with code 274 (Telephone antenna) with code 501 (360° camera) |
AR82.62-P-0011LW |
| 3 | Disconnect electrical connection from 360° camera for left outside mirror (B84/7) or from 360° camera on right outside mirror (B84/8) | ||
| 4 | Remove bolt (8) | ||
| 5 | Remove 360° camera on left outside mirror (B84/7) or 360° camera on right outside mirror (B84/8) | ||
| 6 | Install in the reverse order | ||
| 7 | Commission camera for left outside mirror 360° camera (B84/7) or camera for right outside mirror 360° camera (B84/8) using diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) or the camera for the right outside mirror 360° camera (B84/8) was replaced. | |
| AD00.00-P-2000-04B | |||
| 8.1 | Calibrate camera for left outside mirror 360° camera (B84/7) or camera for right outside mirror 360° camera (B84/8) using diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) or the camera for the right outside mirror 360° camera (B84/8) was removed. | |
| AD00.00-P-2000-04B | |||
| 8.2 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the camera for the left outside mirror 360° camera (B84/7) and the camera for the right outside mirror 360° camera (B84/8) were removed. | |
| AD00.00-P-2000-04B |
