Retrofit COMAND Online - AN82.85-P-0009LW

MODEL 205.0/2 with CODE 522 (Audio 20 CD with touchpad) without CODE 460 (Canada version) without CODE 494 (USA version) without CODE 498 (Japanese version) without CODE 520 (Audio 20 USB) without CODE 531 (COMAND APS) without CODE 830 (China version)

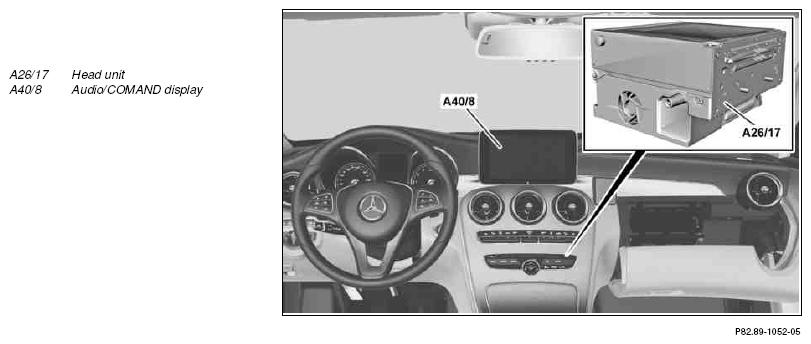

Fig 1: Head Unit And Audio/COMAND Display

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove Audio 20 CD head unit (A26/17)
			AR82.85-P-1100LW
	The Audio 20 CD head unit (A26/17) is no longer required.
2	Remove 7-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722LW
	The 7-inch Audio/COMAND display (A40/8) is no longer required.
3	Remove glove compartment
			AR68.10-P-1400LW
4	Remove instrument cluster	MODEL 205 except CODE 355 (Preinstallation for navigation retrofit) except CODE 357 (SD card navigation)
			AR54.30-P-6015LW
5	Remove USB electrical connector in front stowage compartment	MODEL 205 except CODE 355 (Preinstallation for navigation retrofit) except CODE 357 (SD card navigation)
			AR82.60-P-1032LW
	Install
6	Install global positioning system (GPS) antenna.	MODEL 205 except CODE 355 (Preinstallation for navigation retrofit) except CODE 357 (SD card navigation)
			AN82.61-P-7474-04LW
		Self-adhesive Velcro fastener	*BR00.45-Z-1084-02A
7	Install WLAN antenna for COMAND		AN82.85-P-0005-05LW
8	Install multimedia connection unit in front stowage compartment	MODEL 205 except CODE 355 (Preinstallation for navigation retrofit) except CODE 357 (SD card navigation)
			AR82.60-P-1032LW
9	Install 8.4-inch Audio/COMAND display (A40/8)
			AR82.60-P-7722LW
10	Install COMAND Online head unit (A26/17)
			AR82.85-P-1100LW
11	Install remaining parts
12	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	MODEL 205 with CODE 355 (Preinstallation for navigation retrofitting) or with CODE 357 (SD card navigation) Delete:  CODE 355 (Preinstallation for navigation retrofit) or CODE 357 (SD card navigation) Delete:  CODE 522 (Audio 20 CD with touchpad) Add:  CODE 531 (COMAND APS) CODE 815 (DVD player)
13	Document retrofitted equipment through VeDoc	Attach note "COMAND Online retrofitted as per AN82.85-P-0009LW" under field organization texts to design group 82.
14	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04B
15	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding with XENTRY is carried out for the following control units using SCN: "Electronic ignition lock control unit" "Head unit" "Instrument cluster"
16	Disconnect diagnostic system
			AD00.00-P-2000-04B
	Check
17	Perform function test	See operator's manual for COMAND Online.
