Remove/install radio display - AR82.60-P-7722LW
MODEL 205, 253
Shown on model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||

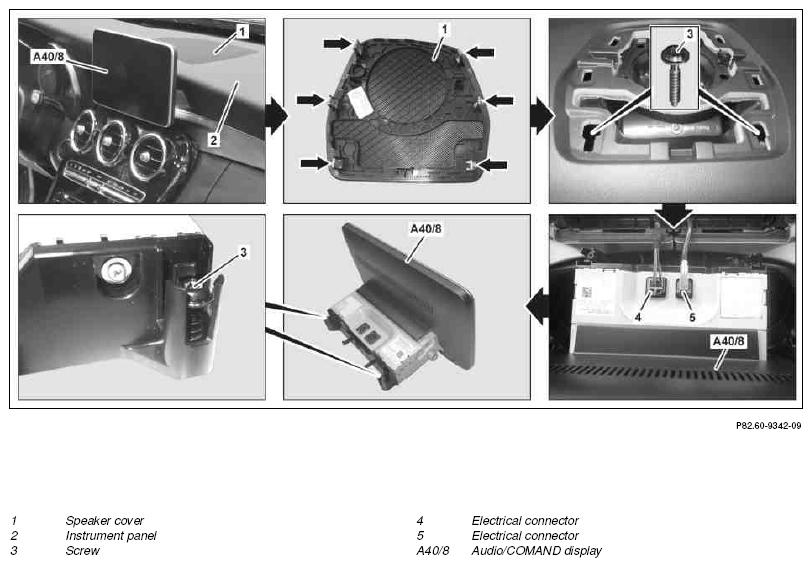

| 2 | Unclip speaker cover (1) at instrument panel (2) (arrows) | Fig 2 | |
| 3 | Remove screws/bolts (3) from Audio/COMAND display (A40/8) | ||
| 4 | Pull out Audio/COMAND display (A40/8) until electrical connectors (4 and 5) are accessible | ||
| 5 | Disconnect electrical connectors (4 and 5) from Audio/COMAND display (A40/8) | ||
| 6 | Remove Audio/COMAND display (A40/8) from vehicle | The screws/bolts (3) must be moved to the upper assembly position on the Audio/COMAND display (A40/8) for installation. Otherwise the interior equipment may be damaged. |
|
| 7 | Install in the reverse order |
