Remove/install tuner unit - AR82.60-P-2002LWR
MODEL 205.4
with CODE 536 (SIRIUS satellite radio)
MODEL 205.4
with CODE 537 (Digital radio (DAB))
MODEL 205.4
with CODE 865 (TV tuner)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of tuner unit (A90/4) | When replacing tuner unit (A90/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove rear cargo area floor | ||
| 4 | Remove trunk recess cover | ||
| 5 | Remove control unit on 360° camera | Model 205.4 with code 501 (360° camera) with code 536 (SIRIUS satellite radio) Model 205.4 with code 501 (360° camera) with code 537 (Digital radio (DAB)) Model 205.4 with code 501 (360° camera) with code 865 (TV tuner) |
AR54.65-P-0012LWR |

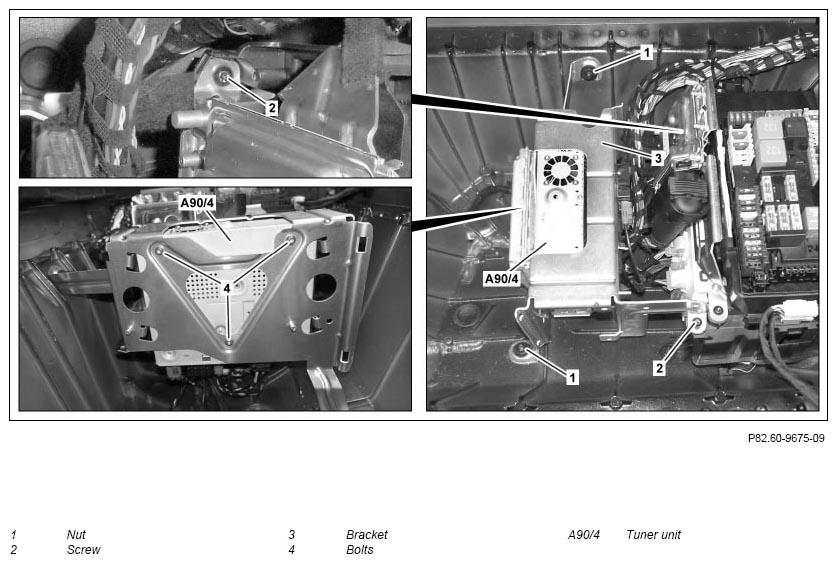

| 6 | Unscrew screws/bolts (4) and lower tuner unit (A90/4) | ||
| 7 | Unscrew nuts (1), remove screws/bolts (2) and place bracket (3) to one side | ||
| 8 | Disconnect electrical connectors on the tuner unit (A90/4) | ||
| 9 | Remove tuner unit (A90/4) | ||
| 10 | Install in the reverse order |
