Remove/install 360 degree camera control unit - AR54.65-P-0012LWR
MODEL 205.4
with code 501 (360° camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of 360° camera control unit (N148) | When replacing 360° camera control unit (N148). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove rear cargo area floor | ||
| 4 | Remove trunk recess cover | ||

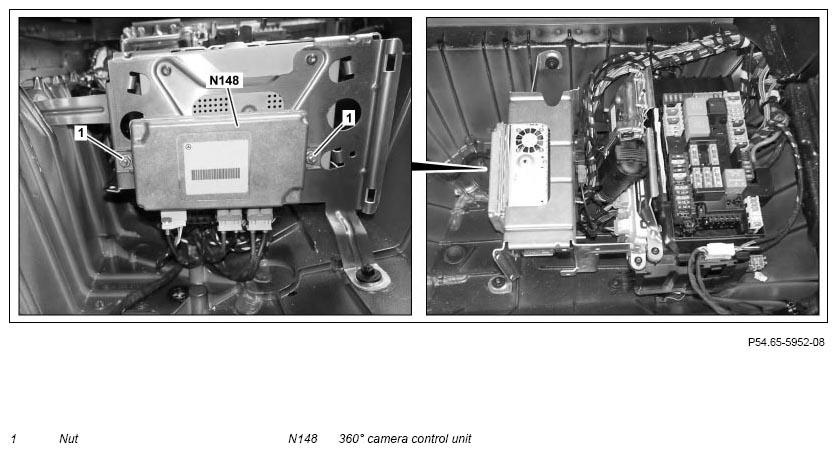

| 5 | Unscrew nuts (1) | ||
| 6 | Remove 360° camera control unit (N148) and disconnect its electrical connectors | ||
| 7 | Install in the reverse order | ||
| 8 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the 360° camera control unit (N148) was replaced. | |
| AD00.00-P-2000-04B |
