Remove/install telematics services communications module control unit - AR82.85-P-0020LW
MODEL 205.0/2 with CODE 350 (Ecall emergency call system, Europe) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))
MODEL 205.0/2 with CODE B54 (Live Traffic Information) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))
MODEL 205.0/2 with CODE B57 (KOM Module battery charging) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin))
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of telematics services communications module (N112/1) | When replacing telematics services communications module (N112/1). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3.1 | Remove cover in trunk at front | MODEL 205.0 with CODE 350 (Ecall emergency call system, Europe) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.0 with CODE B54 (Live Traffic Information) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.0 with CODE B57 (KOM Module battery charging) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) |
|
| AR68.30-P-4600LW | |||
| 3.2 | Remove front section of load compartment floor | MODEL 205.2 with CODE 350 (Ecall emergency call system, Europe) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.2 with CODE B54 (Live Traffic Information) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) MODEL 205.2 with CODE B57 (KOM Module battery charging) without CODE ME06 (Hybrid drive 50-KW variant (incl. plugin)) |
|
| AR68.20-P-4811LW | |||

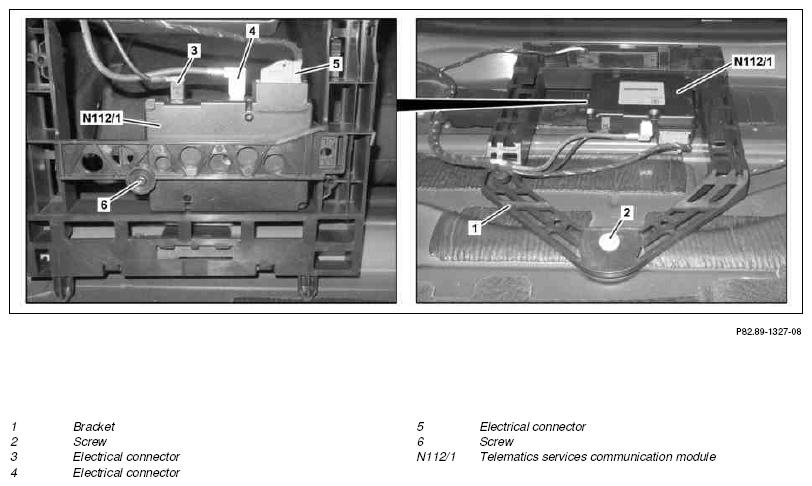

| 4 | Remove screw/bolt (2) and remove bracket (1) toward rear | ||
| 5 | Disconnect electrical connectors (3, 4, 5) | ||
| 6 | Remove screw/bolt (6) and remove telematics services communications module (N112/1) | ||
| 7 | Install in the reverse order |
