Remove paneling in trunk - AR68.30-P-4600LW

MODEL 205.0/1

Shown on MODEL 205.0 except CODE ME06 (Hybrid drive 50 KW variant (Including Plug-in))

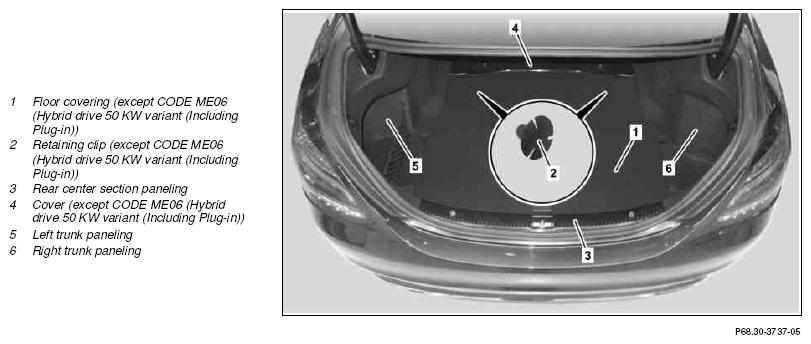

Fig 1: Trunk Paneling Remove/Install Components - Shown On Model 205.0 (1 Of 2)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

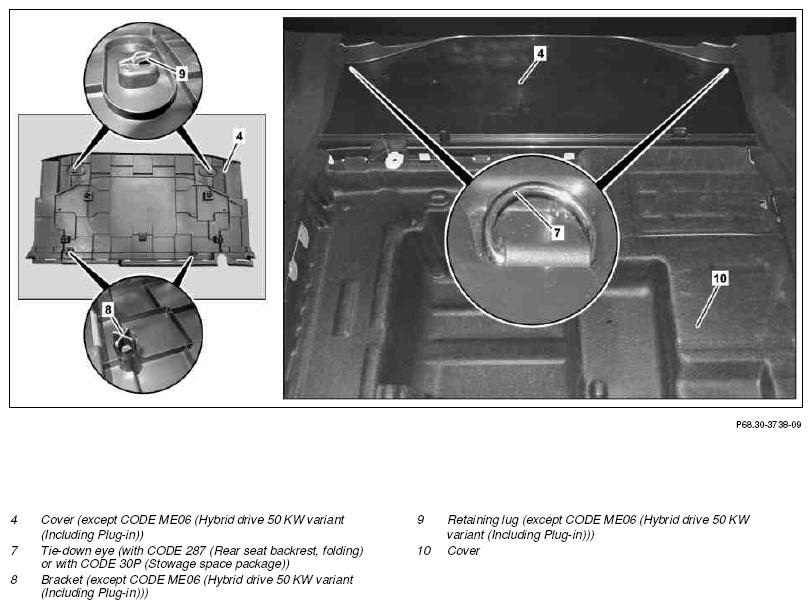

Fig 2: Trunk Paneling Remove/Install Components - Shown On Model 205.0 (2 Of 2)

Courtesy of MERCEDES-BENZ TRUCK CO., INC.

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Open luggage compartment lid
2.1	Remove retaining clips (2) and floor covering (1)	Model 205.0/1 except code ME06 (Hybrid drive 50-KW variant (incl. plugin))
		Clip remover	Figure
2.2	Remove front section of load compartment floor	Model 205.0/1 with code ME06 (Hybrid drive 50-KW variant (incl. plugin))
			AR68.20-P-4811LW
3	Remove rear center section paneling (3)		AR68.30-P-4785LW
4	Remove tie-down eyes (7)	Model 205.0/1 with code 287 (Folding rear seat backrests) Model 205.0/1 with code 30P (Stowage Space package)
		Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
5	Pull paneling (10) out of cover (4) and unclip cover (4)	Model 205.0/1 except code ME06 (Hybrid drive 50-KW variant (incl. plugin))
		Mounting wedge	Figure
6	Remove cover (4) toward rear	Model 205.0/1 except code ME06 (Hybrid drive 50-KW variant (incl. plugin)) Ensure that retaining tabs (9) and brackets (8) are seated correctly.
7	Remove left trunk paneling (5) and right trunk paneling (6)		AR68.30-P-4800LW
8	Remove cover (10)
9	Install in the reverse order
