Remove/install tail lamp - AR82.10-P-4905LW
MODEL 205.0/1

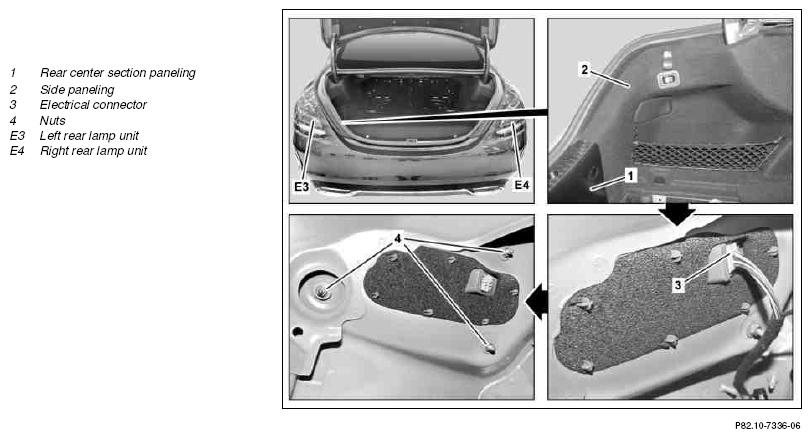

Shown on left rear lamp unit (E3)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear center section paneling (1) | AR68.30-P-4785LW | |
| 2 | Detach side paneling (2) in area of left rear lamp unit (E3) or right rear lamp unit (E4) until nuts (4) are accessible | AR68.30-P-4800LW | |
| 3 | Disconnect electrical connector (3) from left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 4 | Unscrew nuts (4) | ||
| 5 | Remove left rear lamp unit (E3) or right rear lamp unit (E4) | Elastomer bearing on the fender can be damaged. |
|
| 6 | Install in the reverse order |
