Remove/install rear axle level sensor - AR82.10-P-0005LW

MODEL 205

Shown on left side of vehicle

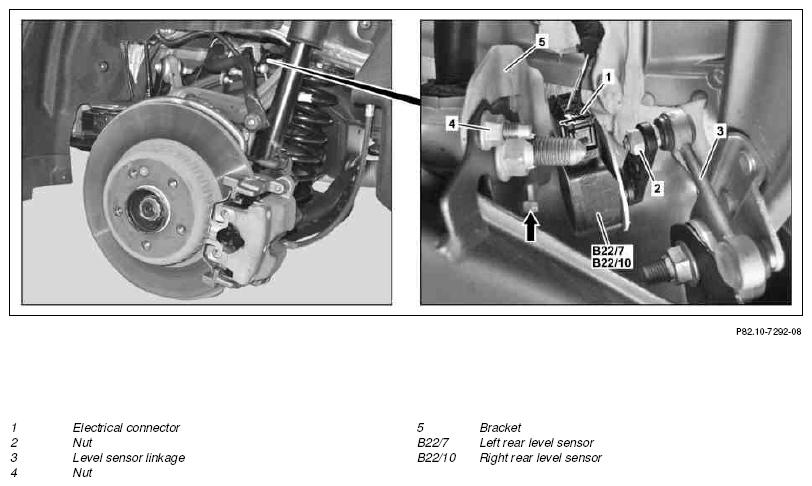

Fig 1: Rear Axle Level Sensor Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

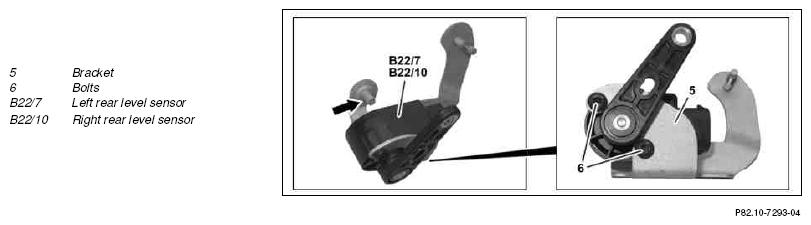

Fig 2: Rear Axle Level Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Lift vehicle on vehicle lift		AR00.60-P-1000LW
2	Disconnect electrical connector (1) from left rear level sensor (B22/7) or from right rear level sensor (B22/10)
3	Unscrew nut (2) and unhook level sensor linkage (3) at left rear level sensor (B22/7) or at right rear level sensor (B22/10)	Do not twist left rear level sensor (B22/7) or right rear level sensor (B22/10). Pay attention to installation position.
4	Unscrew nut (4) and remove left rear level sensor (B22/7) or right rear level sensor (B22/10) with bracket (5)	Do not bend bracket (5). Ensure that retaining lug (arrow) at bracket (5) is seated correctly in corresponding opening in rear axle carrier.
5	Remove screws/bolts (6) and remove left rear level sensor (B22/7) or right rear level sensor (B22/10) from bracket (5)	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
6	Install in the reverse order
7	Calibrate left rear level sensor (B22/7) or right rear level sensor (B22/10) using diagnostic system	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
			AD00.00-P-2000-04B
8	Check headlamp adjustment	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
			AP82.10-P-8261CAA
