Lift/jack up vehicle - AR00.60-P-1000LW
MODEL 205
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident caused by vehicle starting off on its own when jacked up. Risk of injury caused by rotating parts when working on running engine or drive train. | Ensure that jack stands are in a safe condition. An authorized person must occupy the driver's seat. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0008-01A | |
| Lift/lower vehicle | |||

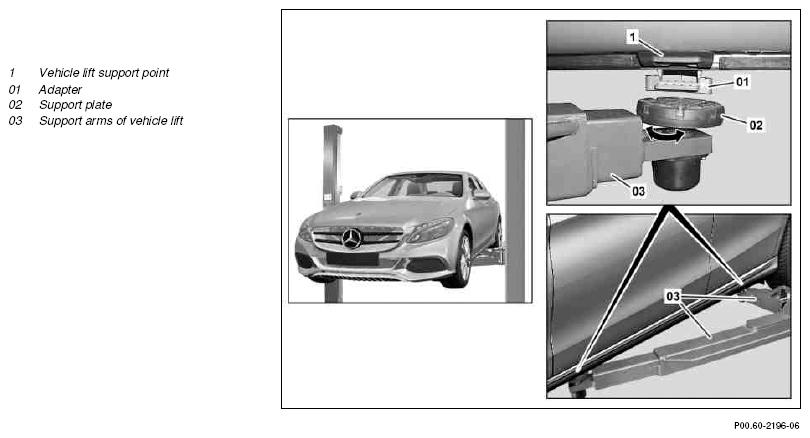

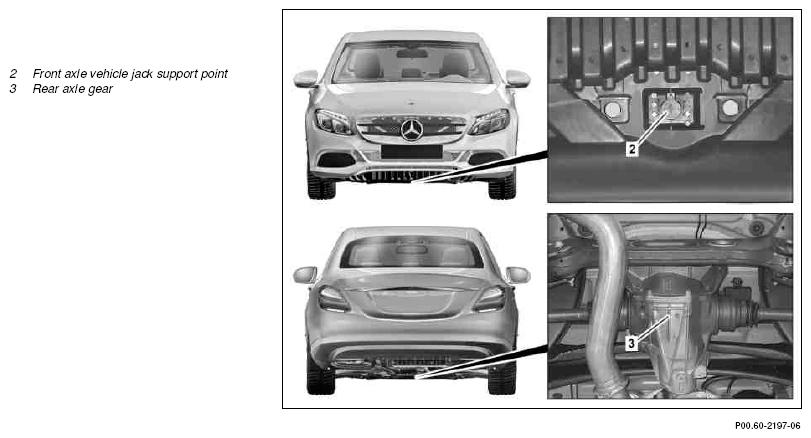

| 1 | Clip adapter (01) into vehicle lift support points (1) at longitudinal members | When removing underfloor paneling | |
| Fig 3 | |||
| 2 | Adjust support plates (02) of support arms of vehicle lift (03) to height of vehicle | Two-column lift 2.5 - 3.5 t electrohydraulic |
|
| 3 | Raise vehicle with vehicle lift | ||
| 4 | Secure the vehicle against tilting and toppling | Before removal of major assemblies (e.g. engine, transmission, axles) or when performing work during which the vehicle can lose its hold on the support plates (02) of the vehicle lift. | |
| AR00.60-P-0100CW | |||
| 5 | Lower vehicle in reverse order | ||
| Jack up/lower vehicle | |||
| 6 | Lift vehicle with inspection pit lift or floor jack | Pit jack, hydraulic-pneumatic - over 7.0 t - see 01.0 Trolley jack |
|
| 7 | Secure the vehicle against tilting and toppling | ||
| 8 | Lower vehicle in reverse order |
