Remove/install headlamp unit - AR82.10-P-4730LW
MODEL 205
Shown on left side of vehicle
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Carry out initial startup of left front lamp unit (E1) or right front lamp unit (E2) | MODEL 205 with CODE 631 (Headlamps, LED, static, left-hand traffic) MODEL 205 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (LED Light package) When replacing the left front lamp unit (E1) or the right front lamp unit (E2). |
|
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3.1 | Detach radiator grille and bumper in area of left front lamp unit (E1) or right front lamp unit (E2) | When removing left front lamp unit (E1) or right front lamp unit (E2). | |
| AR88.20-P-2000LW | |||
| 3.2 | Remove front bumper | When removing left front lamp unit (E1) and right front lamp unit (E2). | |
| AR88.20-P-2000LW | |||

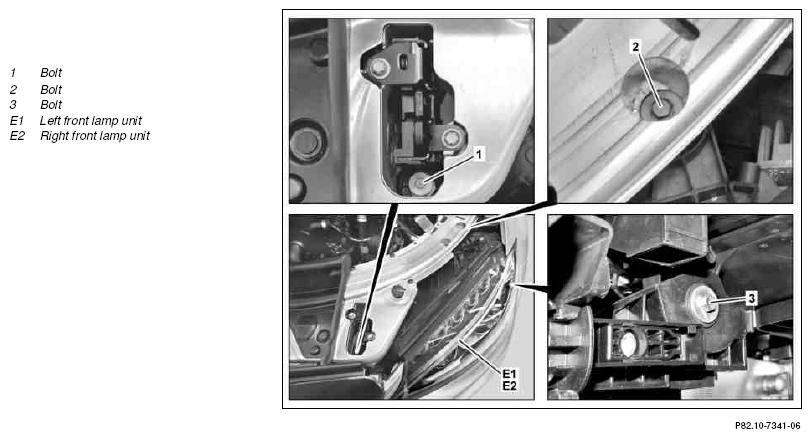

| 4 | Remove screws/bolts (1, 2, 3) | ||
| 5 | Use adhesive tape to mask off left front lamp unit (E1) or right front lamp unit (E2) in area of fender | ||

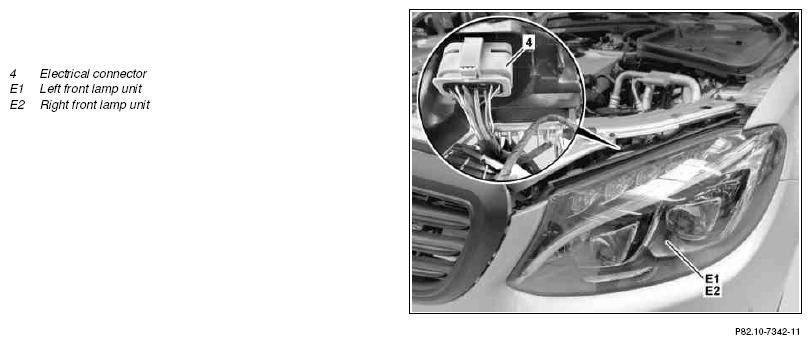

| 6 | Remove left front lamp unit (E1) or right front lamp unit (E2) far enough to gain access to the electrical connector (4) | ||
| 7 | Disconnect electrical connector (4) from left front lamp unit (E1) or right front lamp unit (E2) | ||
| 8 | Remove left front lamp unit (E1) and right front lamp unit (E2) | ||
| 9 | Remove left front lamp unit LED module or right front lamp unit LED module | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 205 with CODE 631 (Headlamps, LED, static left-hand traffic) MODEL 205 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4656LW | ||
| 10 | Remove left front actuation module, LED exterior lighting or right front actuation module, LED exterior lighting | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4650LW | ||
| 11 | Remove left headlamp control unit and right headlamp control unit | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 205 with CODE 631 (Headlamps, LED, static left-hand traffic) MODEL 205 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4660LW | ||
| Install | |||
| 12 | Install left headlamp control unit or right headlamp control unit | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 205 with CODE 631 (Headlamps, LED, static left-hand traffic) MODEL 205 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4660LW | ||
| 13 | Install left front actuation module, LED exterior lighting or right front actuation module, LED exterior lighting | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4650LW | ||
| 14 | Install left front lamp unit LED module or right front lamp unit LED module | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| MODEL 205 with CODE 631 (Headlamps, LED, static left-hand traffic) MODEL 205 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4656LW | ||
| 15 | Use adhesive tape to mask off left front lamp unit (E1) or right front lamp unit (E2) in area of fender | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| 16 | Connect electrical connector (4) to left front lamp unit (E1) or right front lamp unit (E2) | ||
| 17 | Install left front lamp unit (E1) and right front lamp unit (E2) | ||
| 18 | Screw in screws/bolts (1, 2, 3) up to contact surface | ||
| 19.1 | Install front bumper | When installing left front lamp unit (E1) and right front lamp unit (E2). | |
| AR88.20-P-2000LW | |||
| 19.2 | Fasten radiator grille and bumper in area of left front lamp unit (E1) or right front lamp unit (E2) | When removing left front lamp unit (E1) or right front lamp unit (E2). | |
| AR88.20-P-2000LW | |||
| 20 | Tighten screws/bolts (1, 2, 3) | ||
| 21 | Remove adhesive tape from left front lamp unit (E1) or right front lamp unit (E2) | ||
| 22 | Carry out initial startup of left front lamp unit (E1) or right front lamp unit (E2) | MODEL 205 with CODE 631 (Headlamps, LED, static left-hand traffic) MODEL 205 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 205 with CODE 640 (High-performance LED) MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 205 with CODE 642 (LED Light package) When replacing the left front lamp unit (E1) or the right front lamp unit (E2). |
|
| AD00.00-P-2000-04B | |||
| 23 | Check headlamp adjustment | ||
| AP82.10-P-8260E |
