Remove/install driving lights actuation module - AR82.10-P-4650LW

MODEL 205 with CODE 640 (High-performance LED)

MODEL 205 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)

MODEL 205 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)

Shown on left side of vehicle

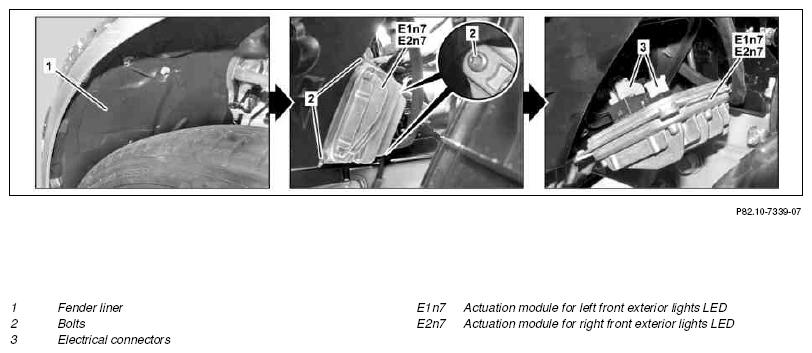

Fig 1: Driving Lights Actuation Module Remove/Install Components - Shown On Left Side Of Vehicle
G10134542NOTESREMOVINGINSTALLINGREFER TO SELF-DIAGNOSTIC SYSTEMSINSTALLATION IMPORTANTREFER TO SELF-DIAGNOSTIC SYSTEMSIMPORTANTCourtesy of MERCEDES-BENZ USA
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Connect diagnostic system and save basic data of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) Only when replacing the left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
2 Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
3 Turn left or right front wheel inwards
4 Detach front section of fender liner (1) until left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) is accessible   AR88.10-P-1300LW
5 Remove screws/bolts (2) at left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
6 Pull out left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) until electrical connectors (3) can be disconnected INSTALLATION IMPORTANT Ensure that the seal is seated correctly on left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
7 Disconnect electrical connectors (3) and remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
8 Install in the reverse order
  Initial startup
9 Perform SCN coding of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) Only when replacing the left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
AR54.21-P-0015X
10 Transfer the previously saved basic data to left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) Only when replacing the left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
11 Perform initial startup of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) Only when replacing the left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
IMPORTANT Note Data Matrix code on left front lamp unit or right front lamp unit.
