Remove/install emergency call system antenna - AR82.95-P-0017LWR
MODEL 205.4
with CODE 360 (HERMES UMTS)
MODEL 205.4
with CODE 362 (HERMES LTE)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bar extends. Do not use the cover in the area of the roll bar as a shelf for objects. |
AS91.00-Z-0003-01LCA | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

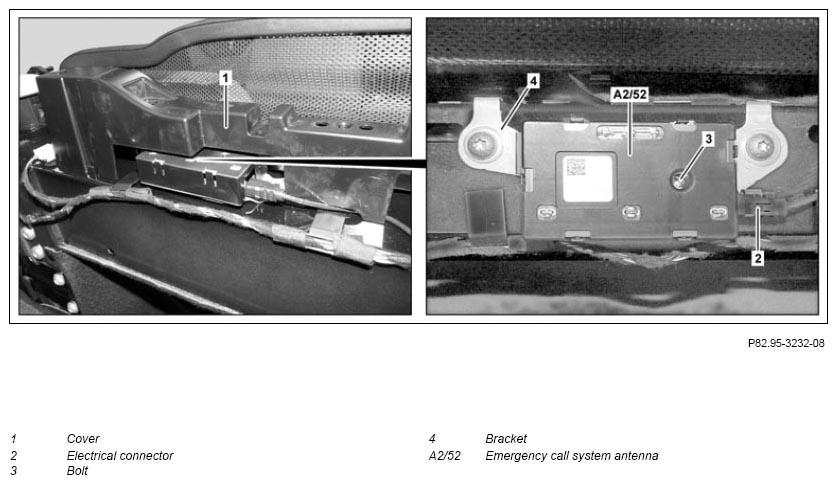

| 1 | Remove paneling from the roll bars | AR68.30-P-1380LWR | |
| 2 | Remove trim (1) | ||
| 3 | Disconnect electrical connection (2) | ||
| 4 | Unscrew bolt (3) | ||
| 5 | Unclip emergency call system antenna (A2/52) from bracket (4) and remove | ||
| 6 | Install in the reverse order |
