Remove/install control unit for emergency call system - AR82.95-P-1005LW
MODEL 205 (except 205.047/147/247)
with CODE 348 (Emergency call/assistant system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 205 (except 205.047/147/247) with code 348 (Emergency call/assistant system) with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Carry out initial startup of emergency call system control unit (N123/4) | When replacing emergency call system control unit (N123/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3.1 | Remove cover in trunk at front | Model 205.0 (except 205.047), 205.1 (except 205.147), 205.3 with code 348 (Emergency call/assistant system) |
AR68.30-P-4600LW |
| 3.2 | Remove front section of load compartment floor | Model 205.2 (except 205.247) with code 348 (Emergency call/assistant system) |
AR68.20-P-4811LW |

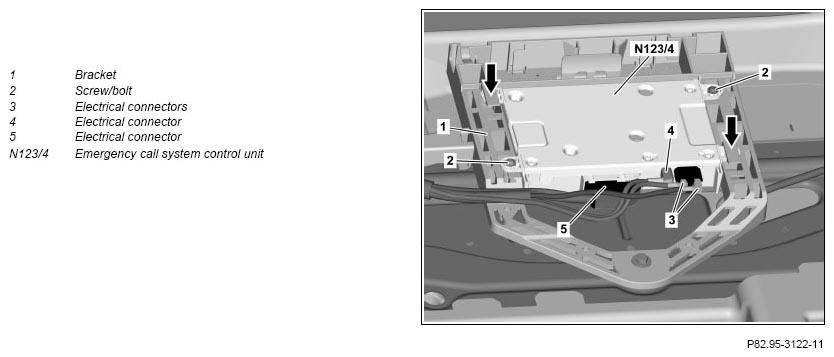

| 4 | Disconnect electrical connectors (3, 4, 5) | ||
| 5 | Remove screws/bolts (2) | ||
| 6 | Pull emergency call system control unit (N123/4) rearwards out of retaining tabs (arrow) on bracket (1) | ||
| 7 | Install in the reverse order |
