Remove/install antenna splitter - AR82.70-P-8953CLW
MODEL 205.3
with CODE 537 (Digital radio (DAB))
with CODE 865 (TV tuner)
MODEL 205.3
with CODE B24 (remote control for auxiliary heater)
with CODE B54 (Live Traffic Information)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove side paneling in left trunk | AR68.30-P-4800LW | |

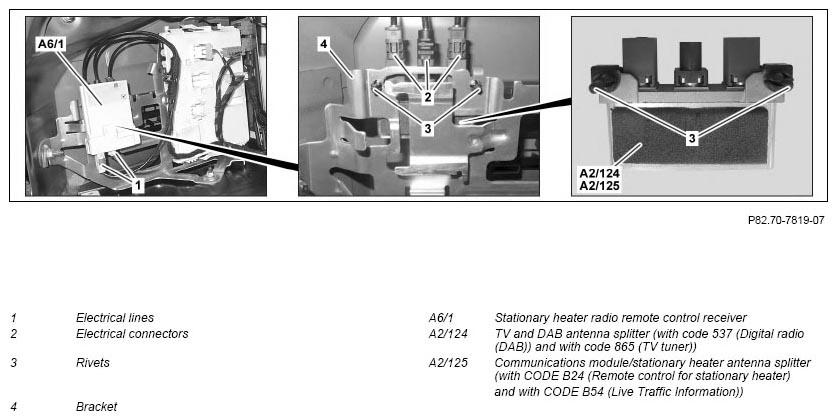

| 3 | Remove stationary heater radio remote control receiver (A6/1) and place to one side with electrical lines (1) connected | Model 205.3 with code 228 (Auxiliary heater) with code 537 (Digital radio (DAB)) with code 865 (TV tuner) with code B24 (remote control for auxiliary heater) Model 205.3 with code 228 (Auxiliary heater) with code B24 (remote control for auxiliary heater) with code B54 (Live Traffic Information) |
AR83.70-P-0003CLW |
| 4 | Separate electrical connectors (2) | ||
| 5 | Release TV and DAB antenna splitter (A2/124) or communications module/stationary heater antenna splitter (A2/125) by pressing the rivets (3) | ||
| 6 | Remove TV and DAB antenna splitter (A2/124) or communications module/stationary heater antenna splitter (A2/125) from bracket (4) | ||
| 7 | Install in the reverse order |
