Remove/install Telestart receiver - AR83.70-P-0003CLW
MODEL 205.3
with CODE 228 (Auxiliary heater)
with CODE B24 (remote control for auxiliary heater)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove side paneling in left trunk | AR68.30-P-4800LW | |

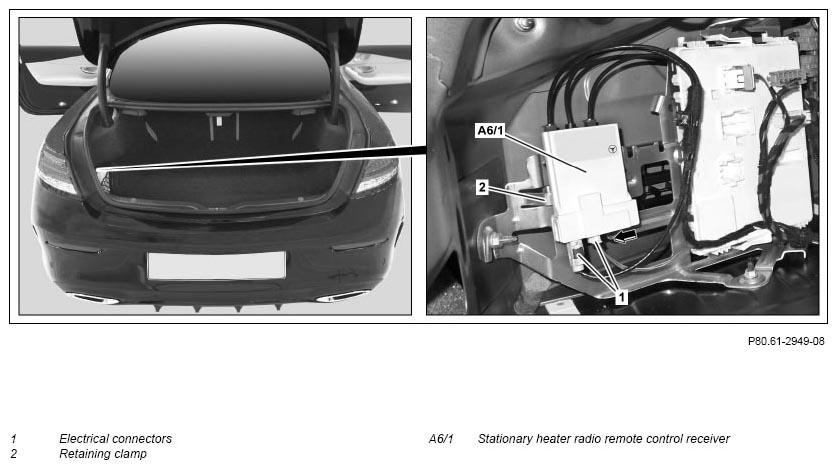

| 3 | Separate electrical connections (1) | ||
| 4 | Release retaining clamp (2) and remove stationary heater radio remote control receiver (A6/1) in direction of arrow | ||
| 5 | Install in the reverse order | ||
| 6 | Teach in stationary heater radio remote control transmitter | When replacing the stationary heater radio remote control receiver (A6/1). | AR83.70-P-0013-01LC |
