Remove/install HERMES control unit - AR82.95-P-0019LWR
MODEL 205.4
with CODE 360 (HERMES UMTS)
MODEL 205.4
with CODE 362 (HERMES LTE)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of HERMES control unit (N112/9) | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove right side paneling in trunk | AR68.30-P-4800LWR | |

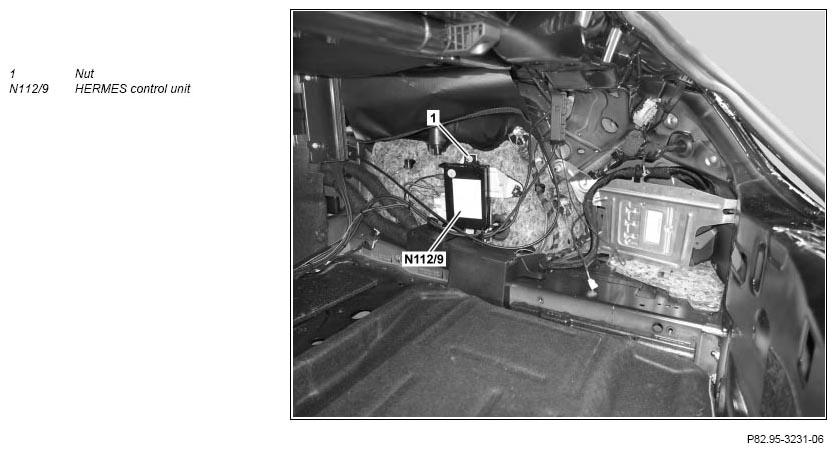

| 4 | Unscrew nut (1) | ||
| 5 | Remove HERMES control unit (N112/9) and disconnect its electrical connectors | ||
| 6 | Install in the reverse order |
