Remove/install left front or right rpm sensor - AR42.30-P-0712LW
MODEL 205
MODEL 253

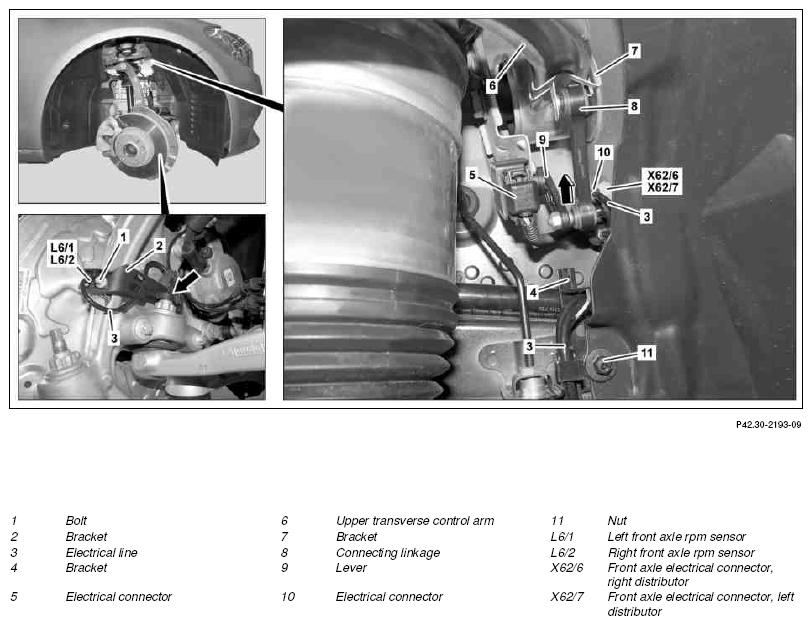

Shown on right side of vehicle on model 205 with code 489 (AIRmatic)
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove corresponding complete wheel | AR40.10-P-1101A | |
| 3 | Remove bolt (1) | ||
| 4 | Lift bracket (2) over nut (arrow), pull off left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2), pass electrical line (3) out of bracket (2) and hang bracket (2) to one side | ||
| 5 | Disconnect electrical connector (5) on the level sensor | If installed. | |
| 6 | Unclip bracket (7) from upper transverse control arm (6) | If installed. | |
| 7 | Swing connecting linkage (8) and lever (9) upwards and fasten bracket (7) to upper transverse control arm (6) using a cable tie | If installed. | |
| 8 | Unlock and disconnect the electrical connector (10) at the front axle electrical connection, right distributor (X62/6) or the front axle electrical connection, left distributor (X62/7) | ||
| 9 | Unscrew the nut (11) of the fender interior trim | ||
| 10 | Open bracket (4) and remove electrical line (3) from the bracket (4) | ||
| 11 | Expose electrical line (3) of the left front axle rpm sensor (L6/1) or the right front axle rpm sensor (L6/2) | ||
| 12 | Remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) | ||
| 13 | Install in the reverse order | ||
| 14 | Read out fault memory using the diagnostic system and delete if necessary | Model 205 Model 253 |
|
| Model 205 | AD00.00-P-2000-04B |
