Remove/check/install front axle brake pads - AR42.10-P-1610LWA

MODEL 205 4-piston fixed-caliper brake

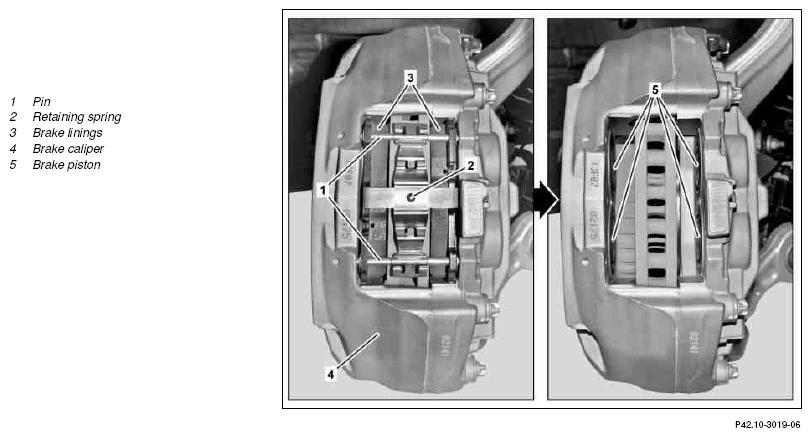

Shown on MODEL 205.008 (except CODE P31 (AMG Exterior Sports package) on left side of vehicle

Fig 1: Front Axle Brake Pads Remove/Install Components - Shown On Model 205.008

Courtesy of MERCEDES-BENZ USA

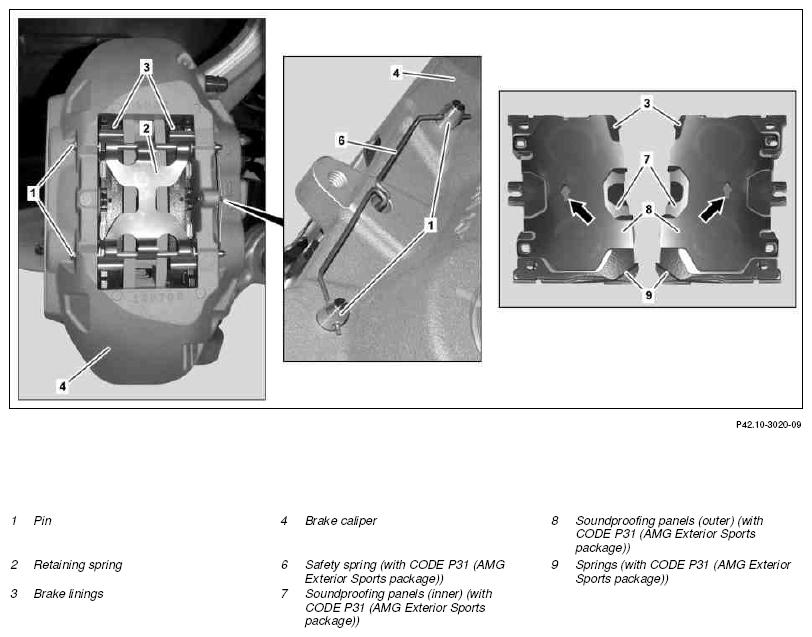

Shown on MODEL 205.064 (with CODE P31 (AMG Exterior Sports package) on left side of vehicle

Fig 2: Front Axle Brake Pads Remove/Install Components - Shown On Model 205.064

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on installing brake wear indicator contact sensors		AH42.10-P-0003-01CW
	Remove/install
1	Remove cover above brake fluid expansion reservoir
2	Clean area around cap on expansion reservoir for brake fluid	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	This prevents the expansion reservoir overflowing when the brake piston (5) is pushed back.
4	Remove front wheels		AR40.10-P-1101A
5	Disconnect right front brake wear sensor from electrical connector
6	Unhook safety spring (6) from pin (1) and remove	Model 205 with code P31 (AMG Exterior Sports package) 4-piston fixed-caliper brake
7	Use punch to knock out pin (1) and remove retaining spring (2)	Pound in pin (1) up to end stops. Check retaining spring (2) is correctly seated.
8	Release brake pads (3) from brake piston (5)	Model 205 except code P31 (AMG Exterior Sports package) 4-piston fixed-caliper brake The brake linings (3) are bonded.
9	Remove brake linings (3)	Model 205 except code P31 (AMG Exterior Sports package) 4-piston fixed-caliper brake Installation:  The released bonding means that the brake linings (3) have to be replaced. Remove protective foils from bonding surfaces of brake linings (3). Do not apply brake paste or lubricants to the brake linings (3) and brake calipers (4). Only sets of brake linings (3) approved by Mercedes-Benz may be installed.
10	Remove soundproofing panels (7, 8) and springs (9) from brake linings (3)	Model 205 with code P31 (AMG Exterior Sports package) 4-piston fixed-caliper brake When replacing the brake linings (3). Install components in correct positions. The arrows (arrows) when installed must face towards the direction of rotation for the brake disk, and the springs (9) must be mounted to the underside of the brake linings (3).
	Check
11	Check pin (1) and retaining spring (2) for damage and condition	If there are problems: ↓ Replace pin (1) or retaining spring (2).
12	Check condition of soundproofing panels (7, 8) and springs (9)	Model 205 with code P31 (AMG Exterior Sports package) 4-piston fixed-caliper brake If there are problems: ↓ Replace soundproofing panels (7, 8) or springs (9).
13	Check brake linings (3) for wear and that they are in good condition	Model 205 with code P31 (AMG Exterior Sports package) 4-piston fixed-caliper brake
			AP42.10-P-4252CAA
		In case of damage or excessive wear: ↓ Replace brake linings (3). Replace brake linings (3) as a complete set only.
14	Check brake disk for wear and condition
			AP42.10-P-4256EW
		In case of damage or excessive wear: ↓ Replace brake disk.
			AR42.10-P-0220EWE
		Replace brake disks as a complete set only.
15	Check brake caliper (4) and dust boots of brake piston (5) for leaktightness and damage	If there are problems: ↓ Replace brake caliper (4).
			AR42.10-P-0070LWA
16	Press back brake piston using resetting device (5)	Secure remaining brake piston (5) using two wedges against slipping out.
		Resetting device	Figure
		Wedge If brake pistons (5) are sluggish: ↓ Replace brake caliper (4).	Fig 3
			AR42.10-P-0070LWA
	Clean
17	Clean contact surfaces of brake linings (3) on brake caliper (4) and brake piston (5)	Do not use sharp-edged or pointed objects. Otherwise, the brake caliper (4) or the dust boots of the brake piston (5) may be damaged. Model 205 except code P31 (AMG Exterior Sports package) 4-piston fixed-caliper brake Adhesive residue must always be completely removed from the contact surfaces on the brake piston (5).
		Assembly cleaner	*BR00.45-Z-1028-04A
18	Pull right front brake wear sensor out of pad backing plate of brake lining (3)	When replacing the brake linings (3) or replacing the right front brake wear sensor.
19	Install in the reverse order
20	Operate the brake pedal several times until brake linings (3) contact the brake disks	Firm resistance should be noticeable at the brake pedal.
	Check
21	Check/correct brake fluid level in expansion reservoir
			AP42.10-P-4210CAA
22	Carry out brake test on the test stand
			AP42.00-P-4290BA

Fig 3: Identifying Wedge (601 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA
