Remove/check/install front axle brake pads - AR42.10-P-1610LW
MODEL 205 1-piston floating caliper brake
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on installing brake wear indicator contact sensors | AH42.10-P-0003-01CW | ||
| Remove/install | |||
| 1 | Remove cover above brake fluid expansion reservoir | ||
| 2 | Clean area around cap on expansion reservoir for brake fluid | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid | ||
| 4 | Remove front wheels | AR40.10-P-1101A | |
| 5 | Detach electrical line of front right brake wear sensor (S10/2) from bracket (1) | ||
| 6 | Detach front right brake wear sensor (S10/2) from electrical connection | ||
| 7 | Unscrew bolt (2) | *BA42.10-P-1005-10W | |
| 8 | Release outer brake lining (6) from brake caliper (4) | ||
| 9 | Fold back brake caliper (4) | Do not subject the brake hose and electrical line to tension and do not kink them. The brake hose and the electrical line can otherwise be damaged. |
|
| 10 | Remove brake linings (6) | Do not apply brake paste or lubricants to the brake linings (6) and brake caliper support (5). |
|
| 11 | Remove spring steel sheets from brake caliper support (5) | ||
| Check | |||
| 12 | Check brake disk for wear and condition | ||
| AP42.10-P-4256EW | |||
| In case of damage or excessive wear: ↓ Replace brake disk. |
|||
| AR42.10-P-0220EWE | |||
| 13 | Check brake caliper (4) and dust boot of brake piston (7) for leaktightness and damage | If there are problems: ↓ Replace brake caliper (4). |
|
| AR42.10-P-0070LW | |||
| 14 | Press back brake piston (7) using pusher tool (01) | If the brake piston (7) is difficult to move: ↓ Replace brake caliper (4). |

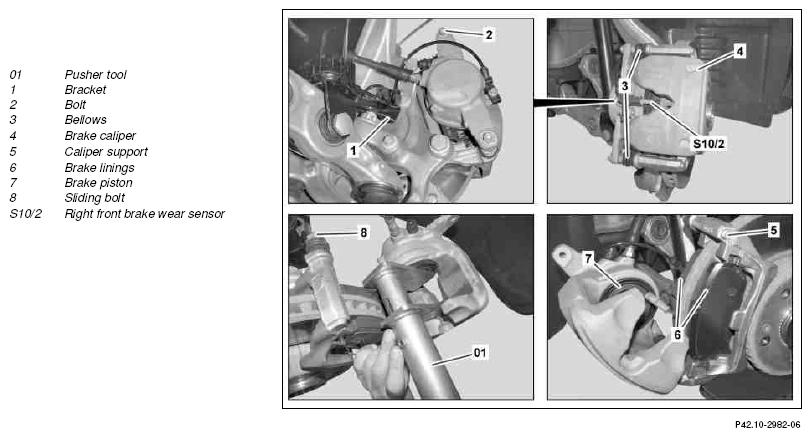

Fig 2 |
| AR42.10-P-0070LW | |||
| 15 | Check boots (3) and brake caliper support (5) for damage | If there are problems: ↓ Replace brake caliper support (5). |
|
| AR42.10-P-0070LW | |||
| 16 | Check sliding bolt (8) for damage and ease of movement | If there are problems: ↓ Replace brake caliper support (5). |
|
| AR42.10-P-0070LW | |||
| Clean | |||
| 17 | Clean contact surfaces of brake linings (6) on brake caliper (4) and on brake caliper support (5) | Do not use sharp-edged or pointed objects. Otherwise, the dust boot, brake caliper (4) or the brake caliper support (5) may be damaged. |
|
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| 18 | Pull right front brake wear sensor (S10/2) out of pad backing plate of brake lining (6) | ||
| 19 | Install in the reverse order | ||
| 20 | Operate the brake pedal several times until brake linings (6) contact the brake disks | ||
| Check | |||
| 21 | Check/correct brake fluid level in expansion reservoir | ||
| AP42.10-P-4210CAA | |||
| 22 | Carry out brake test on the test stand | ||
| AP42.00-P-4290BA |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 205 (except 205.086/087/286/287/386/387/486/487) | |
|---|---|---|---|
| BA42.10-P-1005-10W | Guide pin to brake caliper support | Nm | 35 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
